Miele H 818 - Hob Unit Fitting and Securing

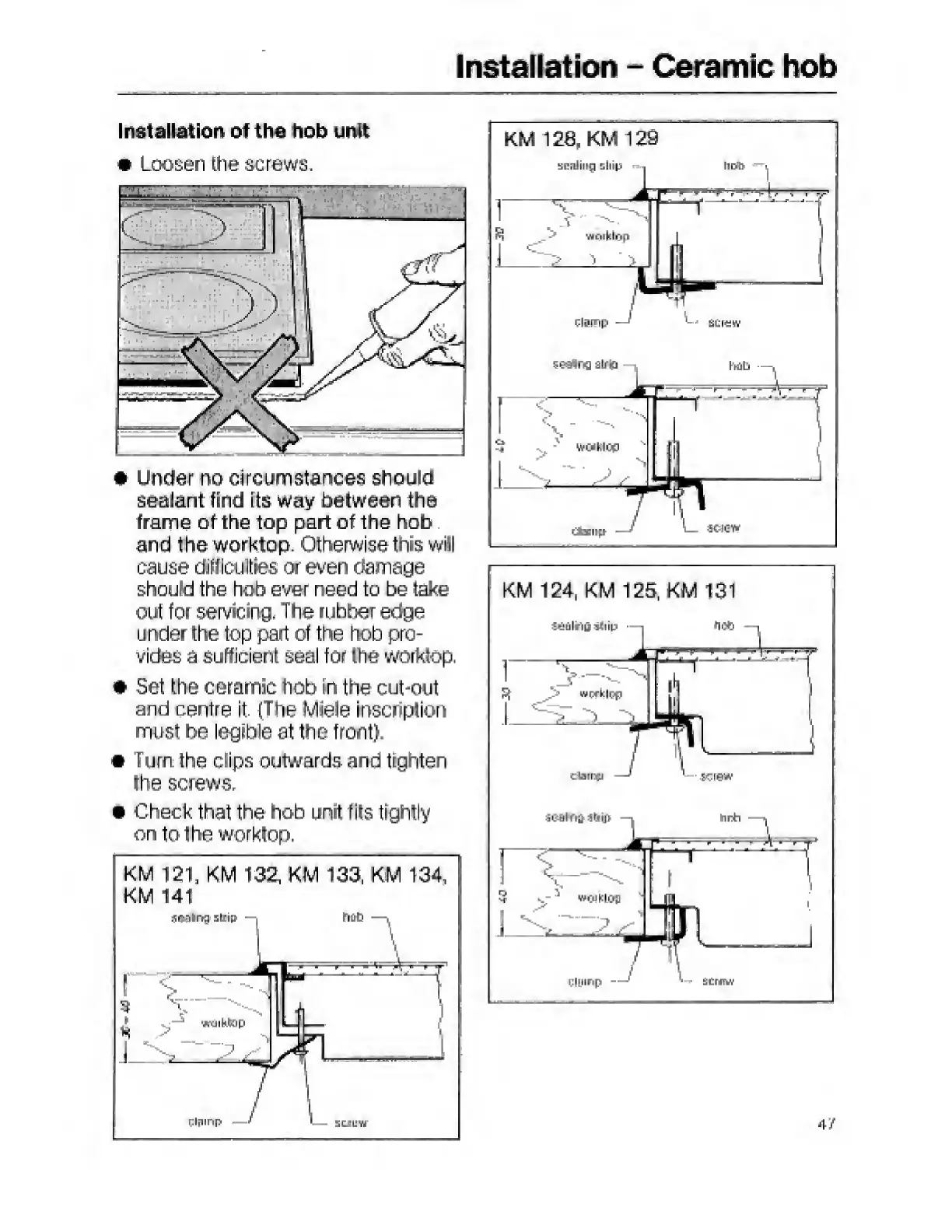

Installation of the hob unit
• Loosen the screws.
• Under no circumstances should
sealant find its way between the
frame of the top part of the hob
and the worktop. Otherwise this will
cause difficulties or even damage
shoufd the hob ever need to be take
out for servicing. The rubber edge
under the top part of the hob pro¬
vides a sufficient seal for the worktop.
• Set the ceramic hob in the cut-out
and centre it, {The Mieie inscription
must be legible at the front)
• Turn the clips outwards and tighten
the screws,
« Check that the hob unit fits tightly
on to I he worktop.
- Ceramic hob
4 /
