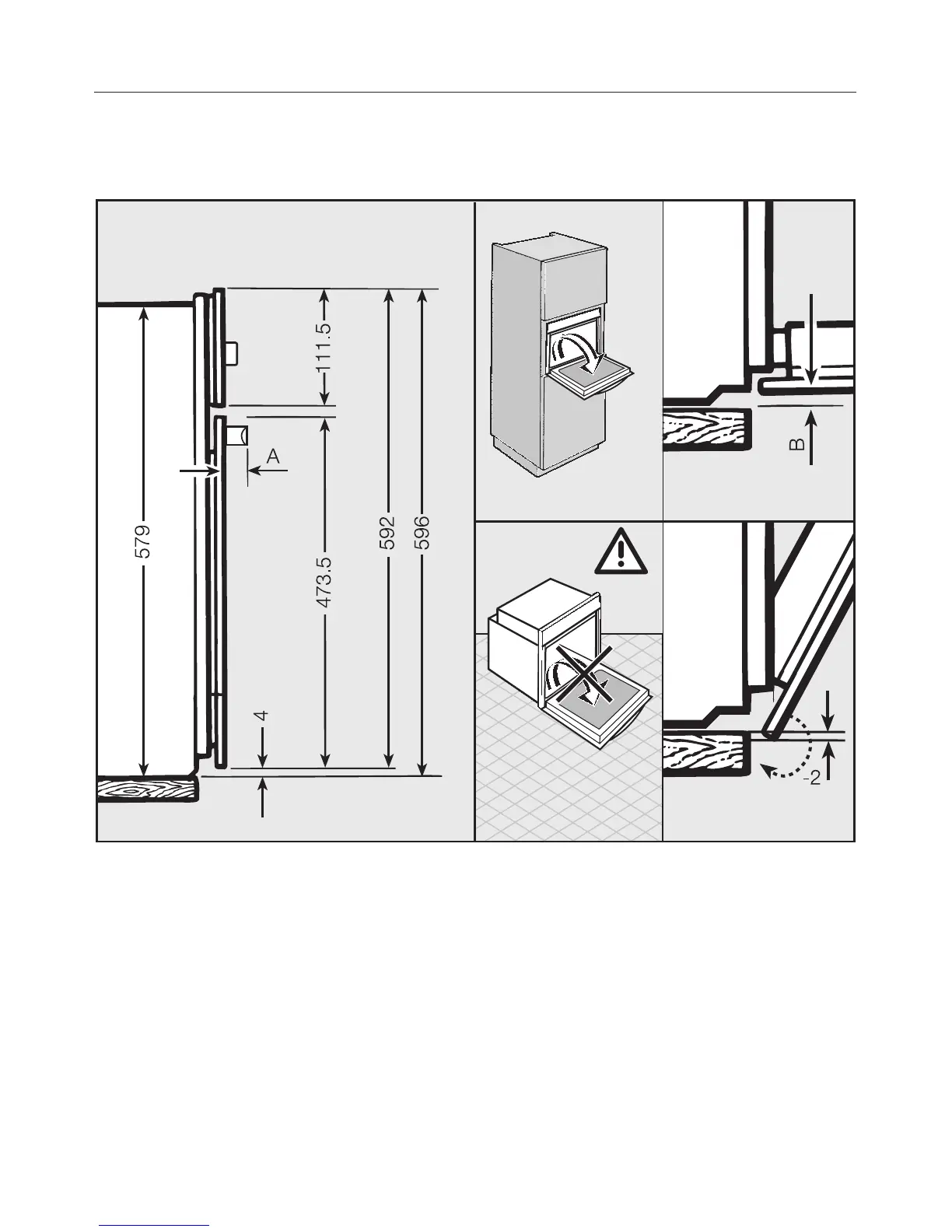

Front dimensions

Dimensions are given in mm.

A H 61xx: 45 mm

H 62xx: 42 mm

B Ovens with glass front: 2.2 mm

Ovens with metal front: 1.2 mm

Building-in diagrams

112
