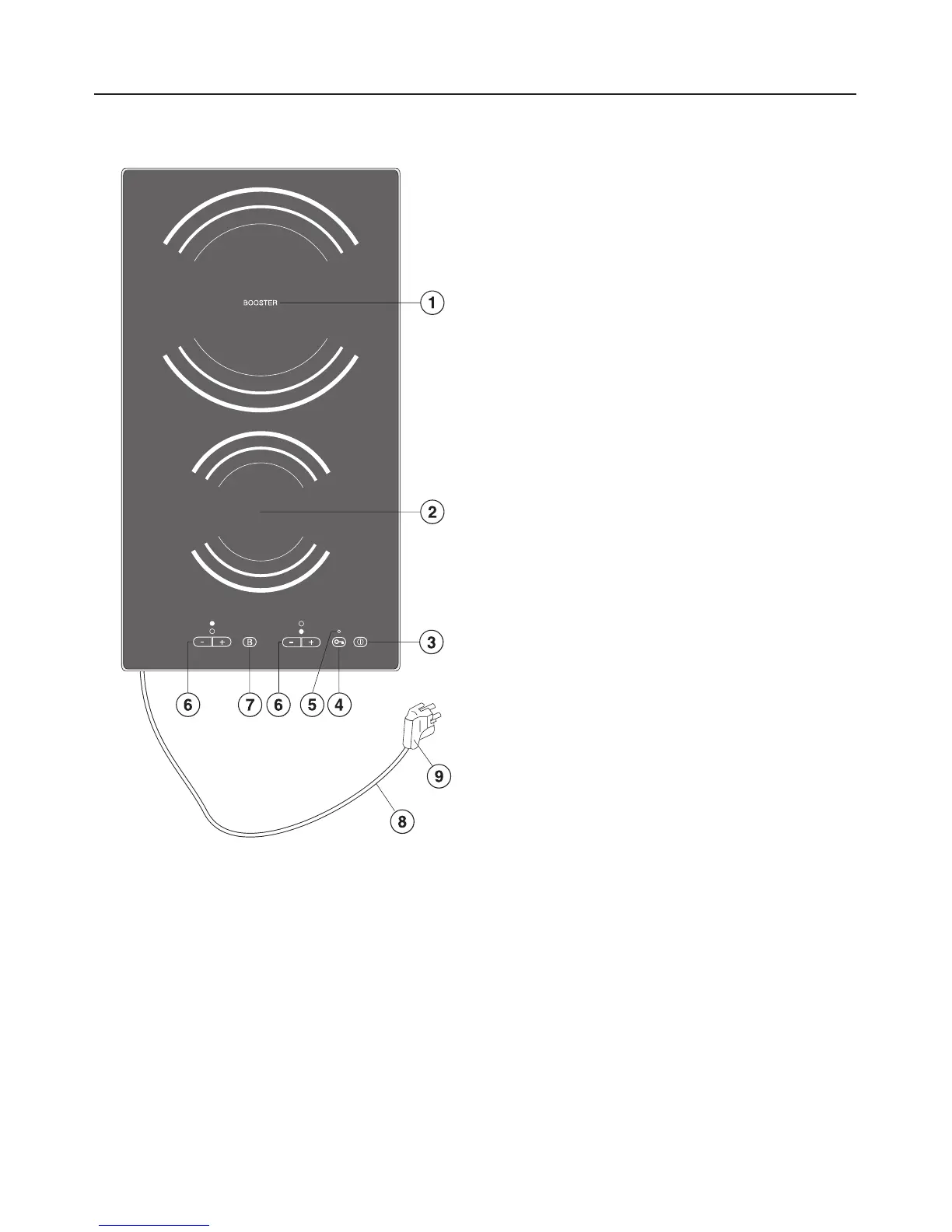

Hob Cooking zones
a Rear cooking zone
(Ø 16 / 19.5 / 23 cm;
Normal power level / with Booster
2200 W / 3000 W)
b Front cooking zone
(Ø10/13/16cm;
Normal power level / when rear
Booster switched on 1400 W /
600 W)
Control panel
c Hob ON / OFF sensor switch
d Sensor switch for safety lock
e Safety lock indicator lamp
f Cooking zone controls
g Sensor switch for Booster function on
the rear cooking zone
h Mains cable
i Plug
(Depending on country of
destination, the appliance may be
supplied with or without a plug. The
plug shown is for illustration only).
Description of the appliance
3
