Solid wood, tiled and glass
worktops
Preparing the worktop
a Worktop
b Hob
c Gap
d Wooden frame 13 mm
(to be provided on site)
As the ceramic glass and the
worktop cut-out have a certain
dimensional tolerance, the size of
gap c can vary (min. 1 mm).
^
Make the worktop cut-out as shown
in "Building-in dimensions".
Observe the safety distances (see
"Safety instructions for installation").
^

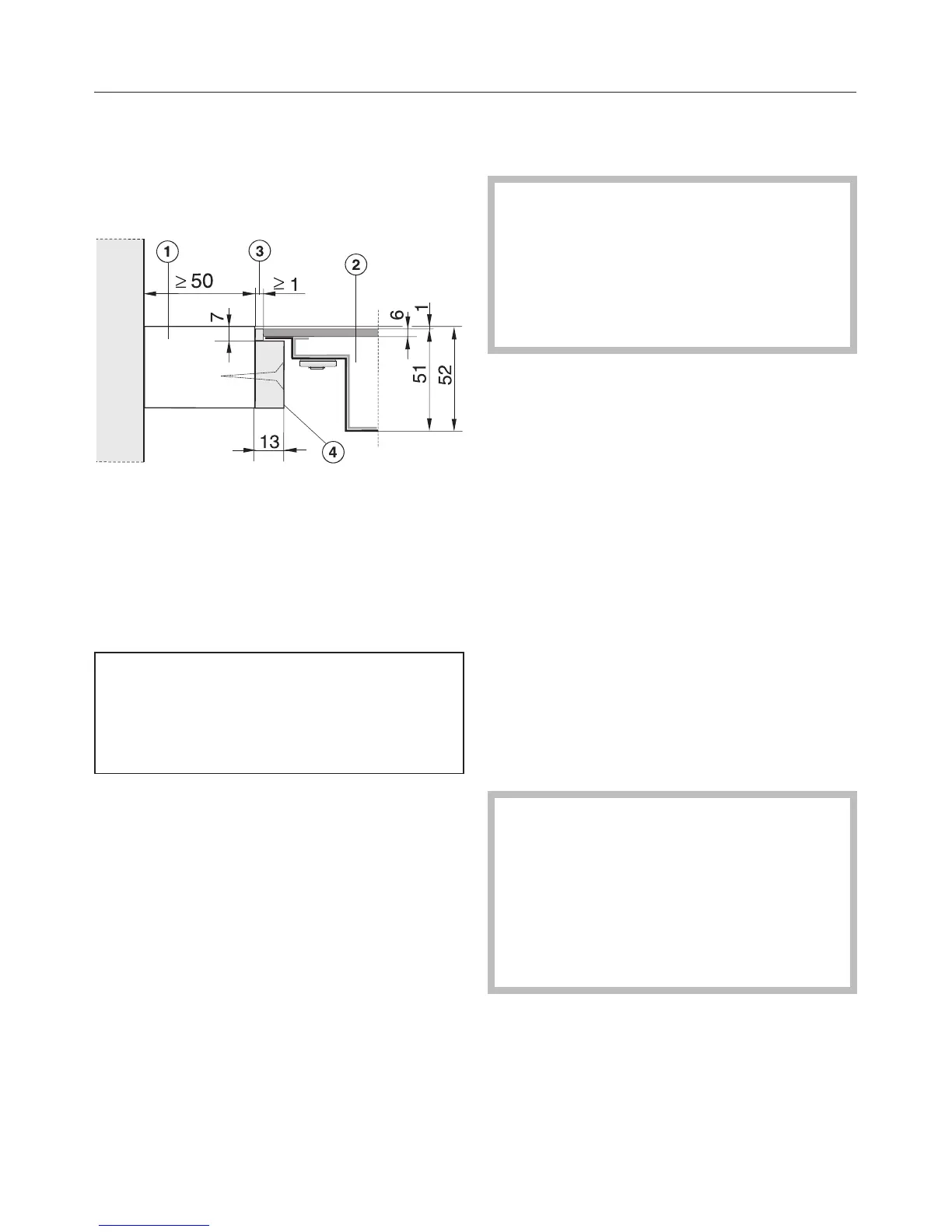

Fix the wooden frame d 7mm
below the top edge of the worktop
(see diagram).
Connecting the mains cable to the
appliance
The mains cable must only be
connected to the appliance by a
qualified and competent electrician
in strict accordance with current
local and national safety regulations
(BS 7671 in the UK).
^
Follow the instructions in the wiring
diagram (see "Electrical connection -
Wiring diagram").
Installing the hob
^ Feed the mains connection cable
down through the cut-out.
^ Centre the hob b in the cut-out.
^ Connect the hob to the mains.
^ Check that the hob works.
^ Seal the remaining gap c with a
silicone sealant that is heat-resistant
to at least 160 °C.
Observe the silicone sealant
manufacturer's instructions.
For granite and marble tiles, only
use silicone sealant that has been
especially formulated for granite and
marble.
Flush-fitted hobs
56
