Changing the small jets
(for all burners)
To change the small jets, the burner
securing screws must first be loosened
and the upper section of the appliance
removed.
^
Remove the operating controls by
pulling them upwards.
^
Remove the upper section.
N.B. To remove a stainless steel upper
section:
Lift it up at the back, push it forwards
and remove.

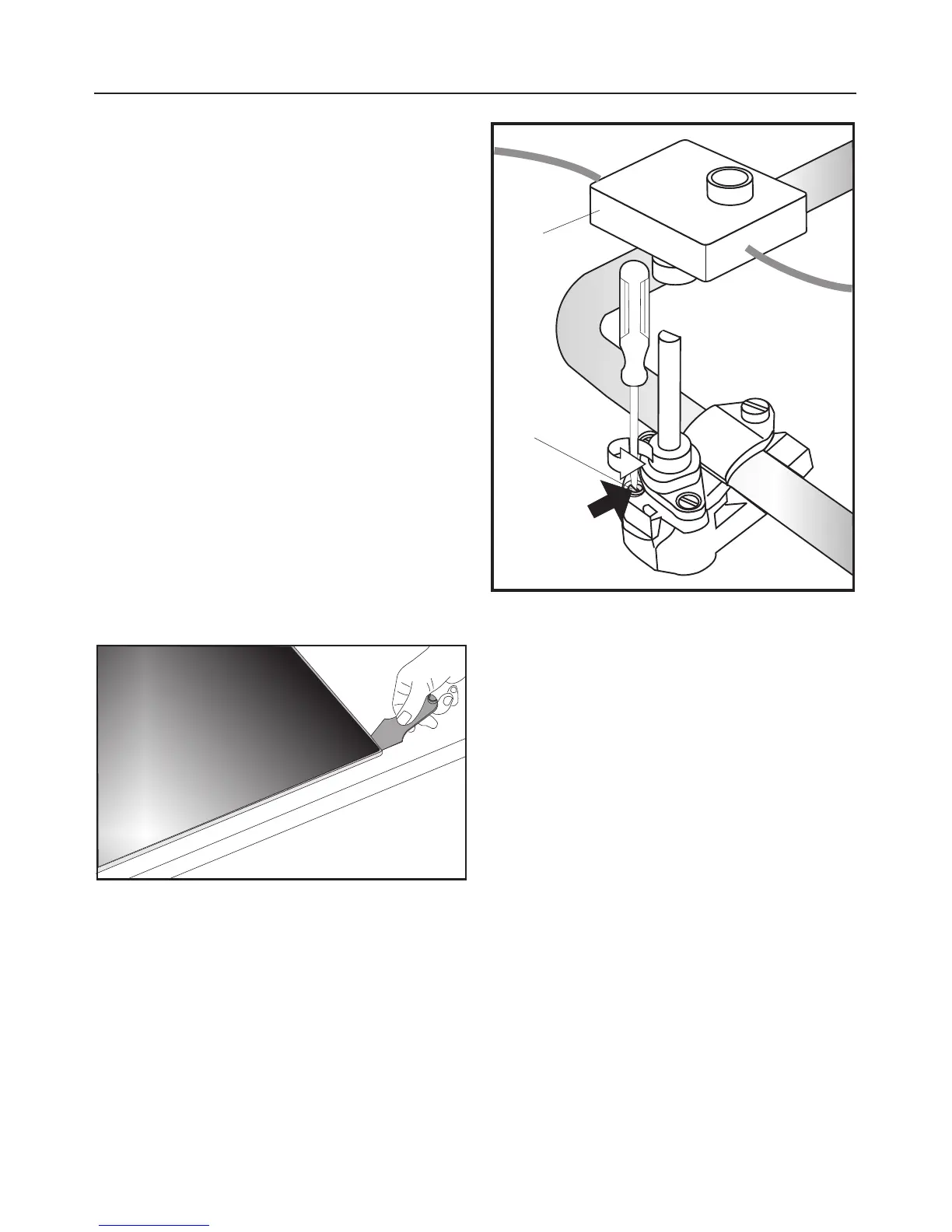

N.B. To remove a ceramic upper
section:
Insert the lever supplied between the
frame and the worktop, prise up the
upper section and remove.
^ Remove the ignitor a.
^ Using a small screwdriver, unscrew
the small jet b in the gas fitting.
^ Pull the jet out with a pair of pointed
pliers.
^
Select the jets as shown in the table,
fit, reversing the procedure, and
secure.
Conversion to another type of gas
21
a
b
