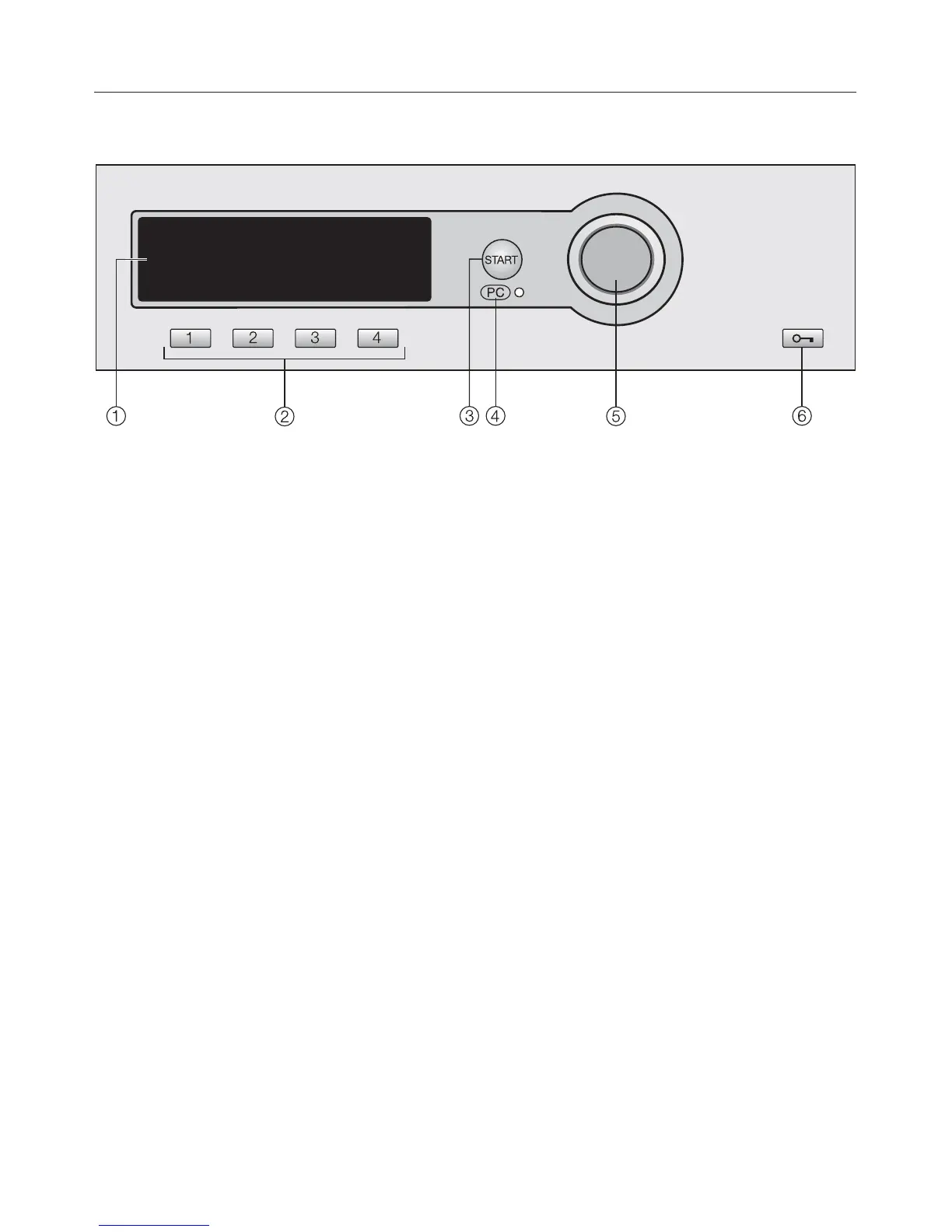

Control panel
a Display*
See the following pages for more
information
b Direct select buttons
To select a wash program directly.
You can also save a "Favorite" wash
program on these buttons.
c "Start" button
d PC Indicator/Optical interface
Allows a service technician to check
and update the wash programs
e Jog shuttle
Turn to select menus
Press to confirm the selection
f a Door button
To open the drum door
* Contents in the display will vary with program offering.
Guide to the washer
6
