Installation
*INSTALLATION*
71

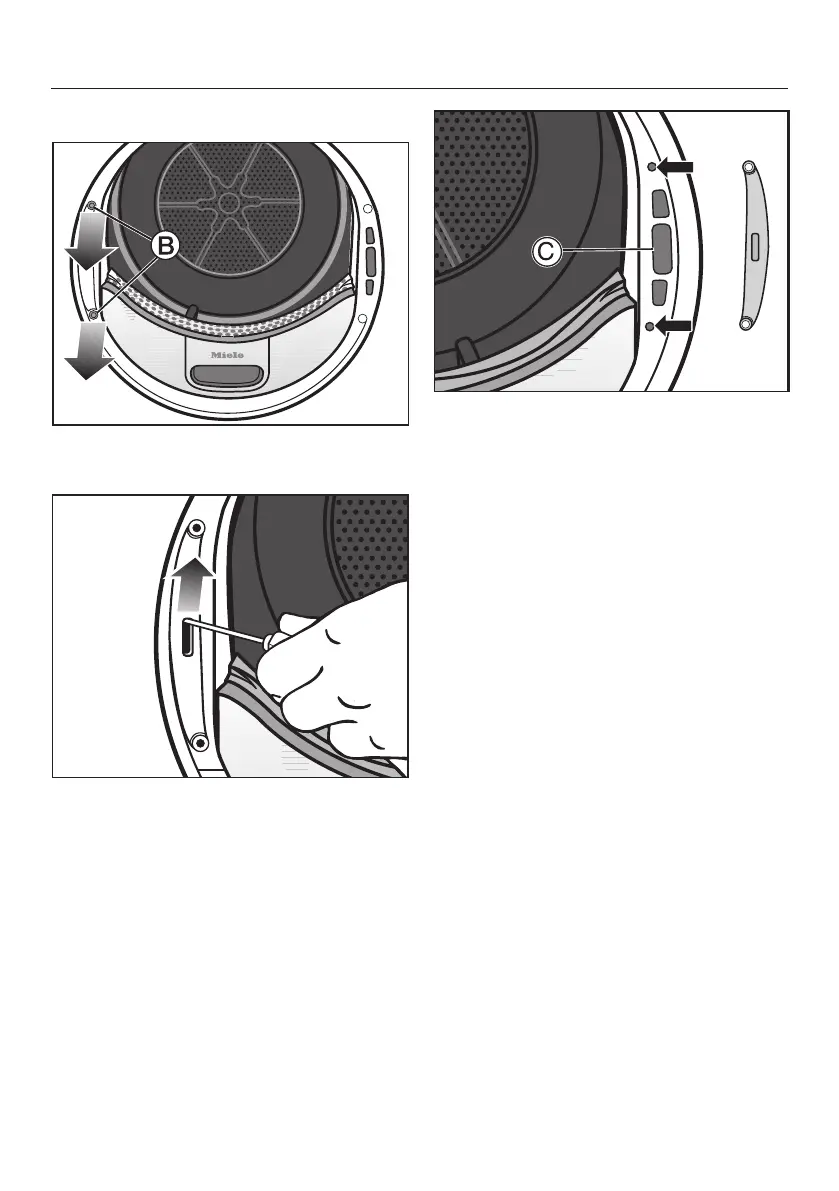

Changing over the door lock
Use the Torx screwdriver to unscrew
the two screws on the door lock.
Use a screwdriver to push the door
lock up.
The door lock will spring out of its
position and can then be removed.
Turn the door lock 180°.
Insert the door lock into the opening
on the opposite side.
Adjust the position of the door lock
so that the two screw holes line up
with the two holes in the front panel
of the dryer (arrows).
Secure the door lock tight with the
two screws.
Set the Torx screwdriver aside.
You will not need the Torx T30
screwdriver again until the end when
you are installing the door on the
tumble dryer.
