Installation
*INSTALLATION*
75

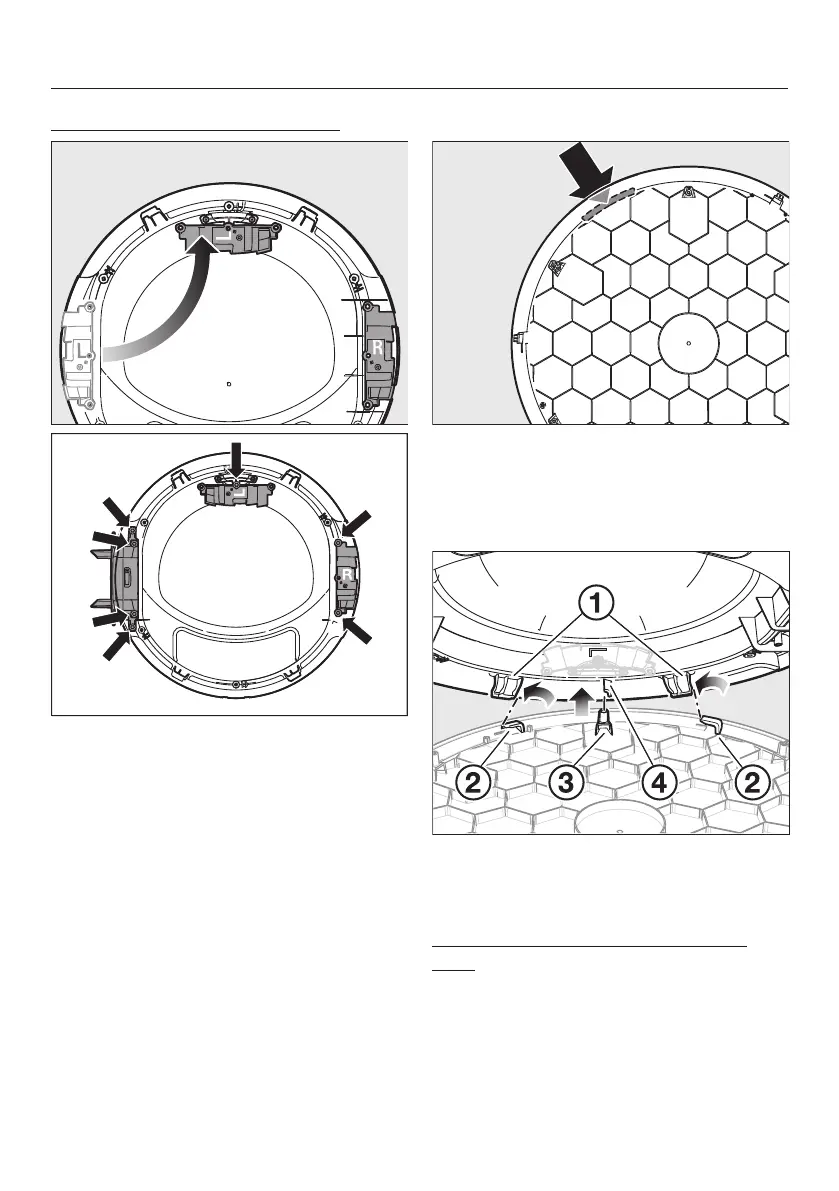

Installing the caps and the hinge
 Screw the cap markedL tight with
one screw.
 Install the cap markedR and screw it
tight with twoscrews.
 Install the door hinge and screw it
tight with fourscrews.
Installing the outer plate on the door
 Place the outer plate on the blanket
outer side down.
The yellow marker should be on the top
left.
 Looking in through the opening,
position the door diagonally on the
outer plate.
The door hinge is on the right-hand
side.
Ensure that:
- The two retainers are on the left in
front of the twolatches.
- The ridge is to the right of the
screw dome.
