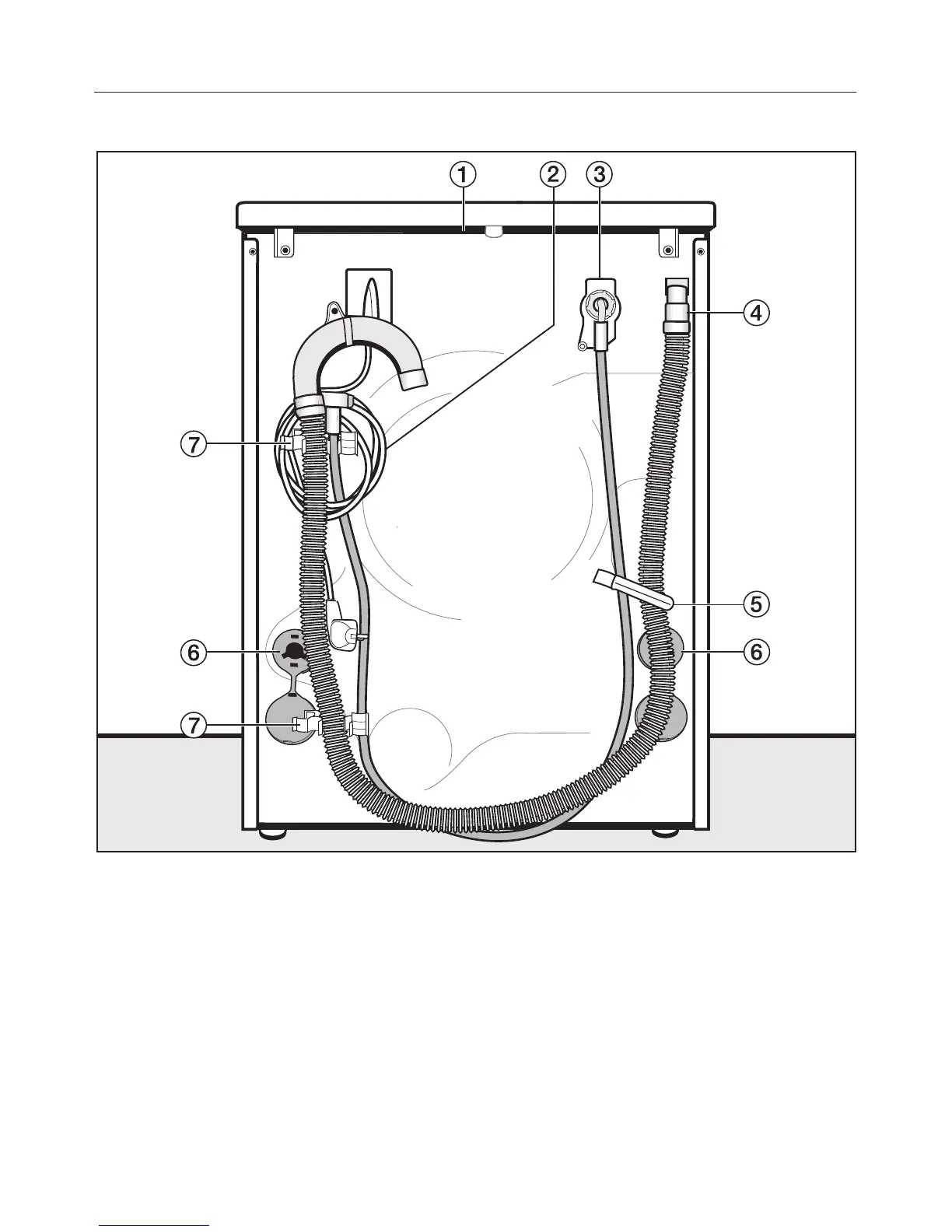

Rear view
a Protruding lid for holding when
moving the machine
b Electrical connection
c Inlet hose (tested to withstand
pressure of at least 7,000 kPa)
d Drain hose
e Transport brackets for inlet and drain
hoses
f Transit bar covers
g Transport brackets for inlet and drain
hose and restraining clips for transit
bars
Installation and connection
48
