Connection to the drainage
system
The machine drains via a drain pump
with a delivery head of 1 metre*. The
drain hose must not be kinked as this
restricts drainage. The swivel elbow at
the end of the hose can be turned in
either direction, or can be detached if
required, with a sharp twist and pull.
If required, the drain hose can be
extended to a length of 5 m. The
necessary parts can be purchased
from Miele.
* For a delivery head more than1m(up
to a max. of 1.8 m), a second duo-drain
pump is available with the
corresponding kit from Miele.
Drain hose connection:
1. Direct into a sink or basin:
Please note the following:
– Hook the hose over the edge and
secure.
–
Make sure that the water can drain
away freely without hindrance.
Otherwise there is a risk of water
overflowing or of some of the drained
water being sucked back into the
machine.
2. Connected securely to a plastic
drain pipe with a rubber nipple.
There is no need to use a non-return
valve.
3. Connected securely to a standpipe.
4. Connected securely to a floor gully.

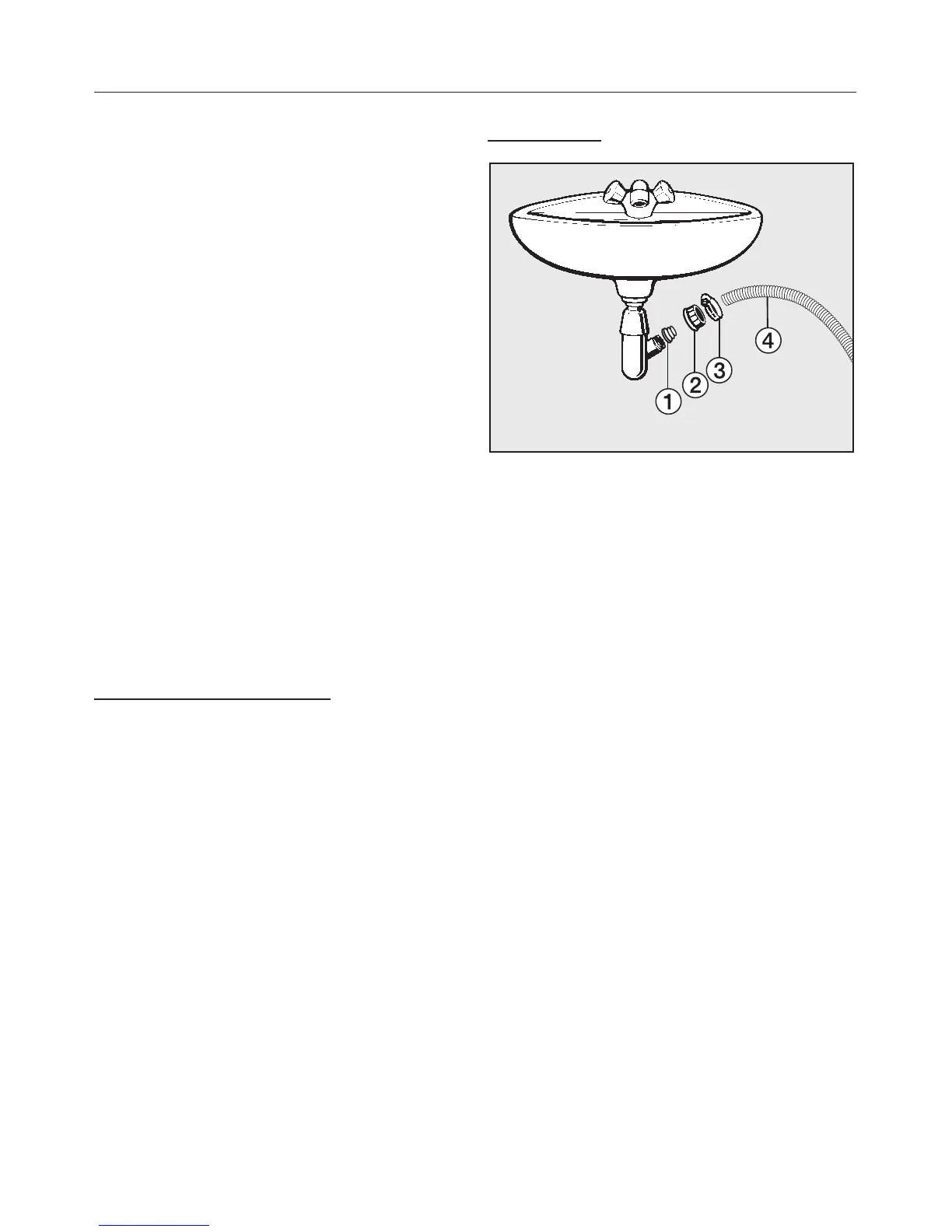

Please note:
a Adapter*
b Nut*
c Hose clip*
d End of the hose
^ Fit adapter a to the sink drain outlet
using nut b.
^ Attach the end of the hose d to
adapter a.
^
Use a screwdriver to tighten hose
clip c up close to the nut.
* Not supplied with washing machine.
Installation and connection
56
