Installation and connection

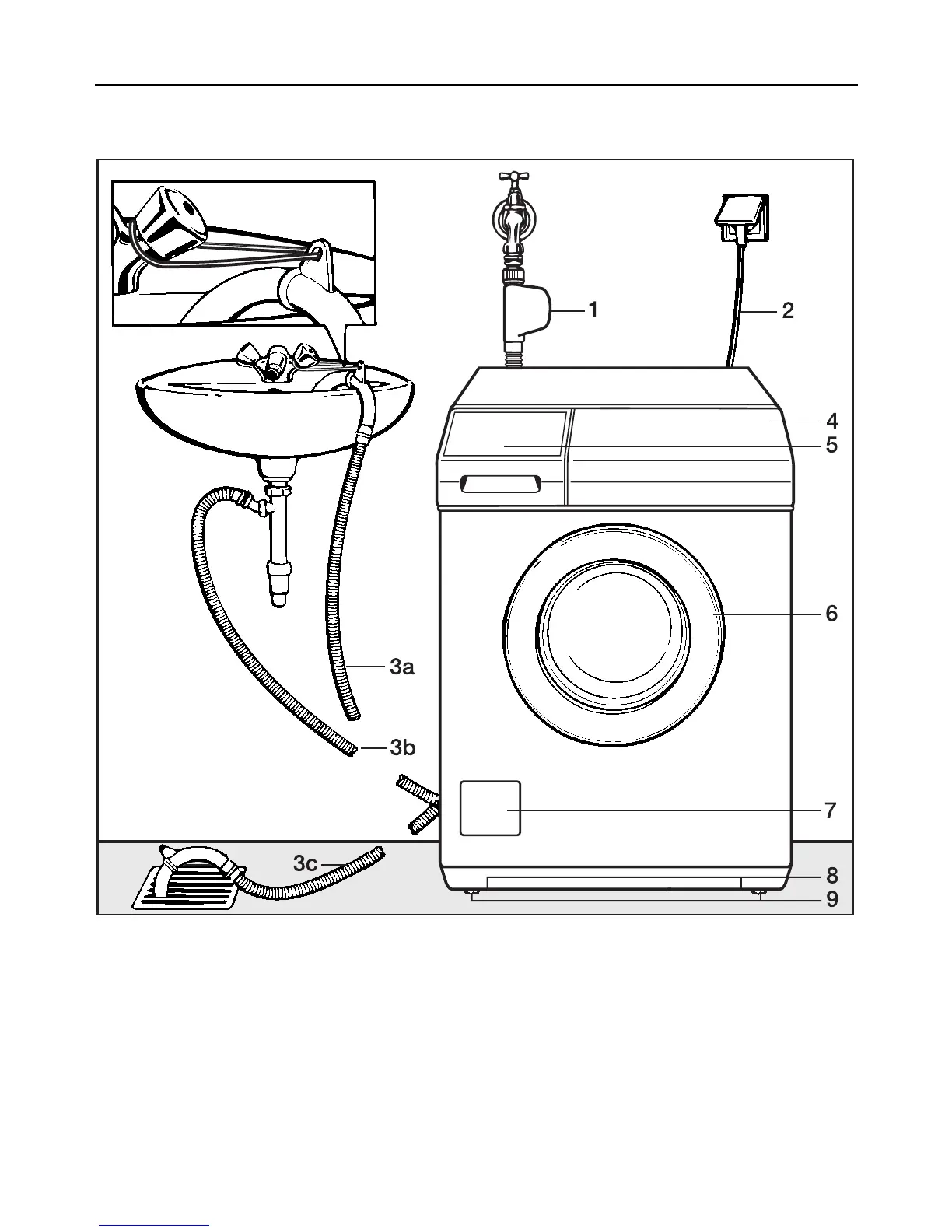

Front view
1 Inlet hose with “Waterproof” system
2 Electricity supply cable
3a - 3c Flexible drain hose (with
detachable swivel elbow)
4 Facia panel with controls
5 Detergent dispenser drawer
6 Drum door
7 Flap for fluff filter, drain pump and
emergency release
8 Handle recesses for moving the ma-
chine
9 Four height adjustable feet
Installation and connection
53
