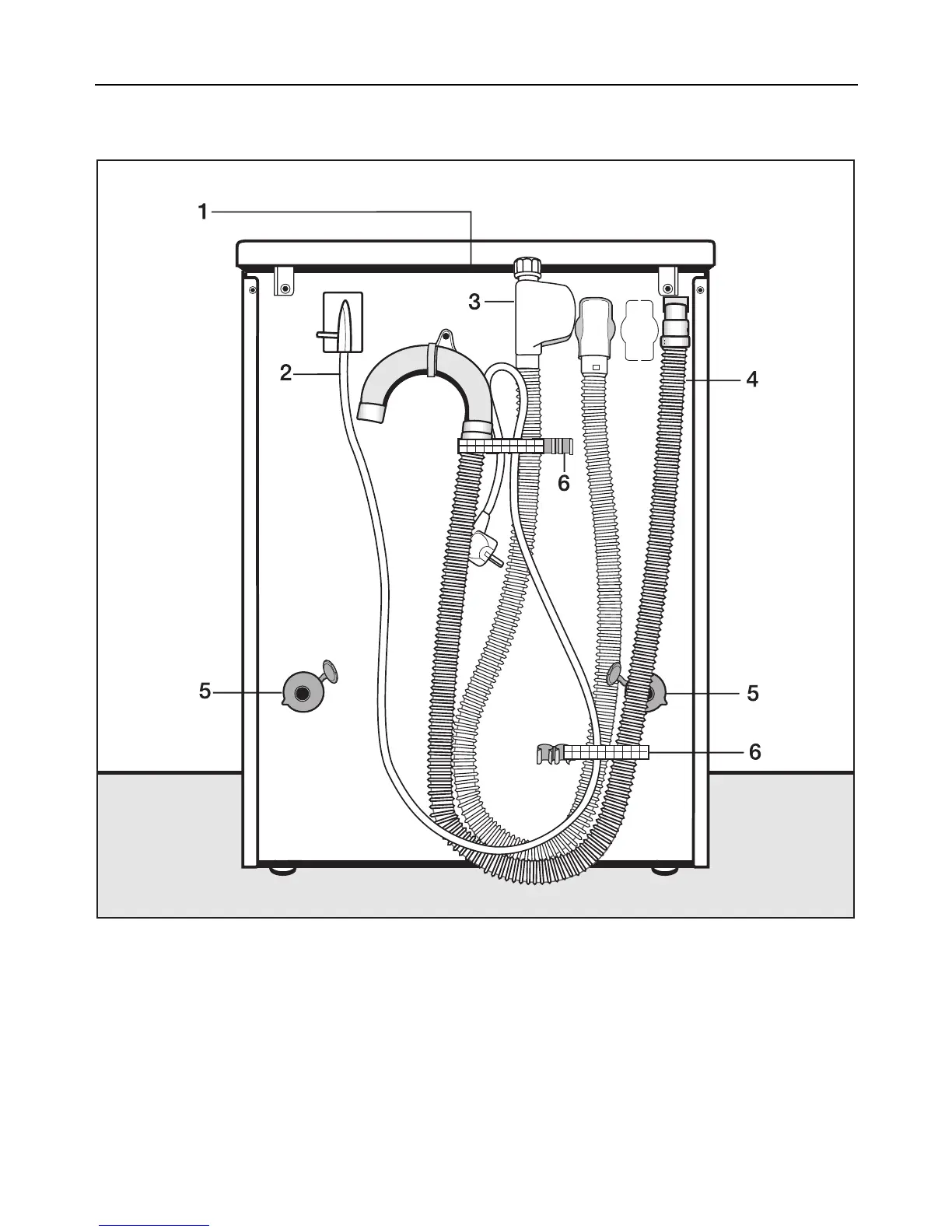

Rear view
1 Protruding lid edge for holding when
moving the machine
2 Electricity supply cable
3 Inlet hose with “Waterproof” system
4 Drainage hose
5 Cover with transit bars
6 Restraining clip for:
– Inlet hose
– Drain hose
– Electricity supply cable
– Transit bars when removed
Installation and connection
54
