Miele WT 2670 WPM User Manual

^

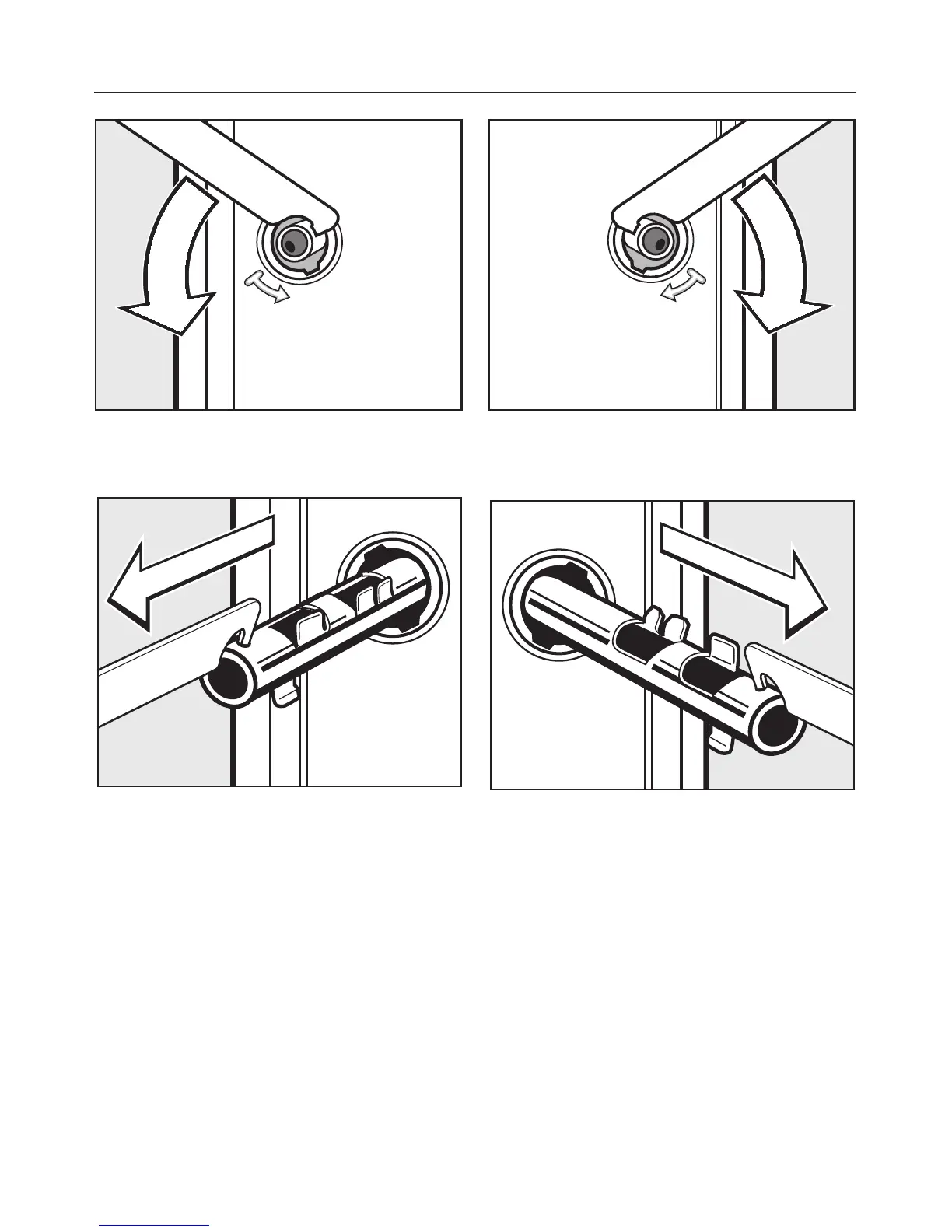

Using the spanner supplied turn the
left-hand transit bar 90°, then
^
withdraw the transit bar.
^
Turn the right-hand transit bar 90°,
then
^
withdraw the transit bar.
Installation and connection
64

Miele WT 2670 WPM Specifications

General

Door hinge	Left
Loading type	Front-load
Product color	White
Appliance placement	Freestanding
Washing capacity	5 kg
Delay start (max)	24 h
Maximum spin speed	400 RPM
Washing class	A
Water consumption per cycle	65 L
Energy consumption washing per cycle	3.4 kWh
Drum interior light	Yes

Weight and Dimensions

Depth	580 mm
Width	595 mm
Height	850 mm
