USER’S MANUAL MIG
____________________________________________________________________
____________________________________________________________________________________
MATT di LIEVORE SRL Via Bianche 7 36010 Carre’ ( VI ) Tel. 0445 / 892223 Fax 0445 / 390346

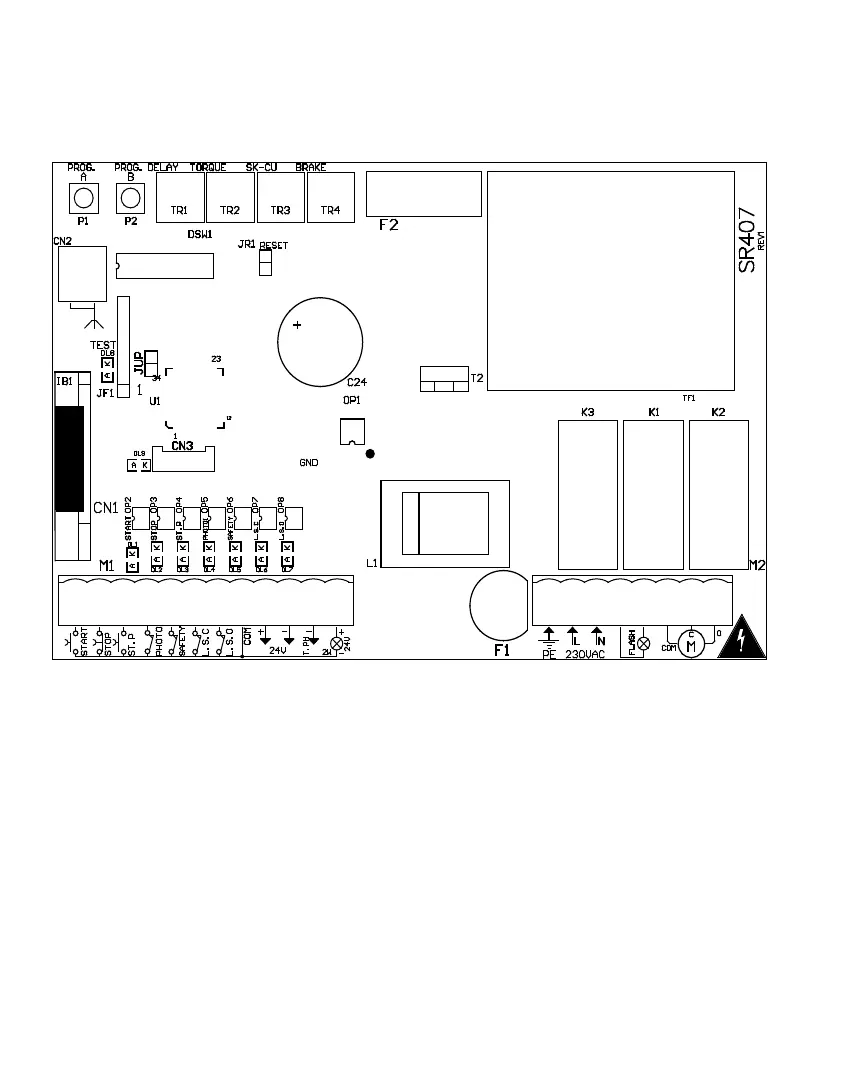

INSTALLATION
Before making the electrical connections it is necessary to turn off the mains of 230V
50Hz and regulate the motor torque to a minimum.
Use 0.5mm2 wires to make connections to the pushbuttons, photocells and 24V power
supply. For connections to the electric lock, flasher and motors it is necessary to use at
least 1.5mm2 wires. Use wires of at least 2,5mm2 to make connections to supply
mains of 230V 50Hz.
