USER’S MANUAL MIG
____________________________________________________________________
____________________________________________________________________________________
MATT di LIEVORE SRL Via Bianche 7 36010 Carre’ ( VI ) Tel. 0445 / 892223 Fax 0445 / 390346
INSTALLATION SLIDING GATE TYPE
TRIMMER
• Trimmer TR1 DELAY as you need.
• Trimmer TR2 TORQUE to the minimum.
• Trimmer TR3 SK-CU as you need.
• Trimmer TR4 BRAKE as you need.
DIP SWITCH
• From 1 to 6 as you need.
dip switch 7 = OFF and dip switch 8= OFF

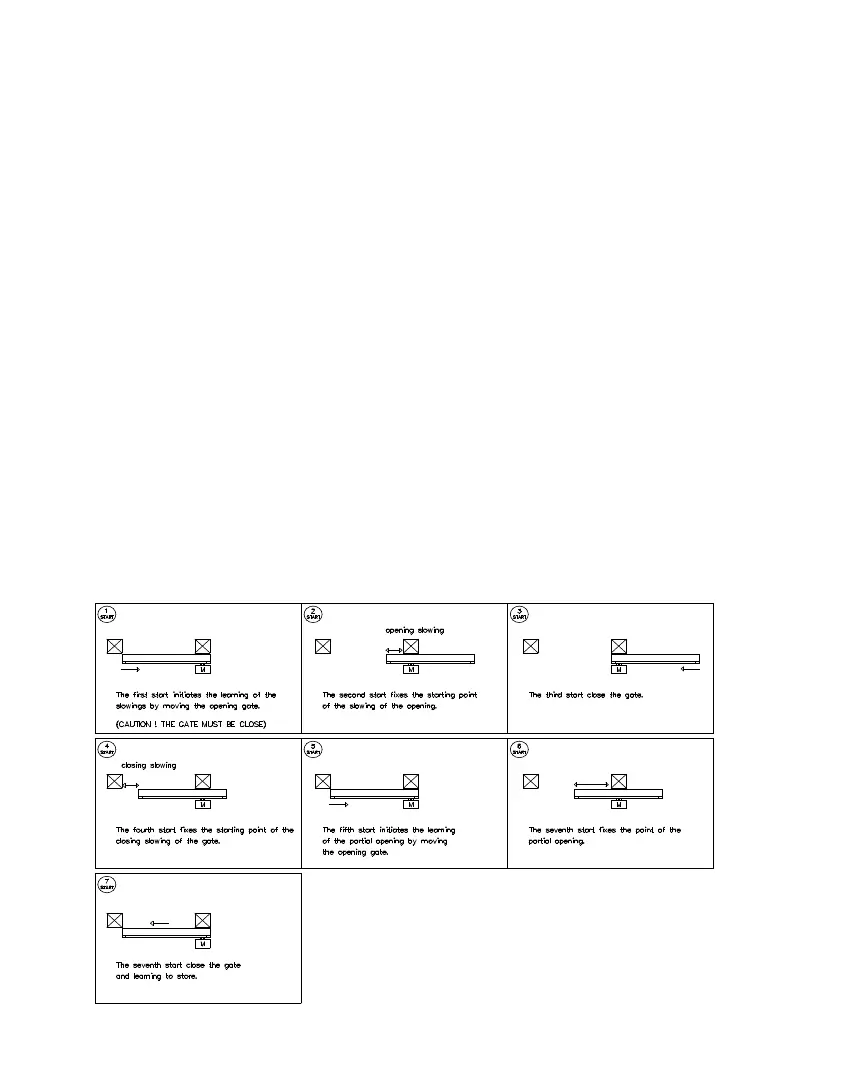

Press the PROG.A learning button for at least 3 seconds, until the TEST
LED starts to flash, then do as follows. Learning ends when the TEST LED turns
off.
