- maximum temperature on the cable surface of +50° C
- minimum temperature of -25° C
Moreover, it must have a minimum section of 3 x 1.5 mm2 and, for the cable to
hold correctly, it must be provided with an external sheath of Ø = 7.1 to 9.6 mm.
The wiring of the terminal board must be carried out as shown in Fig. 3
M1= operation 1
M2= operation 2
T= earthing
N = common
WARNING! When the power supply cable is damaged, it must be replaced by the
manufacturer or its technical assistance service, or else by a person having similar
qualification, in order to prevent any risk.

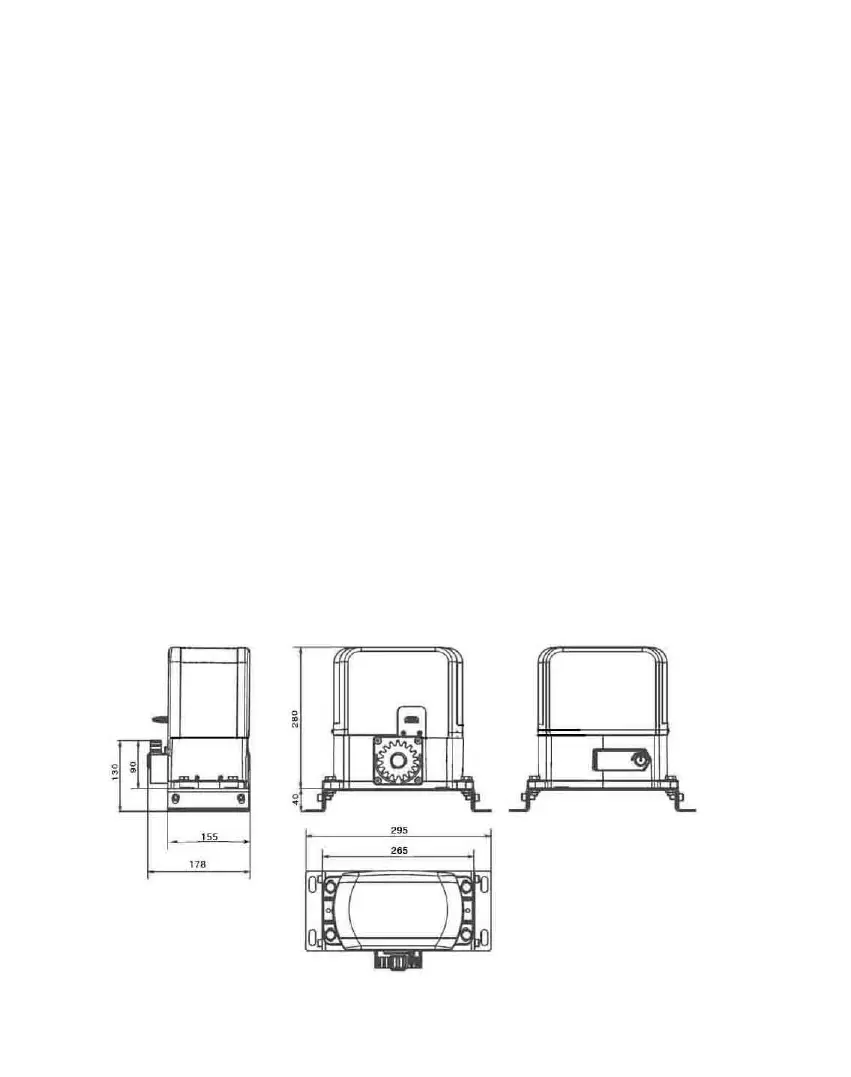

External meausures
