SOFTWARE
It is necessary to read software inside the new control
unit by means of a SD card, if the control unit has
been exchanged.

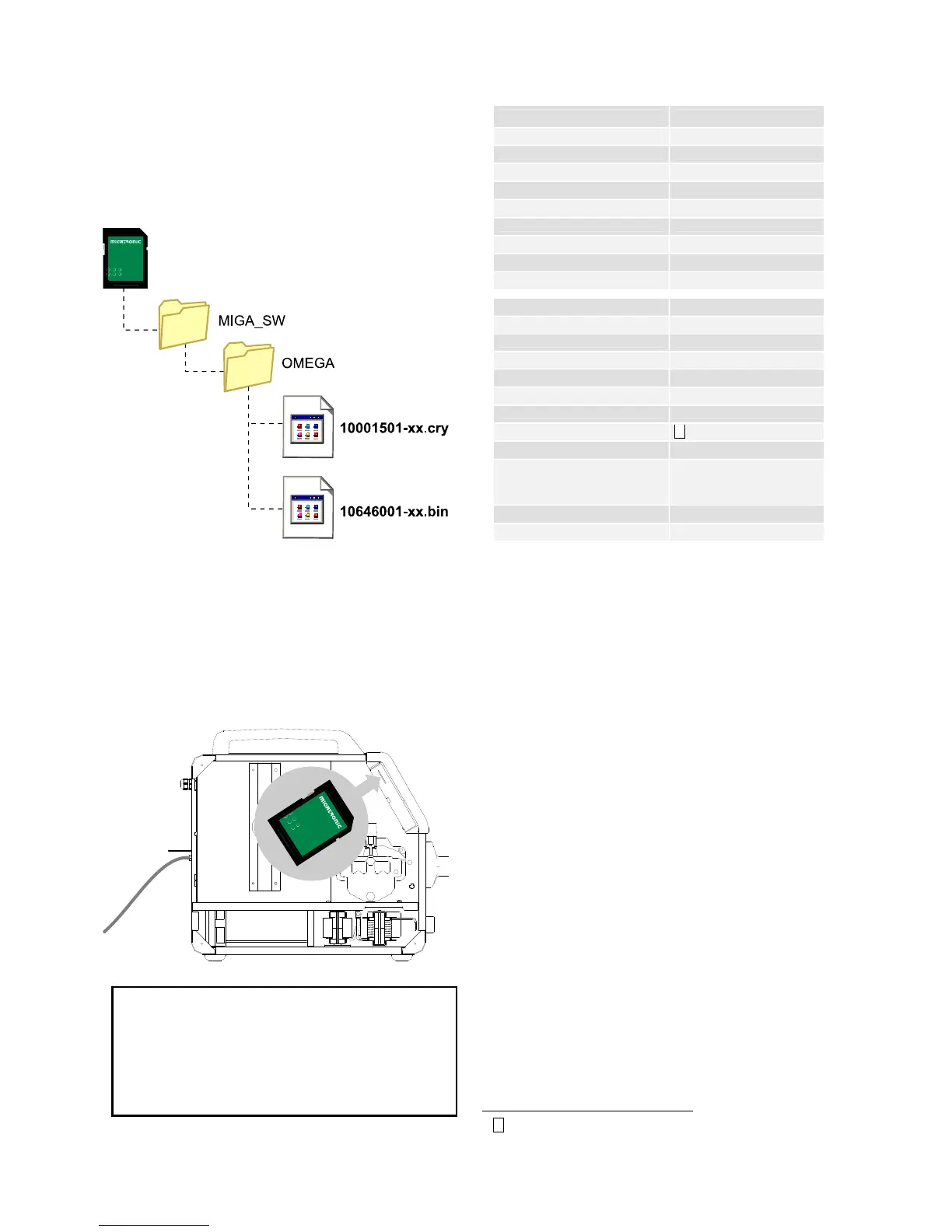

The software is placed on a SD card which must
contain the folders and one or more of the files as
shown below. The folder names must be saved in BIG
letters and with the original names.
Software reading
• Insert the SD-card in the slide in the right side of
the machine.
• Turn on the machine.
• The display flashes shortly with three lines.
• Wait until the set current is displayed.
• Turn off the machine and remove the SD card.
• The machine is now ready for use.
TECHNICAL DATA
Power source: AUTOMIG 273i
Mains voltage (50Hz-60Hz) 3x400 V ±15%
Fuse 10 A
Mains current, effective 7.6 A
Mains current, max. 13.2 A
Power, (100%) 5.3 kVA
Power, max 9.1 kVA
Open circuit power 20 W
Efficiency 0.88
Efficiency factor 0.93
Current range 10-270 A
Duty cycle 100 % at 20°C 230 A
Duty cycle 60% at 20°C 245 A
Duty cycle 100% at 40°C 175 A
Duty cycle 60% at 40°C 195 A
Duty cycle max. at 40°C 25 %
Open circuit voltage 52 V
1
Sphere of application
This machine meets the demand made for machines which are to
operate in areas with increased hazard of electric chocks
2
Equipment marked IP23 is designed for indoor and outdoor applications
* All machine user settings are deleted when
new software has been inserted. Therefore,
always remove the SD-card from the machine
after the software update. Thereby, continuous
software update is avoid each time the machine
is turned on.
