Migatronic Automig X - Component Replacement Procedures; Replacing the Control Unit

10

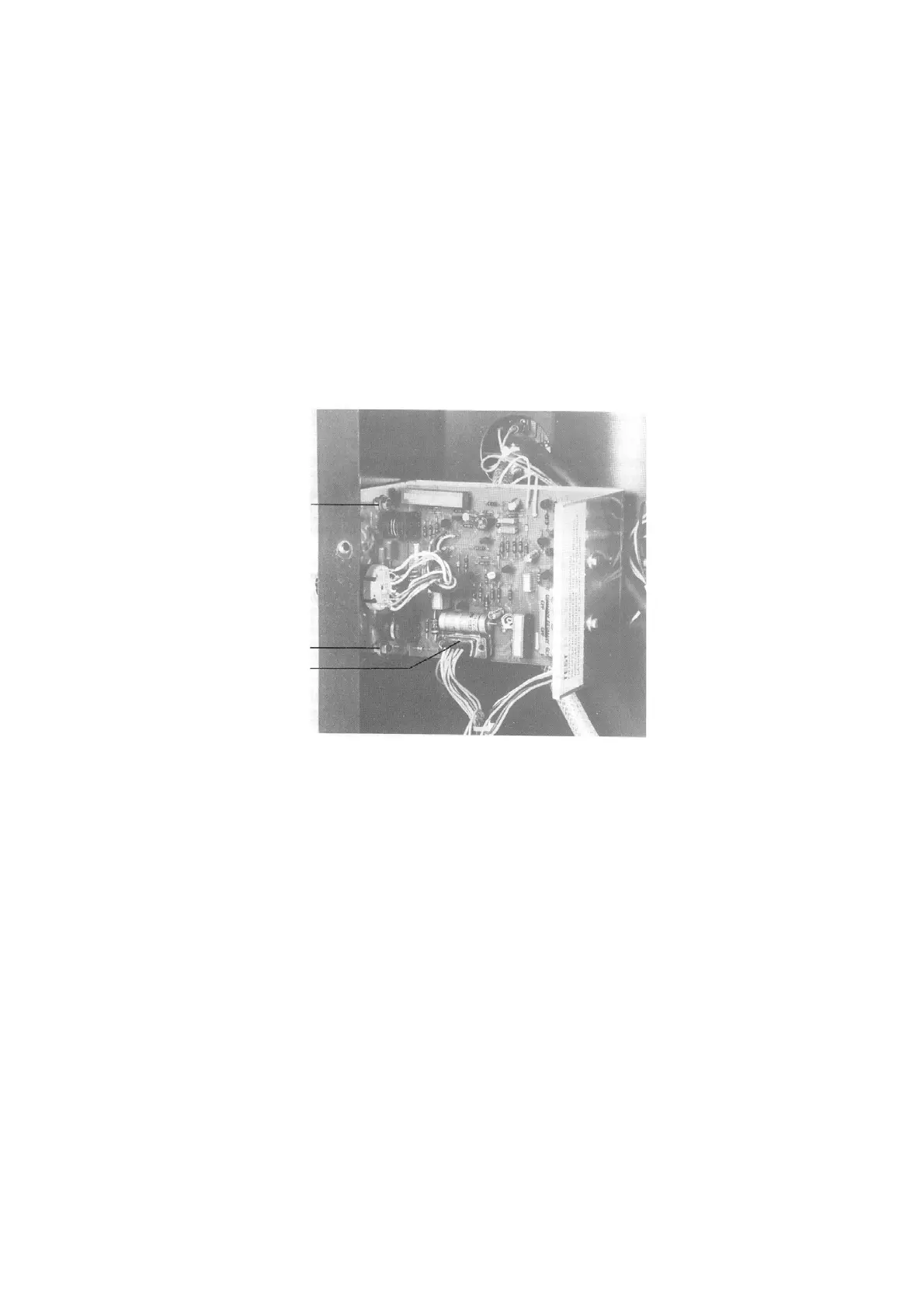

REPLACEMENT OF CONTROL UNIT
1. Switch off current.
2. Remove buttons on the front plate.
3. Remove side panel.
4. Disconnect multiplug outlets and unscrew the nuts.
5. Dismount potentiometer for pause time.
6. Pull out control unit.
7. Mount the new control unit inversely.
8. Do not connect the machine before the multiplug is in the right place.
Nut
Plug
Nut
