Mighty Mule FM137 - Learn Transmitter Code (Wireless Installations)

8
“Learn” Transmitter Code (for wireless installations)
IMPORTANT: Make sure the transmitter operates the gate opener.
Turn off the gate opener so that there is no unintended operation of the gate during the learning process.
Step 1: Mount the keypad cover using the screws provided.
Step 2: Slide the keypad into the cover and secure with the small screws provided.
1. Press and release the PROGRAM button.
2. Enter the Master Code then press and release the PROGRAM button.
3. Enter 0,5 then press and release the PROGRAM button.
4. Press and hold the transmitter button while holding the transmitter to the bottom of the keypad as shown.
5. The keypad will beep 3 times to conrm that the transmitter is successfully “Learned.” Release the transmitter button at this
time.
EXAMPLE: Learn transmitter code with Master Code of “1234”. Then press and hold transmitter button until you hear 3 beeps. The
round black dot is the “PROGRAM” button. Go to “Programming the keypad” to change the master code (if desired).
1 2 3 4 0 5
Turn the gate opener back on and conrm that the keypad operates the gate using the master code.
1 2
ABC
3
DEF
4
GHI
5
JKL
6
MNO
7
PRS
8
TUV
9
WXY
0
1 2
ABC
3
DEF
4
GHI
5
JKL
6
MNO
7
PRS
8
TUV
9
WXY
0
①
1 2
ABC
3
DEF
4
GHI
5
JKL
6
MNO
7
PRS
8
TUV
9
WXY
0
② ③
⑤④

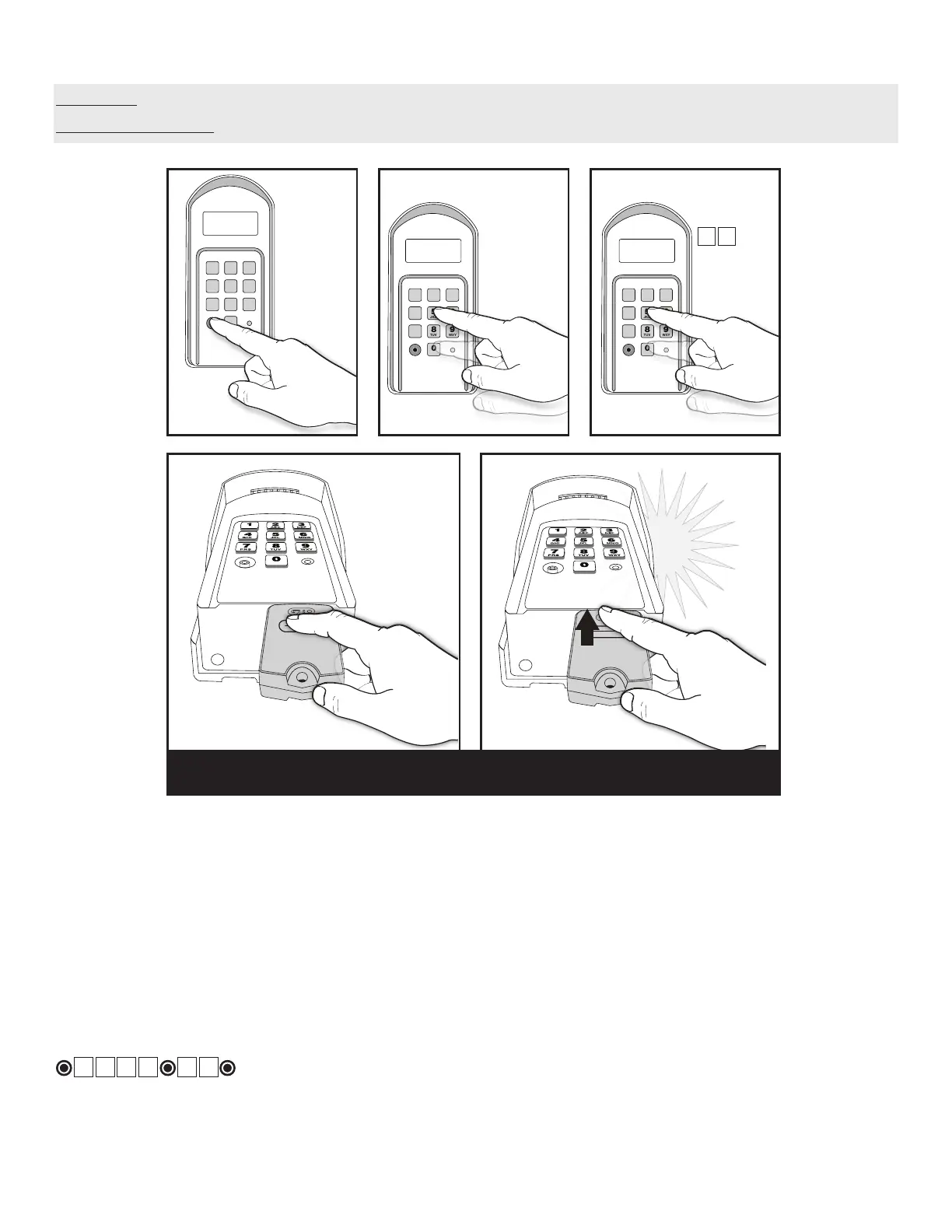

IMPORTANT: Transmitter must be placed exactly as shown, and against the bottom of
the keypad in order for the “learning” process to work correctly.
Press &
Release
Program
Button.
Enter Master
Code, Press
& Release
Program
Button again.
Enter
0 5
Press &
Release
Program
Button again.
Press and hold
the transmitter
button holding
it to bottom of
keypad.
Keypad will
beep 3 times.
Release the
transmitter
button.
Figure 5
