TRIAL OPERATION
:
Trial operation procedure
:
(a
)
Fuel priming
:
The fuel should be primed to the inlet of the pump by either syphoning or with a syringe
.
Note
:
A priming pump is
available to distributors part no
:
SP
21
.
MY
16
:
Switch the heater on at the thermostat and turn the dial clockwise until the green light comes on
.
The red LED
will be flashing slowly and the heater motor will start
.
After approximately
40
seconds the fuel pump will start to pulse
and fuel will start pumping up to the heater
.
This may take several attempts depending on the length of the fuel line
between the pump and the heater
.
Note that the heater will go through
2
cylces and stop
,
you should then wait
5
minutes switch the thermostat off and then on again to reset the electronics
.
The cycle will now be repeated
.
When the
fuel reaches the heater it will ignite and after approimately
80
seconds the glow plug will switch off and the red LED on
the thermostat will be on constant
.
Final check
:
Confirm that all the wires are connected according to the wiring diagram and that all the connectors are
firmly in place
.
Check that the wiring loom is secured neatly in place and will not be subjected to any chafing or
excessive heat
.
ie
:
Keep away from the heater exhaust pipe
.
Check that the exhaust clamps are tight and that the pipe is secured away from any combustible
materials
.
ie
:
Bilge pipes
-
recommended min air gap
=
10
mm
.
Check that all hose clips on the hot air ducting are in place and are correctly tightened
.
Ensure that the
ducting has not been deformed to cause any restriction in air flow
.
Check that the fuel line is all clipped in place O
.
K and that the clips are all tight
-
ensure there is fuel in the
tank
.
Check that the battery has sufficient charge to operate the heater
.
-
6
-
H
L1
Specifications
Ducting Dia
(
mm
)
Max length L
1
(
mm
)
Max starting head H
.
Max No of
90
o
bends
MY
16
55
5000
1200
4
MY
30
80
8000
1500
7
H-
Dia
8.
NOTE
: The max length of ducting shown
is to the first permanently open outlet
.

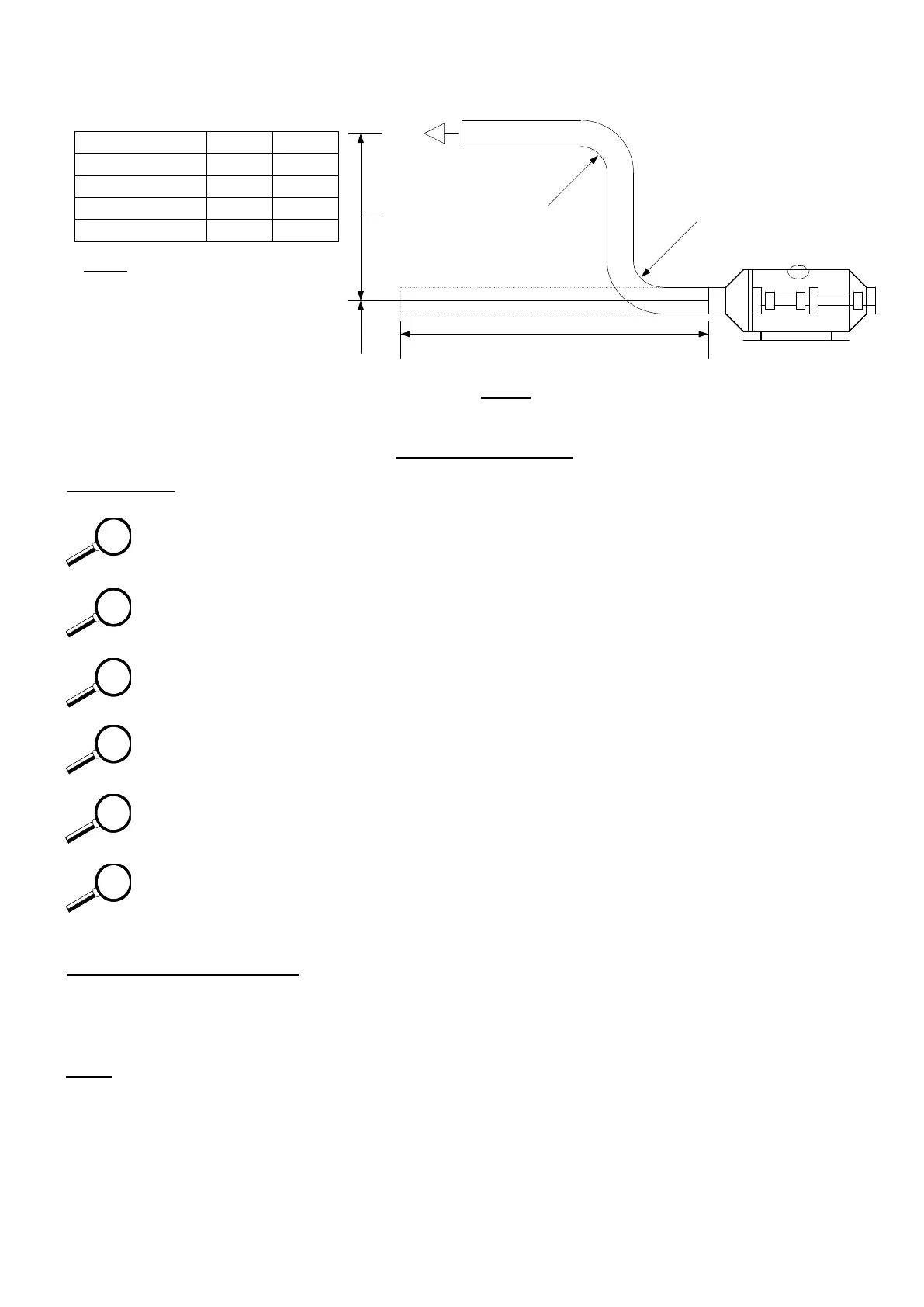

Ducting parameters
:
9
0
o
9
0
o
MY
16
/
MY
30
HEATER
.
Hot Air
Outlet
