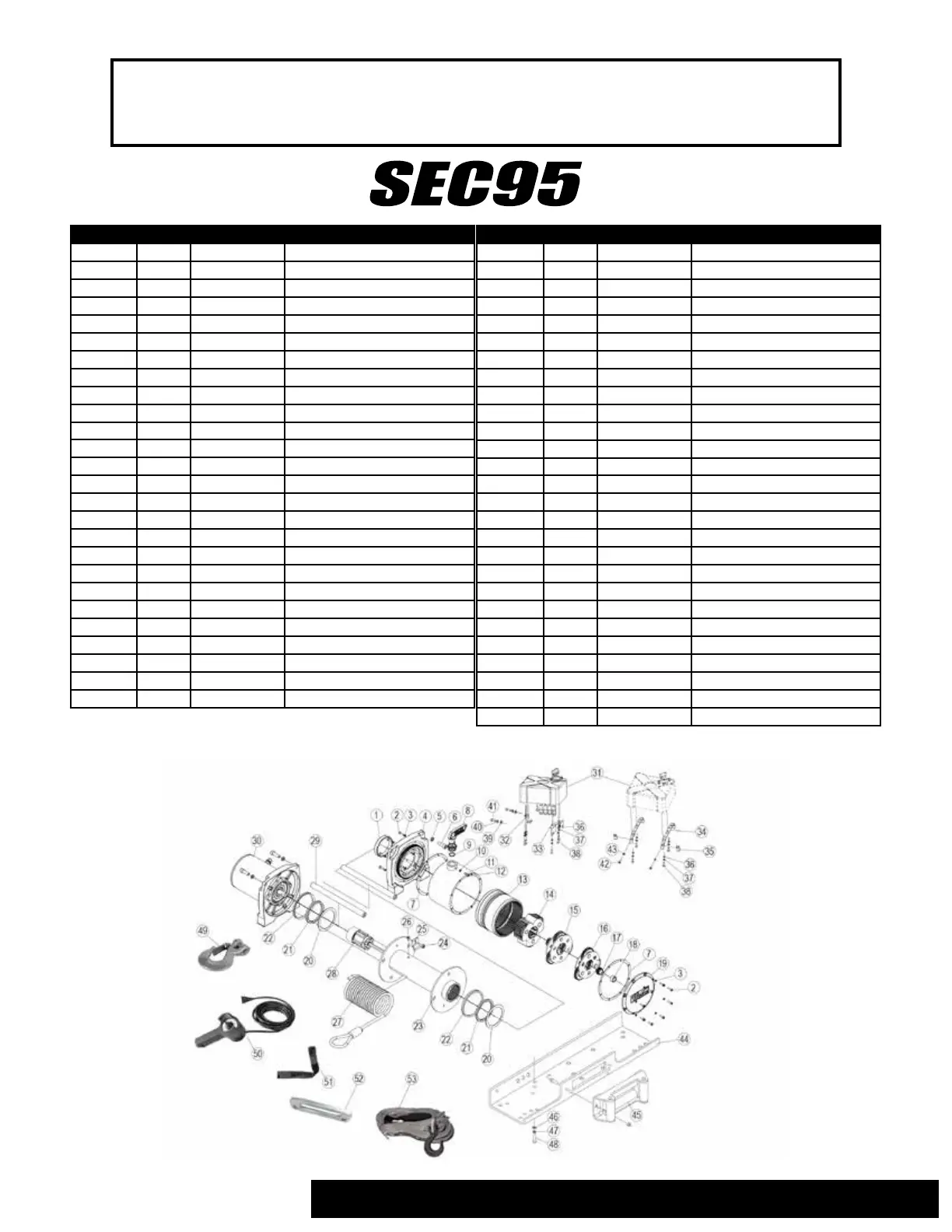

PARTS BREAKDOWN & ASSEMBLY
ITEM QTY PART# DESCRIPTION
1 1 77-50141W-01 Dry Bearing
2 16 77-50141W-02 Screw M4 x 12
3 16 77-50141W-03 Spring Washer M4
4 1 77-50141W-04 End Bearing
5 4 77-50141W-05 Spring Washer M8
6 4 77-50141W-06 Screw M8 x25
7 2 77-50141W-07 Gasket
8 1 77-50141W-08 Clutch Handle
9 1 77-50141W-09 Seal
10 1 77-50141W-10 Spring Washer
11 1 77-50141W-11 Gear Ring
12 1 77-50141W-12 Retaining Screw
13 1 77-50141W-13 Gear Ring - input/intermediate
14 1 77-50141W-14 Gear Carrier Assembly - output
15 1 77-50141W-15 Gear Carrier Assembly - intermediate
16 1 76-50256BW-16 Gear Carrier Assembly - input
17 1 76-50256BW-17 Gear - input sun
18 1 77-50141W-18 Gear Bushing
19 1 77-50141W-19 Gear Box Cover
20 2 77-50141W-20 Spacer
21 2 77-50141W-21 Ring
22 2 77-50141W-22 Seal Ring
23 1 77-50141W-23 Drum Assembly
24 1 77-50141W-24 Screw
25 1 77-50141W-25 Cable Anchor
26 1 77-50141W-26 Screw
27 1 76-50256BW-27 * Steel Cable
28 1 77-50141W-28 Brake/Shaft Assembly
29 2 77-50141W-29 Tie Bar
30 1 77-50141W-30 Motor End
31 1 77-50141W-31 Solenoid Assembly
32 1 77-50141W-32 Solenoid Bracket 1
33 1 77-50141W-33 Solenoid Bracket 2
34 2 77-50141W-34 Solenoid Bracket 3
35 2 77-50141W-35 Solenoid Bracket 4
36 5 77-50141W-36 Washer M6
37 5 77-50141W-37 Spring Washer M6
38 5 77-50141W-38 Screw M6 x 16
39 2 77-50141W-39 Washer M6
40 2 77-50141W-40 Spring Washer M6
41 2 77-50141W-41 Screw M6 x 12
42 2 77-50141W-42 Screw M6 x 16
43 2 77-50141W-43 Spring Washer M5
44 1 77-50141W-44 Mount Channel (Optional)
45 1 77-50141W-45 * Roller Fairlead
46 4 77-50141W-46 Washer
47 4 77-50141W-47 Spring Washer
48 4 77-50141W-48 Screw
49 1 76-50256BW-49 Safety Hook
50 1 77-50141W-50 Switch Assembly
51 1 77-50141W-51 Hand Strap
52 1 19-52001 ** Hawse Fairlead
53 1 19-52038-100C ** Synthetic Rope
ITEM QTY PART# DESCRIPTION
2121 Blount Road Pompano Beach, FL 33069 MileMarker.com 1.800.886.8647PAGE 17
Included with steel cable model PN 76-50246BW
Included with synthetic rope model PN 76-53246BW
*
**
