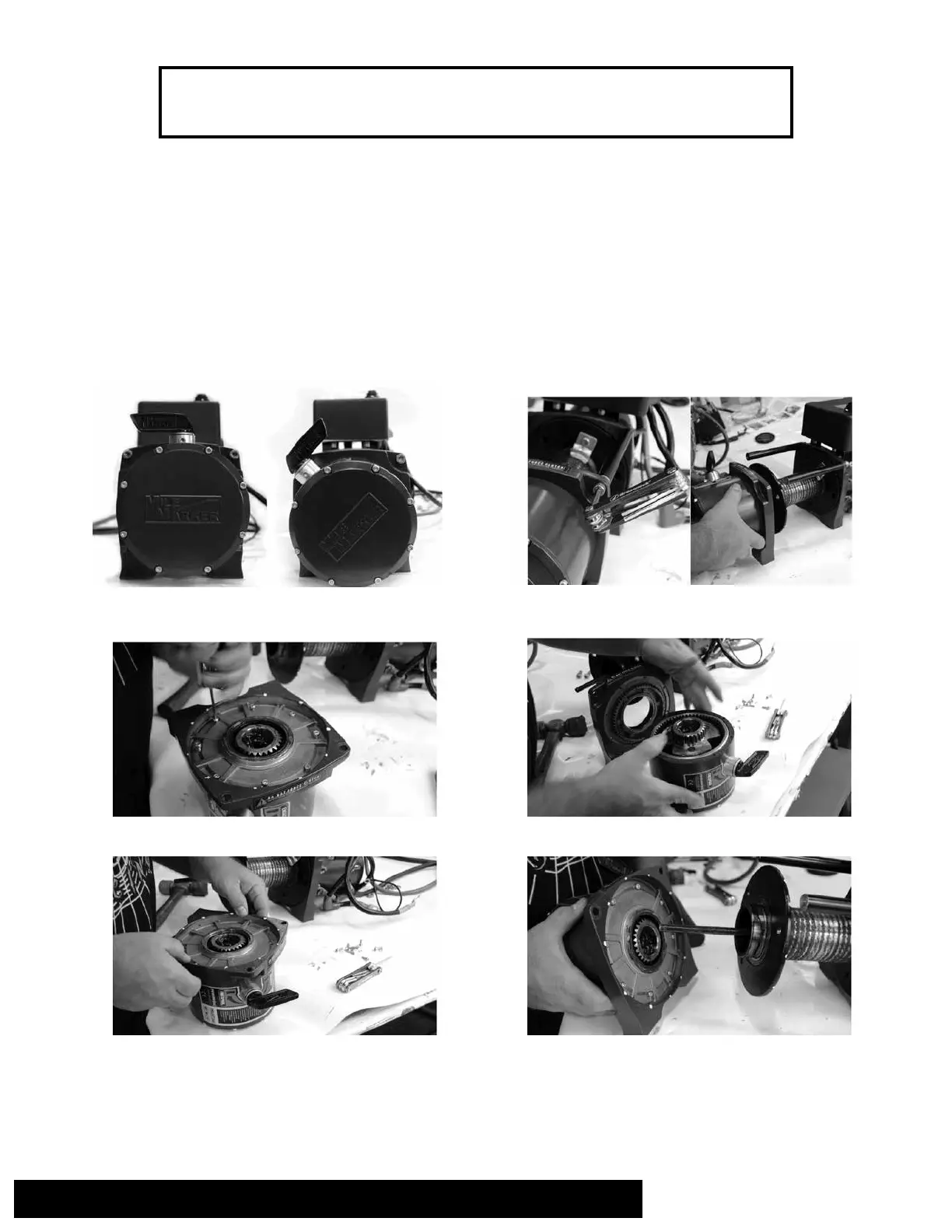

Fig. 1-2Fig. 1-1
Fig. 1-4
Fig. 1-6
Fig. 1-3
Fig. 1-5
CLOCKING INSTRUCTIONS
Winch gear housing can be clocked in 8 positions, enabling the user to position the clutch lever at 8
equidistant locations (0°, 45°, 90°….360°). (Fig. 1-1)
1. Remove gear housing from tie bars (Fig. 1-2)
2. Remove the 8 bolts in the gear housing leg (Fig. 1-3)
3. Separate leg and gear housing. A slight tap with a hammer might be needed (Fig. 1-4)
4. Place gear housing leg in the angle desired and screw in bolts (Fig. 1-5) Torque to spec
5. Properly slide drive shaft in the gear housing and line drum into drive gear (Fig. 1-6)
6. Re-attach tie bars to gear housing leg by using the same process as step 1, in reverse order (Fig. 1-2)
