3.3 Power Supply
UG56 can be powered by 802.3af standard PoE or Type-C port (5 VDC). If both are connected, the device
will be powered by the former method (PoE).

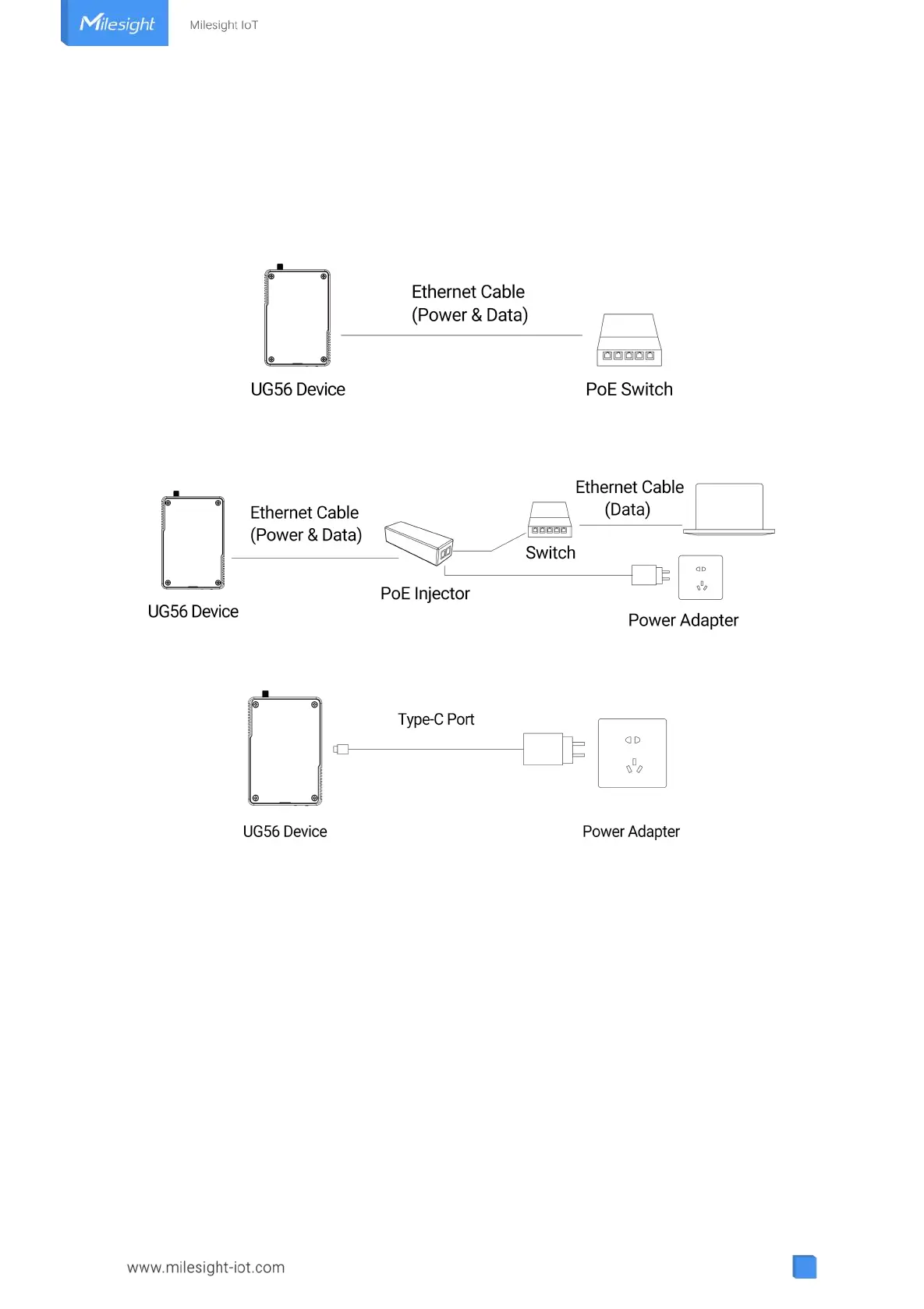

Power by a PoE Switch
Power by a PoE injector
Power by a Type-C Port
Note: When connecting, Ethernet cable of UG56 device side should be installed first, otherwise, PoE
devices or gateway may be damaged.
3.4 Gateway Installation
Before you get started, make sure all fittings are installed and the power supply is disconnected.
A. Fix the wall mounting bracket to the device with 2 x M3 bracket fixing screws.
