ETHOS EZ User manual MA073-006 Terminal chapter Page - 39 -

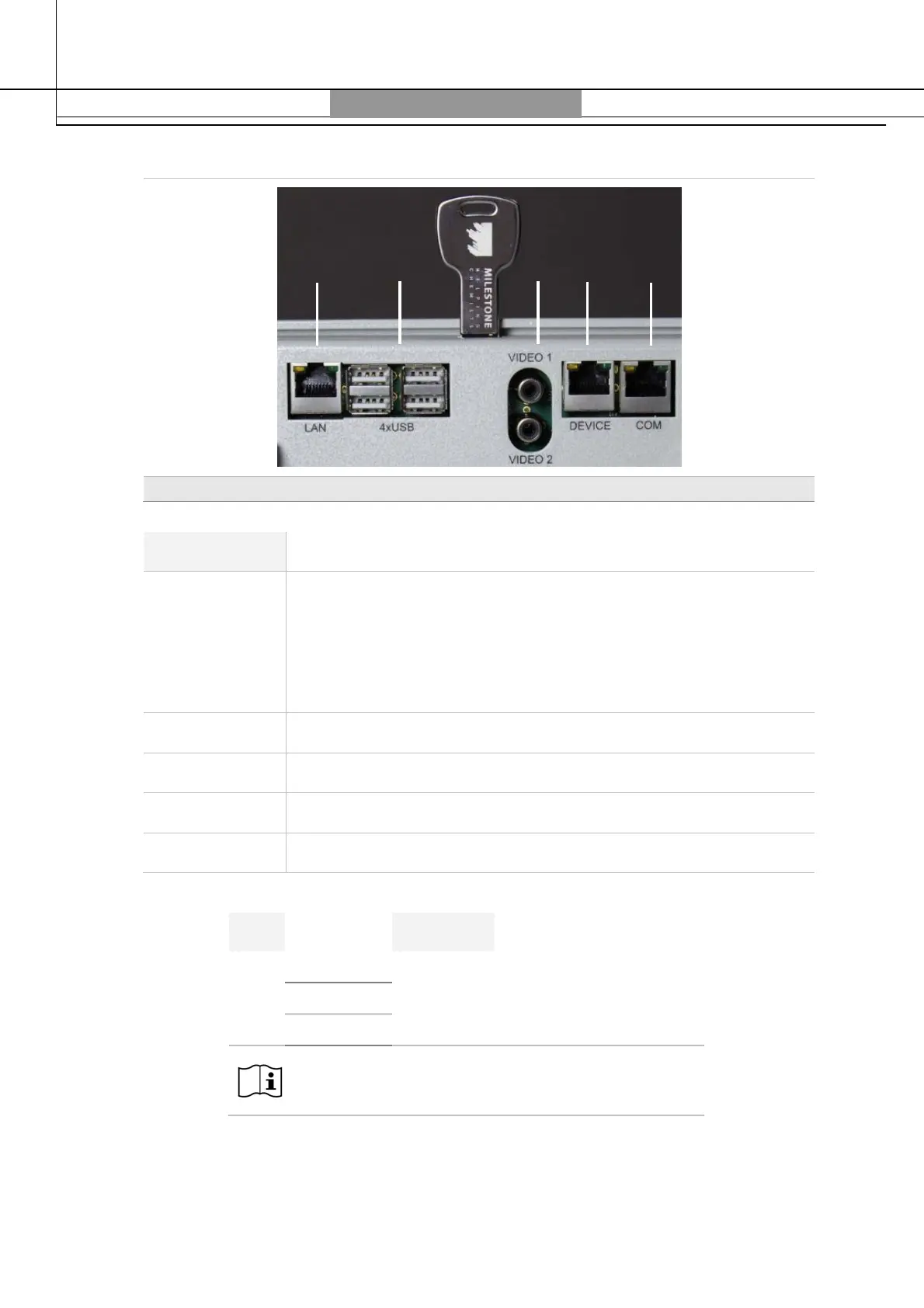

Terminal back connections
Terminal Front Connections
CONNECTION
B RJ45 LAN connection dedicated to web interface USB
Interface (for USB1.1 or USB2.0) for printer or USB pen
drive
Connection to printer.
See also Chapter
Printer and Memory cards
C 4 USB Connections for printers or USB pen drives
D Video port for an external camera connection
E RJ45 device to connect the terminal to the unit
F Connection for an external balance or printer
Used cable: RJ45 plug
PIN SIGNAL
2 RxT (In)
5 GND
6 TxD (Out)
Pin 1 is on the right side of the terminal.
B
C
DE
F
