TM-353 Page 28 Syncrowave 250

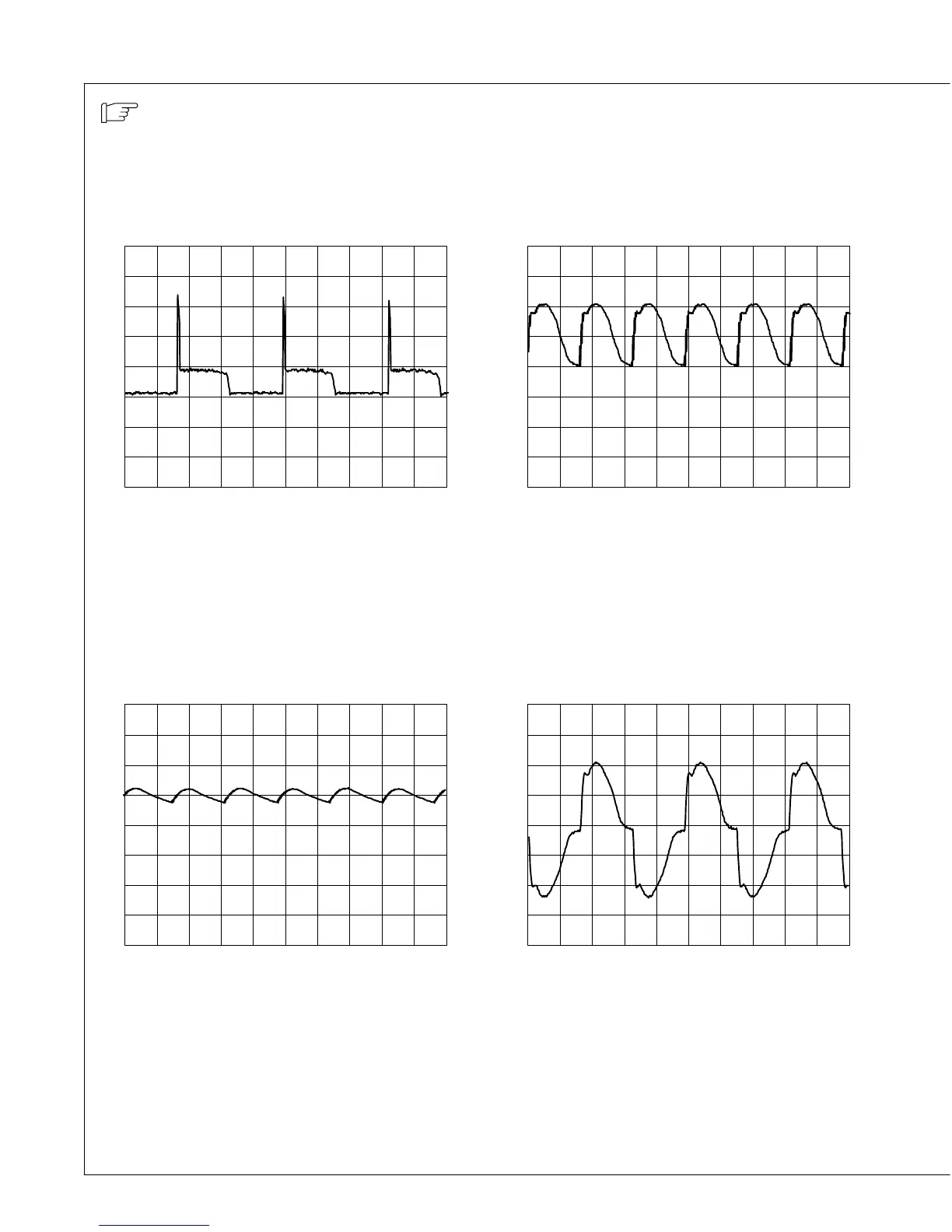

6-3. Waveforms For Section 6-2
Waveforms shown are for 60 Hertz models;
waveforms for 50 Hertz models are similar.
5 ms 1 V
A. SR1 Gate Pulse With Respect To Cathode
At No Load
5 ms 50 V
B. DC Open-Circuit Voltage With Amperage
Adjustment Control At Maximum
5 ms 20 V
C. DC Output, 100 Amperes, 24 Volts DC
(Resistive Load)
5 ms 50 V
D. AC Open-Circuit Voltage With Amperage
Adjustment Control At Maximum
gnd
gnd
gnd gnd
To Next Page
