TM-353 Page 30 Syncrowave 250

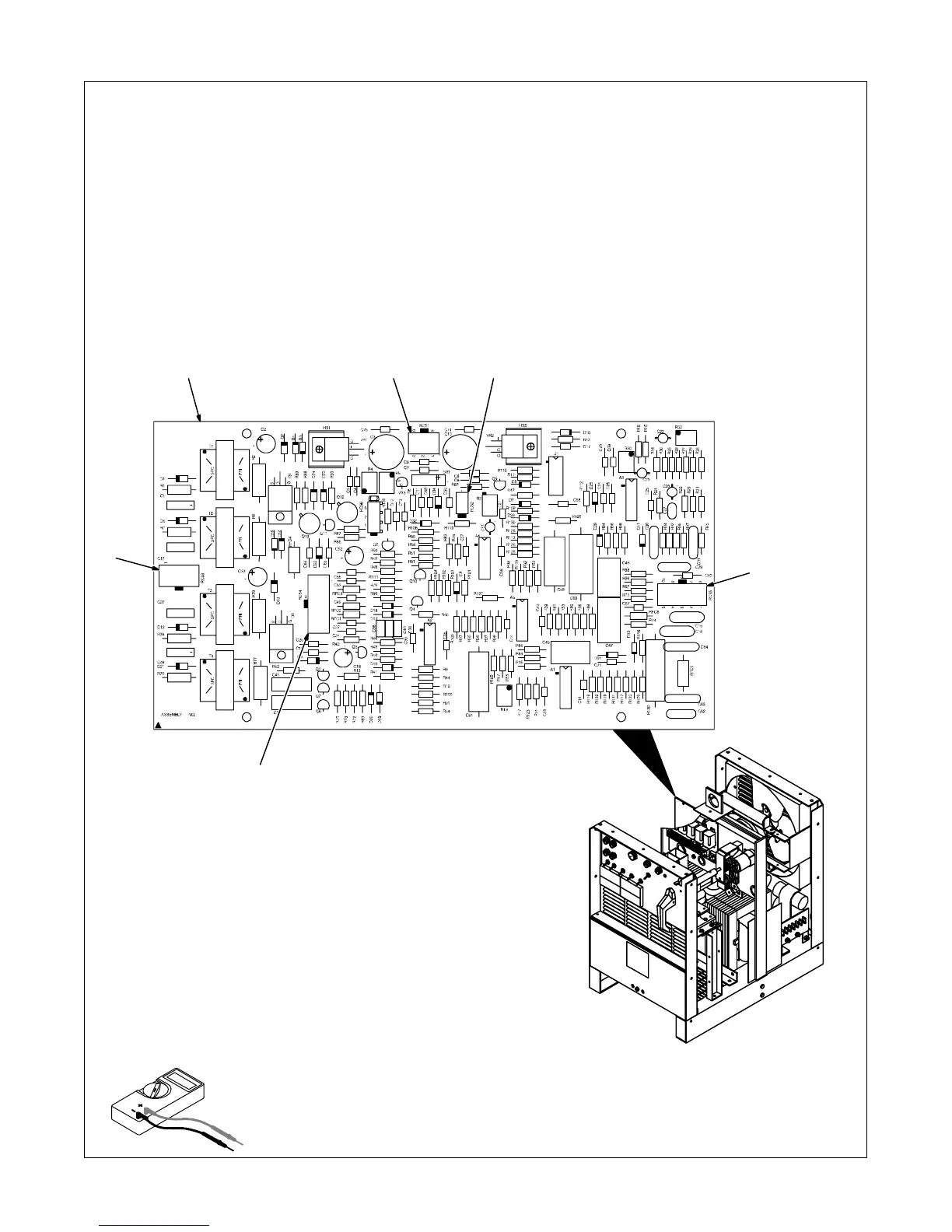

6-4. Control Board PC1 Testing Information (Use With Section 6-5)
SB-178 976-A / ST-800 344-A
Y Disable high frequency by
placing High Frequency
switch S2 in Off position
before testing unit.
Be sure plugs are secure before
testing. See Section 6-5 for specific
values during testing.
1 Control Board PC1
2 Receptacle RC51
3 Receptacle RC52
4 Receptacle RC53
5 Receptacle RC54
6 Receptacle RC55
Test Equipment Needed:
1 23
4
5
6
To Next Page
