OM-273245 Page 24

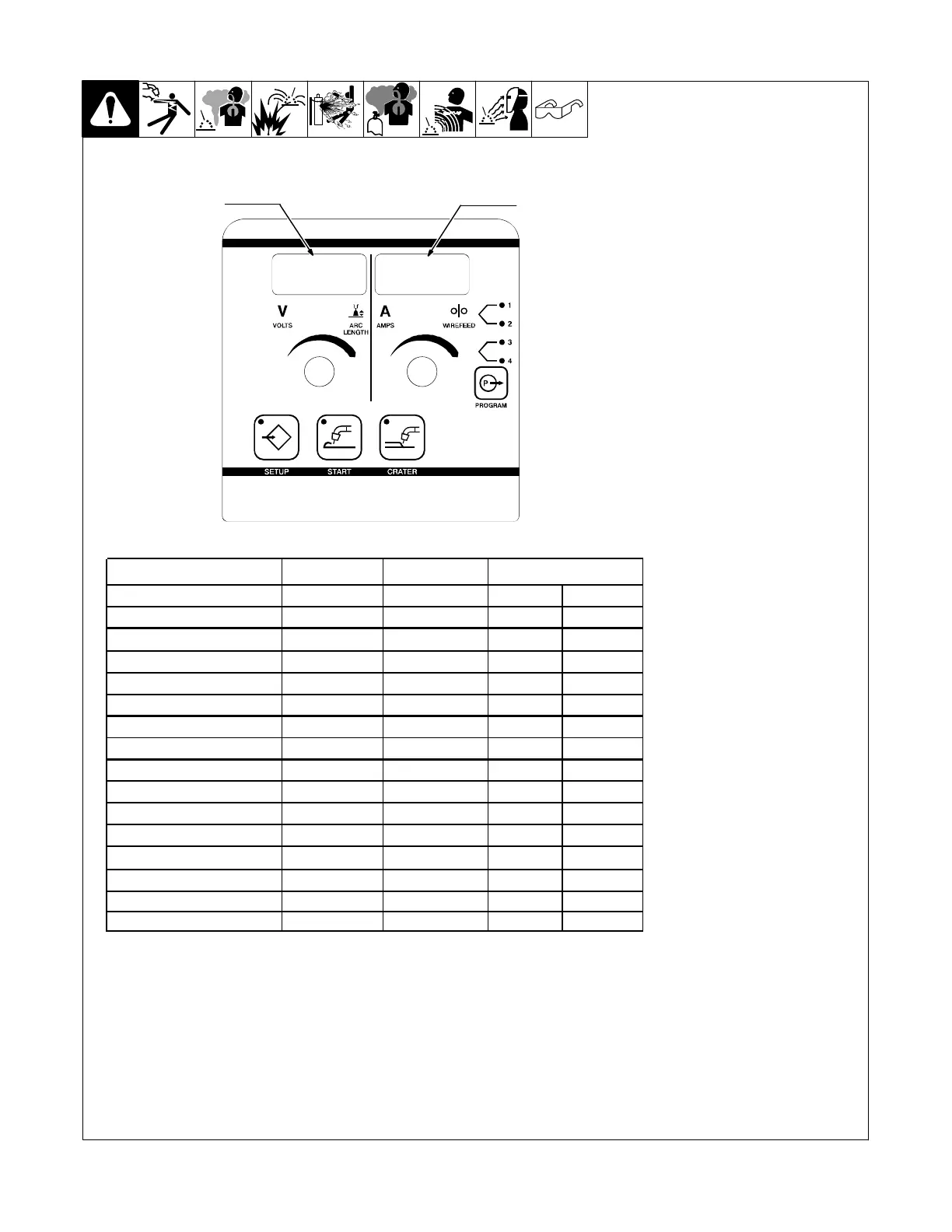

6-11. Power Source Selection Menu
. When the feeder is turned on,
the Power Source Selection
Menu allows the operator to se-
lect a default power source.
Selecting a default power
source, automatically sets the
correct Vmin and Vmax set-
tings for adjusting the output
voltage of the power source.
First Time Feeder Is Turned On
The feeder automatically goes into
the Power Source Selection Menu.
The feeder displays “MPA” on the
Left Display and “35X” on the Right
Display, meaning that a MPa 350
amp machine is the default power
source, and has a voltage range of
10V as Vmin and 38V as Vmax.
At power up, the operator has three
seconds to select a default power
source from the list shown on the
display. Operator may scroll
through the list of power sources by
using the Adjust control. After se-
lecting a power source the operator
has three seconds to change to a
different power source or begin
welding. When turning off the feed-
er, the default power source will be
retained.
Next Time Feeder Is Turned On
The feeder will display the last se-
lected default power source. The
operator has three seconds to se-
lect another power source, or press
the Program Button to exit the Pow-
er Source Selection Menu.
1 Left Display
2 Right Display
2
1
** For any power sources not listed, pick a matching voltage range or see
Section 6-6 to set Vmin and Vmax.
* * Power Source
Left Display
Right Display
Deltaweld 302 DELT 302 Vmin =10 Vmax =32
Deltaweld 452 DELT 452 Vmin =10 Vmax =38
Deltaweld 652 DELT 652 Vmin =10 Vmax =44
Dimension 302 DIM 302 Vmin =10 Vmax =32
Dimension 452 DIM 452 Vmin =10 Vmax =38
Dimension 652 DIM 652 Vmin =10 Vmax =65
XMT 304 XMT 304 Vmin =10 Vmax =35
Invision 456
XMT 456 XMT 456 Vmin =10 Vmax =38
Voltage Range
Invision/XMT 35X MPa
MPa 35X Vmin =10 Vmax =38
XMT 350 XMT 350 Vmin =10 Vmax =38
Dimension NT 450 DIM 450 Vmin =10 Vmax =38
Invision/XMT 450 MPa
MPa 450 Vmin =10 Vmax =38
INV
456
Vmin =10 Vmax =38
Invision 354
INV 354
Vmin =10
Vmax =35
Optima
OPT IMA
Vmin =10
Vmax =38
Custom
CUST PWR.S
Vmin =10 Vmax =38
Ref. 271 487-A
