OM-1216 Page 9
SECTION 2 – INSTALLATION
2-1. Specifications For Spoolmate 3035
Wire Diameter Range
Approximate
Wire Feed
Range
Cooling
Method
Maximum Spool
Size
Weld Circuit
Rating
Overall
Dimensions
Weight
.023 Thru .035 in
(0.8 Thru 0.9 mm)
Aluminum Wire
.023 Thru 035 in
(0.8 Thru 0.9 mm)
Hard Or Cored Wire
115 To 715 ipm
(4.1 To 20.4
mpm)
Air Cooled
4 in (102 mm)
Diameter
100 Volts, 150
Amperes, 60%
Duty Cycle
Using Argon
Shielding Gas
Length:
11-1/2 in (291 mm)
Width:
2-1/4 in (57 mm)
Height:
8 in (203 mm)
9.1 lb (4.1 kg)
Gun With Cable
2-2. Specifications For Spoolmate 3545
Wire Diameter Range
Approximate
Wire Feed
Range
Cooling
Method
Maximum Spool
Size
Weld Circuit
Rating
Overall
Dimensions
Weight
.030 Thru .047 in
(0.8 Thru 1.2 mm)
Aluminum Wire
.030 Thru 047 in
(0.8 Thru 1.2 mm)
Hard Or Cored Wire
200 To 1200 ipm
(4.1 To 20.4
mpm)
Air Cooled
4 in (102 mm)
Diameter
100 Volts, 200
Amperes, 60%
Duty Cycle
Using Argon
Shielding Gas
Length:
11-1/2 in (291 mm)
Width:
2-1/4 in (57 mm)
Height:
8 in (203 mm)
9.1 lb (4.1 kg)
Gun With Cable

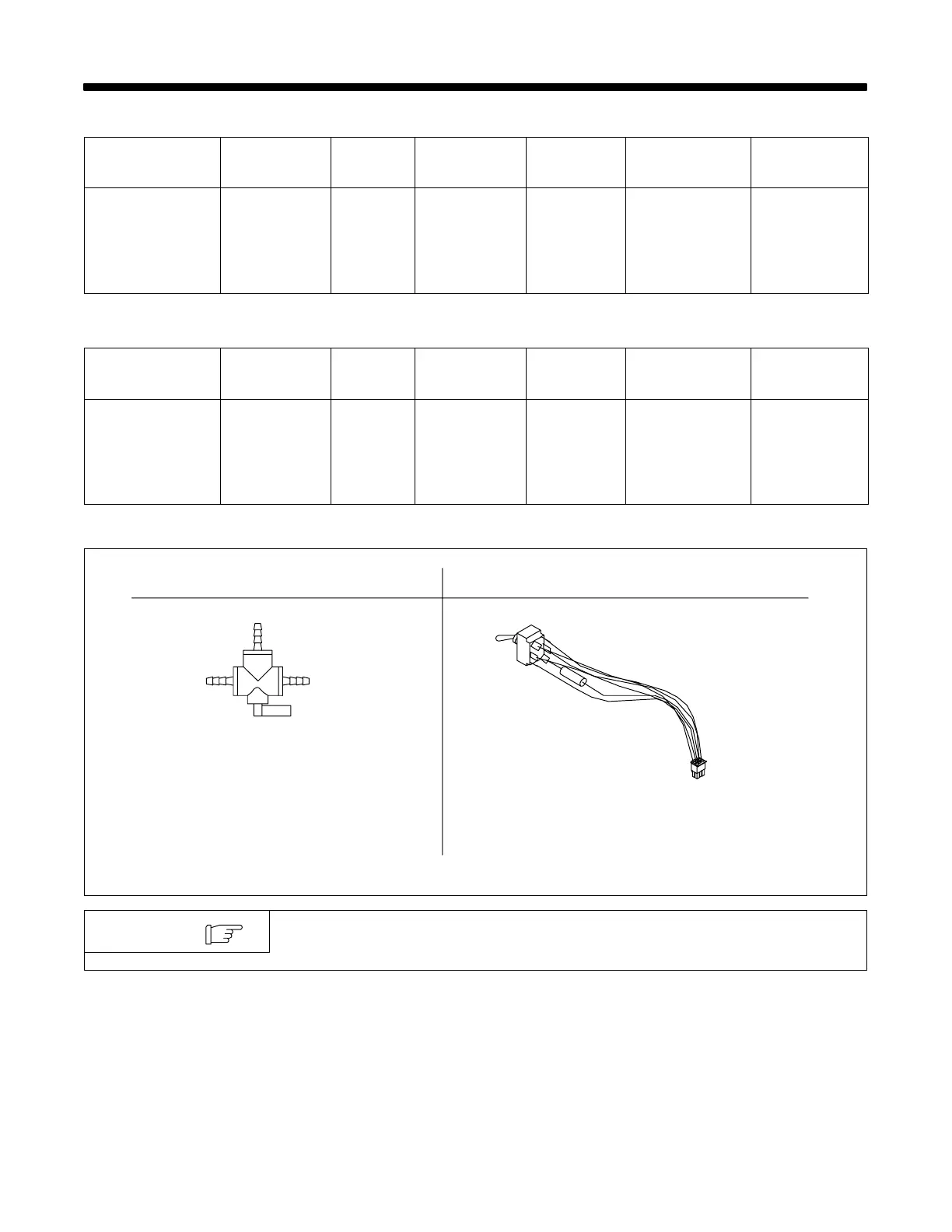

2-3. Components Supplied With Spoolgun
Ref. 801 890-A / Ref. 801 890-A
Gas Diverter Valve Spoolgun Toggle Switch Assembly
Valve Is NOT Needed
For Millermatic 210 Or
Millermatic Pulser
Switch Is Needed For
Millermatic 185, IronMan 210
And IronMan 250 (NOT required
for any machine that is using
the SGA 100)
See SGA 100 Owner’s Manual for installation instructions on machines not listed
in this manual.
NOTE
