OM-1216 Page 10

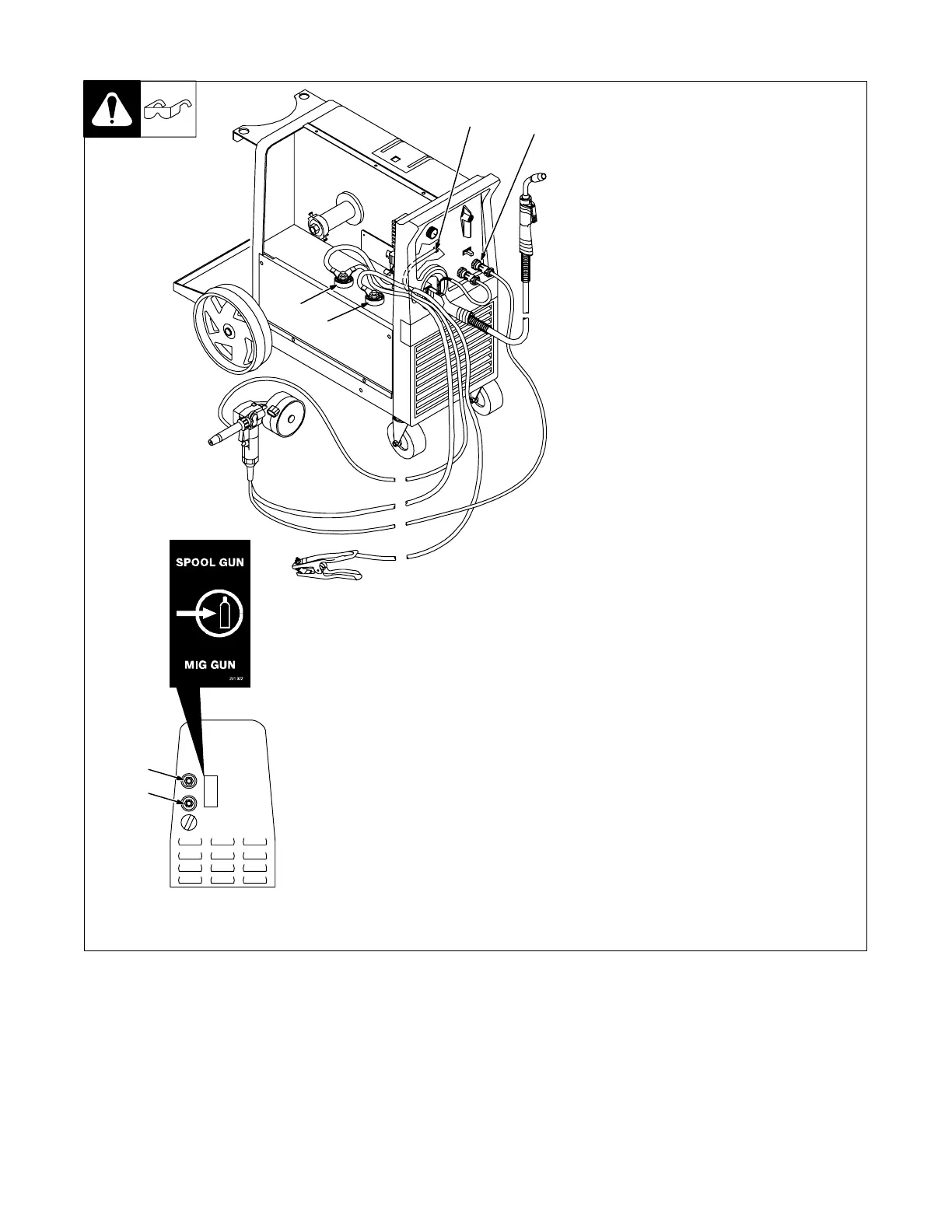

2-4. Connecting Spoolgun To Millermatic 210
1 Barbed Fitting
. If spool gun gas hose is
equipped with a pre-installed
barbed fitting, cut off fitting from
end of hose.
Connect spool gun gas hose to
barbed fitting.
2 Gun Trigger Plug
Insert plug into receptacle labeled
“SPOOL GUN”, and tighten
threaded collar.
3 Negative (–) Output Terminal
4 Positive (+) Output Terminal
Close door.
5 Welding Power Source Gas
Hose Connection For Spool
Gun
6 Welding Power Source Gas
Hose Connection For MIG
Gun
Connect gas hose between
regulator/flowmeter gas hose con-
nection, and fitting on rear of
welding power source.
3
802 998
1
2
4
Rear
Panel
5
6
To Next Page
