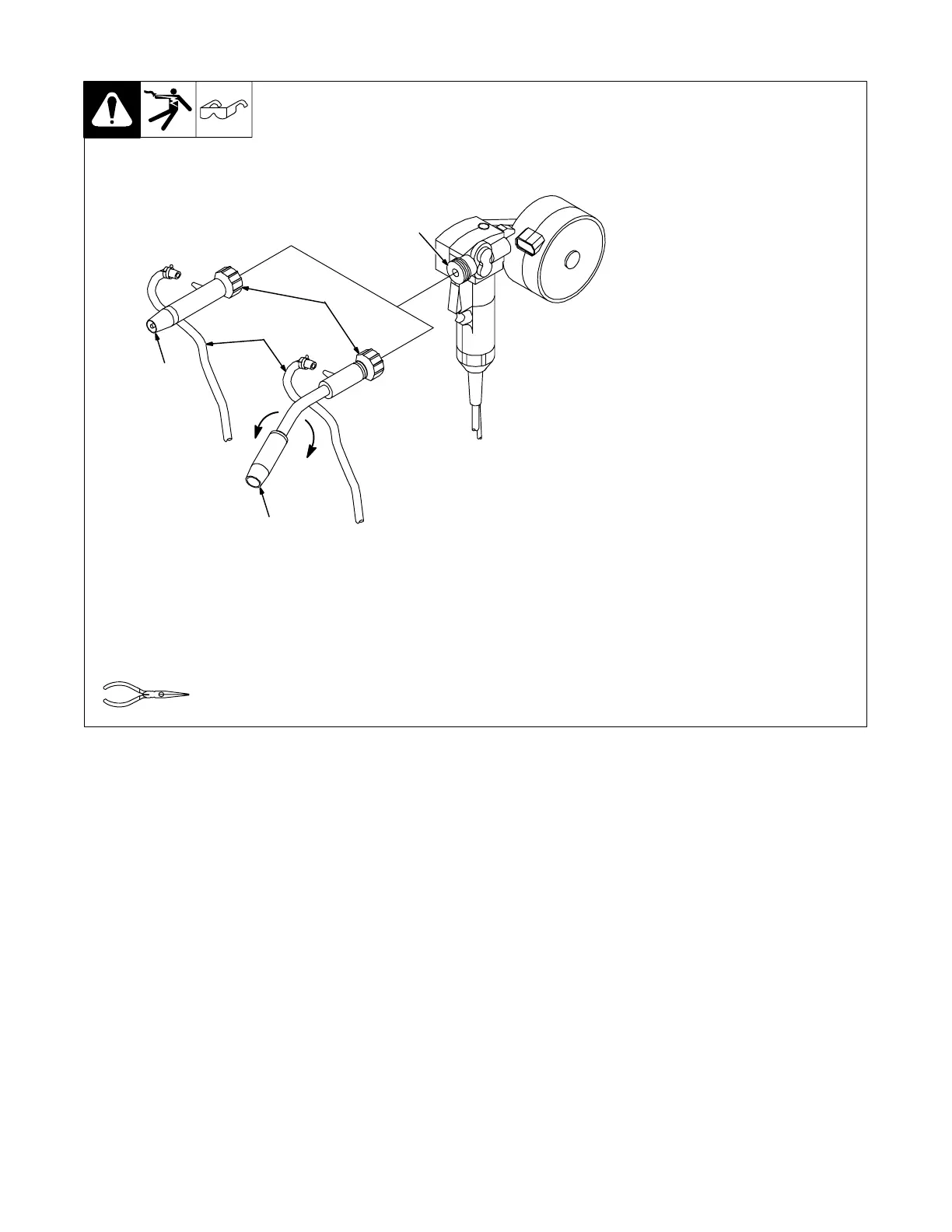

2-10. Installing Optional Curved Or Straight Barrel On Spoolmate 3035
801 889-B
Y Turn Off and disconnect
input power.
. If gun does not have a contact
adapter and existing barrel
does not have a locking nut,
proceed to Section 6.
1 Contact Adapter
Remove existing barrel from
contact adapter.
2 Gas Hose
Disconnect gas hose from gas
nipple.
3 Straight Barrel
4 Curved Barrel
5 Locking Nut
. Before tightening locking nut
on the curved barrel, the barrel
can be rotated to the desired
position.
Install either straight or curved
barrel onto contact adapter, and
tighten locking nut.
Connect gas hose to gas nipple.
Tools Needed:
1
2
5
3
4
