Introduction
3
Description of the system
The Milli-Q
®
IQ 7003/7005/7010/7015 manages the production and the distribution of pure
(Type 2) and ultrapure (Type 1) water from a tap water source. It is composed of three
dierent sections:
• Water purication unit manages the production of pure and ultrapure water.
• Point of dispense (POD) integrates the screen interface and manages the dispensing of pure
(E-POD
®
) and ultrapure (Q-POD
®
/Milli-Q
®
IQ Element) water. At least one Q-POD
®
is necessary
and up to 4 PODs can be installed, 1 E-POD
®
+ 3 Q-POD
®
or 4 Q-POD
®
.
• Storage tank stores and maintains the pure water quality.

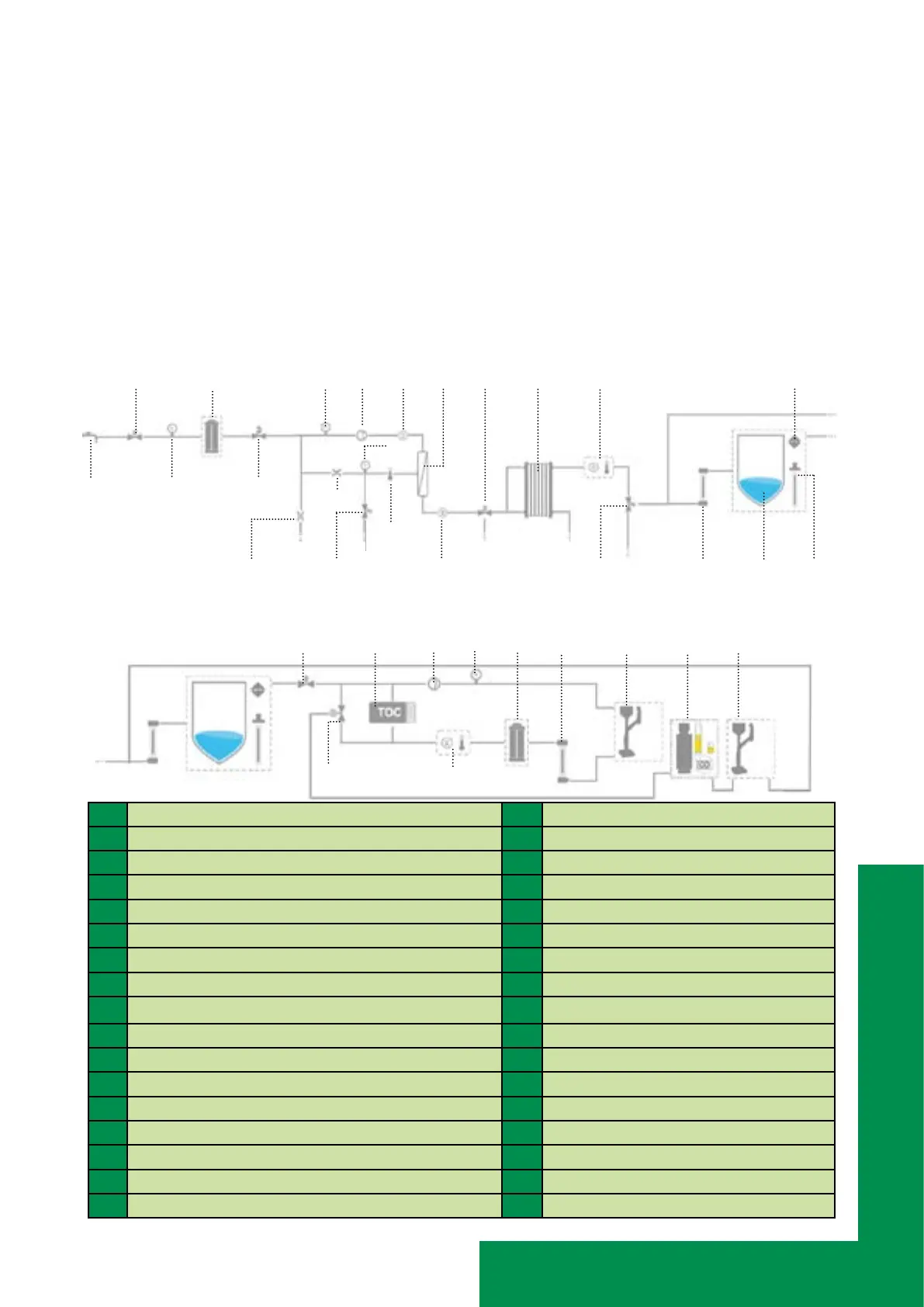

Systemow-schematics
The system is fed with tap water and the distribution loop is fed by a storage tank.
Production ow-schematic
Distribution owschematic
1
2
3 5
6 9
4
7
8
10 12
11
13
1 Tap Feed Water 18 Pure water Resistivity Cell
2 Inlet Solenoid Valve 19 Pure water 3 Ways Valve
3 System Feed Pressure Sensor 20 ech
2
o
®
bactericidal lamp
4 IPAK GARD
®
21 Storage Tank
5 Pressure Regulator 22 Vent Filter
6 Reverse Osmosis (RO) Reject Capillary 23 ech
2
o
®
ASM lamp
7 RO Pump Feed Pressure Sensor 24 Distribution Inlet Solenoid Valve
8 Flow Controller 25 Motorized Valve
9 RO Flush Solenoid Valve 26 TOC Monitor
10 RO Pump (bypass 180psi) 27 Distribution Pump
11 RO Pressure Sensor 28 Pressure Sensor
12 Feed Conductivity Cell 29 Ultrapure Resistivity Cell
13 Thermistor 30 IPAK QUANTA
®
14 RO membrane (1 or 2 depends on syst type) 31 ech
2
o
®
oxidation lamp
15 Permeate Conductivity Cell 32 E-POD
®
16 Permeate 3 Ways Valve 33 Milli-Q
®
IQ Element (optional)
17 Elix
®
EDI Module 34 Q-POD
®
14
15
16 17 18
19 20 21 23
22
24
25
26
27 28
29
30 31
32 33
34
