Pellicon
®
Single Pass TFF Accessories Installation and User Guide 13
Installation

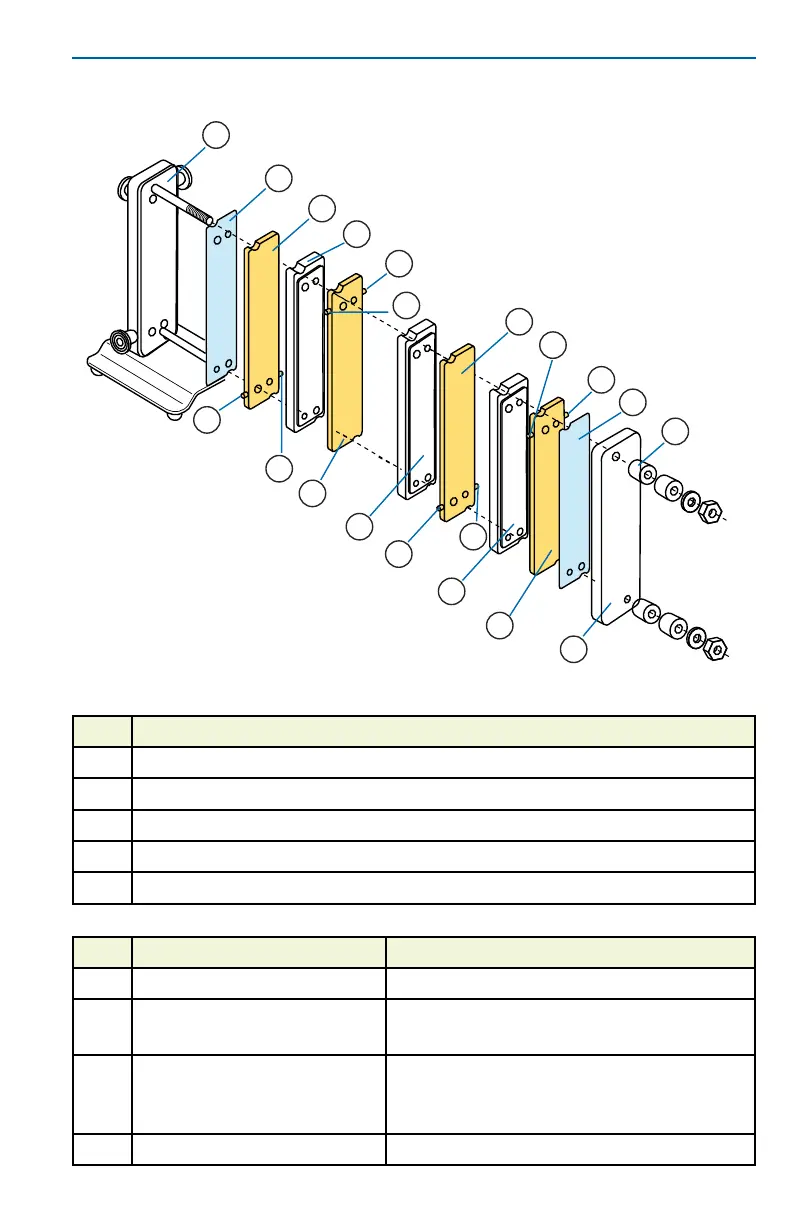

Components
Key Description
1 Holder end plate
2 Gasket
3 Pellicon
®
Single-Pass TFF Mini diverter plate
4 Pellicon
®
3 88 cm
2
or 0.11 m
2
Cassette
5 Tie rod spacer
Port Descriptions
Key Description User Supplied Connections
6 Feed/retentate ports Cap or pressure gauge with cap
7 Permeate ports
Hose barb for tubing connection
and optional valve
8 Retentate port
Pressure gauge with hose barb
and pinch clamp, for retentate
outlet tubing
9 Blind permeate port Cap
