26

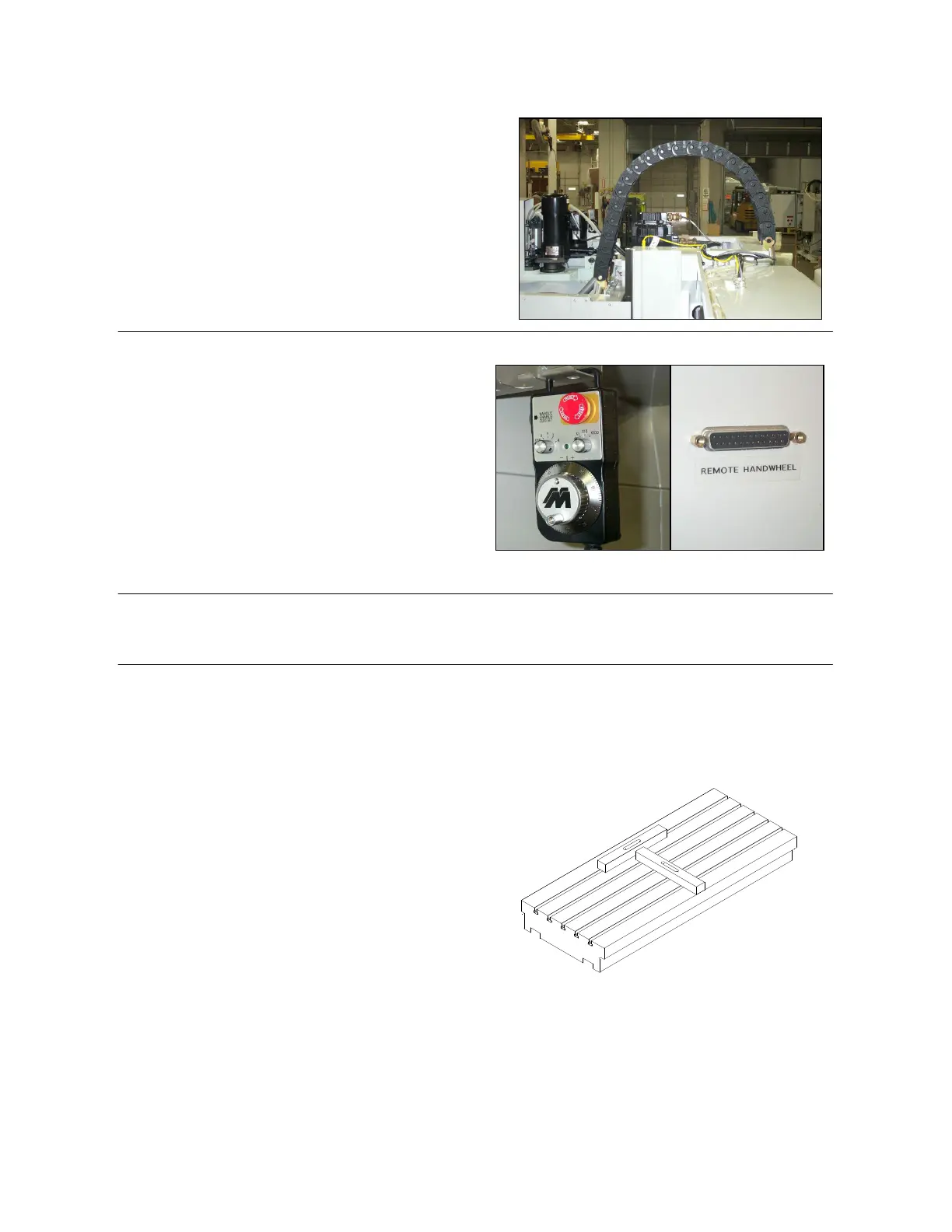

Install or adjust the Z-axis cable track as shown
(if applicable). In many cases this track is
loosened or removed for shipping.
Connect the remote hand controller (if
equipped) cable into the 25-pin “D-sub”
connector to the right side of the operator
panel.
Connect all remaining cables to their respective plugs on the machine.
Once the machine is in place and assembled this far, have the power and air supplies
connected by qualified personnel as described in chapter 1. See the safety checklist on
page 2 for qualifications.
Level the machine (rough level) in both side to
side and front to back directions.
