FUNCTIONAL & DISPLAY DESCRIPTION 13
Display Description MW151
pHmV
NO MTC ATC
USB
OPEN
AUTO
HOLD
SLOPE
CLEAR
CAL
1.68
4.01
6.86
7.01
9.18
10.01
12.45
CUST1
CUST2
DATE
ACCEPT
ºC
ºF
pH
mV
TIME
1
2
7
4
3
8
9
6
5
17
18
16
15
13
10
12
14
11

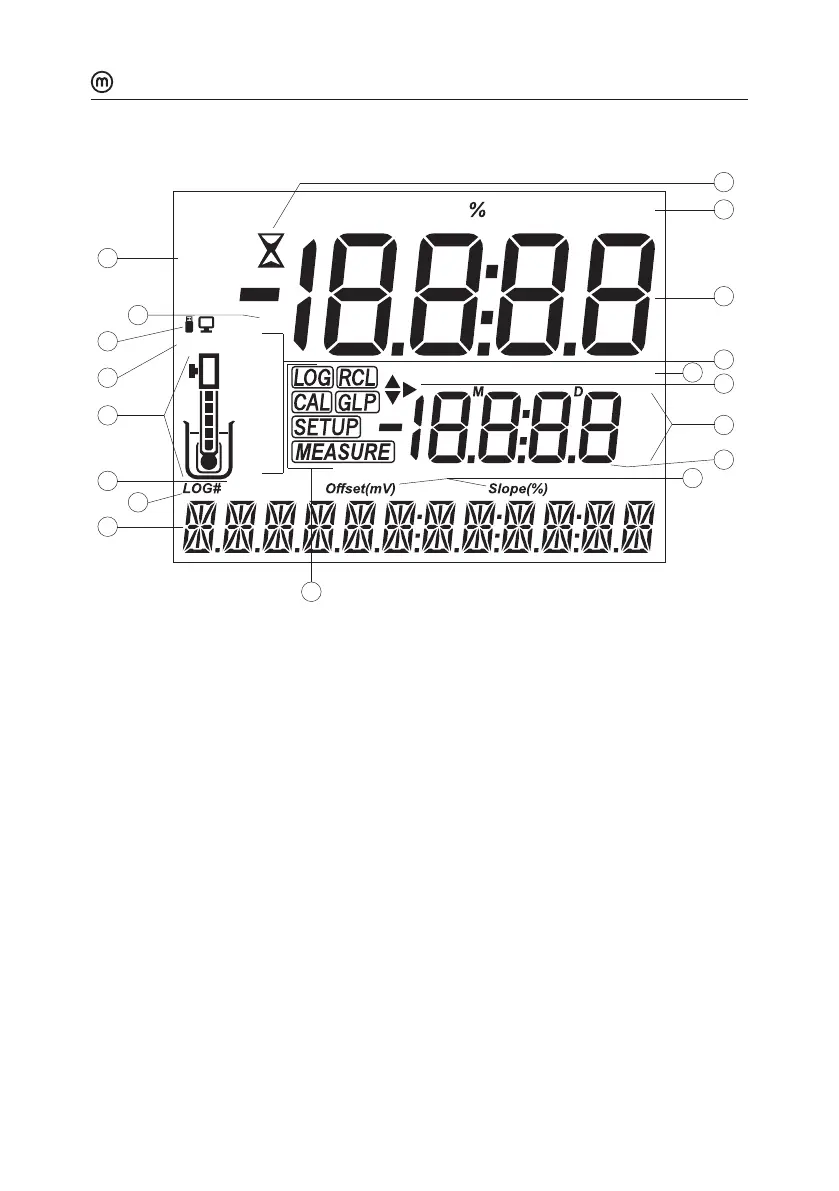

1. DATE tag
2. CLEAR message/calibration/memory
3. USB connections status
4. OPEN is displayed when electrode cap has to be removed.
Refill cap is displayed blinking before calibration.
5. Electrode symbol, filled in segments indicate electrode condition
6. ACCEPT tag
7. Log tag
8. Third LCD line, message area
9. Mode tags
10. Oset/slope indicators
11. Second LCD line, temperature measurement
12. Temperature and measurement units
13. Arrow tags, to help user select required information
14. Temperature compensation status (MTC, ATC)
15. pH calibration buers
16. First LCD line, measurement reading
1 7. Measurement units
18. Stability indicator
