7

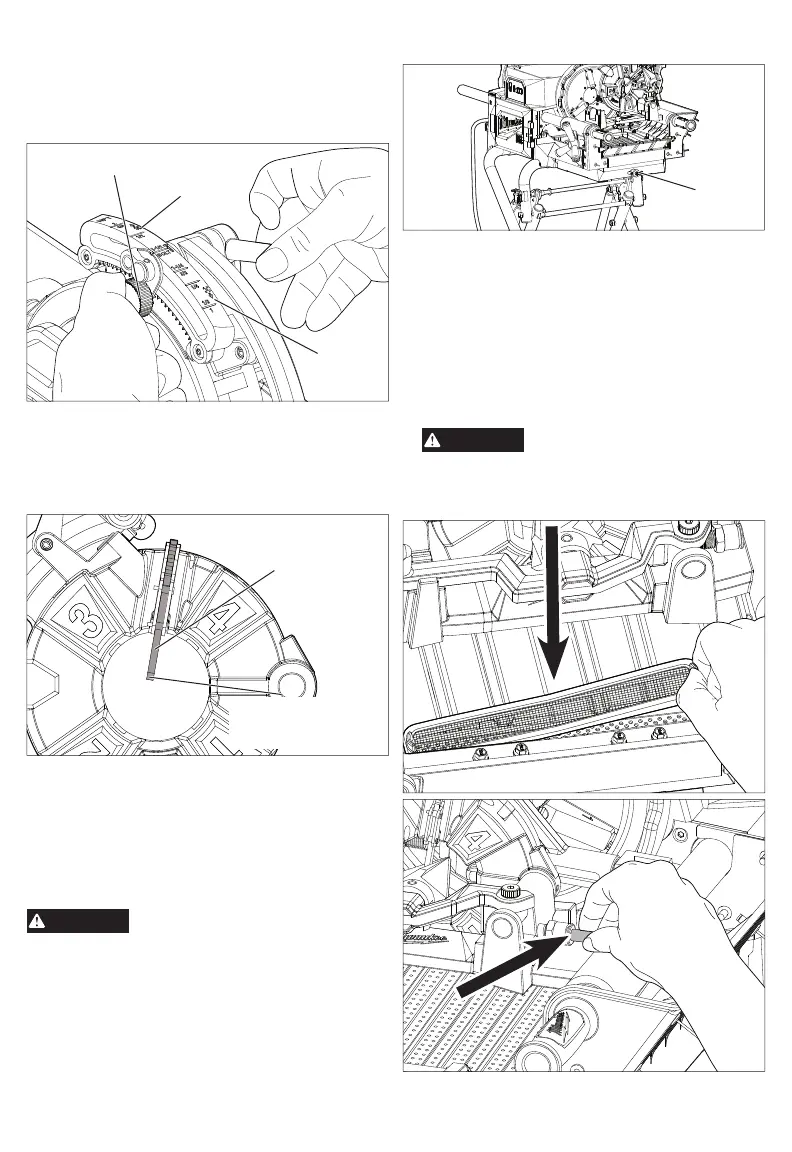

Adjusting Die Head
1. Remove battery pack.
2. Loosen clamp lever.
3. Slide the pipe scale to the desired size. Over has
a larger thread diameter removing more material.
Under is a smaller thread diameter removing
less material.
Micro adjustment knob
Over
Under
4. Use the micro adjustment knob to adjust to the
desired size.
5. Tighten clamp lever.
Auto-Opening Adjustment
Lift the die release lever up then slide the auto-opening
adjuster up or down for desired pipe size for threading.
1/2"and 3/4" pipe hits
auto-opening
adjustment here
1" to 2" pipe hits
auto-opening
adjustment here
• 1/2" and 3/4" - End of pipe should hit auto-
opening adjustment
• 1" to 2" - End of pipe should hit shank of auto-
opening adjustment
Do not use auto-opening adjustment for pipe sizes
1/8", 1/4", 3/8", longer or shorter threads, and bolt
threading. Slide the auto-opening adjustment upward
away from the pipe.
Thread Cutting Oil
WARNING
Filling/Draining the Oil Reservoir
1. Remove battery pack.
Drain
plug
2.
3.
Cleaning the Oil System
1. Remove battery pack.
2. Drain the oil.
3. Remove and empty the debris tray.
5.
Always remove battery pack
before changing or removing
accessories. Check oil level regularly. Add oil as
needed into the reservoir hole located under the
filter. The oil should drain into the reservoir hole
and not pool in the filter tray. Drain the oil every
three months and maintain a cleaning schedule
every six months. Use high quality threading oil to
fill the oil reservoir. The oil will keep the pipe
properly lubricated. Never run the machine without
thread cutting oil. Parts may become hot and cause
machine to overheat. If the pump sputters, change
the oil and clean out the oil system.
While pushing the plastic collar of the Push to
Connect fitting, pull the oil system tubing away
from the fitting.
To fill, ensure the drain plug is pushed in before
filling oil reservoir. Pour oil into the oil reservoir
located under the debris tray (see picture under
"Cleaning the Oil System" below).
To drain, pull oil drain plug. Let oil drain into a
suitable oil container. Dispose of the waste oil in
compliance with all applicable local regulations.
Contact your local waste management authority
for more information.
Do not touch the cutting chips
with bare hands immediately
WARNING
after using the machine; they may be hot and
sharp. The cutting chips could burn skin.
4.
Pull out and empty the filter located under debris
tray.
