9

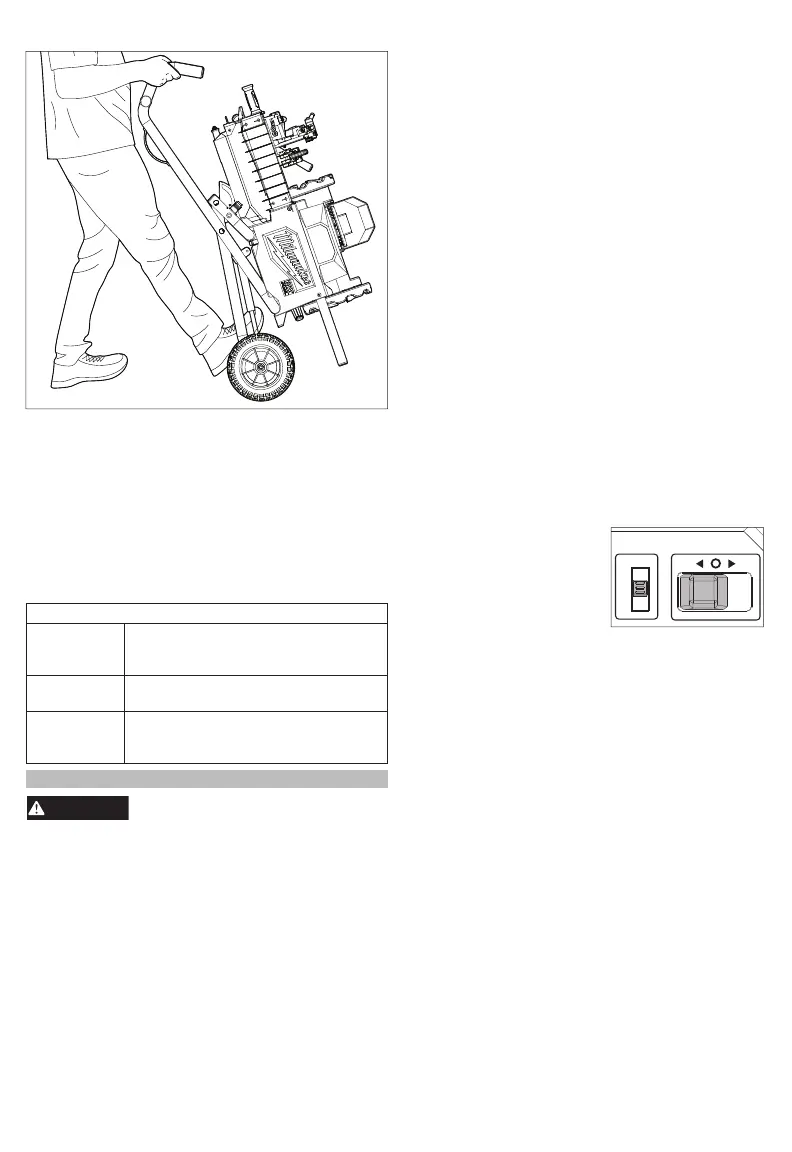

Vertical Storage Position
1. Remove battery pack.
2. Clean oil system.
3. Collapse cart.
4. Lift up and push pipe threader cart vertically.
ONE-KEY™
ONE-KEY™ Indicator
Solid Blue
Blinking Blue
Blinking Red
OPERATION
WARNING
1.
2.
3.
Insert the battery pack.
Press the Arm button. The MX FUEL™ icon will
light. The trigger will become armed in 2 seconds.
After 15 minutes of inactivity, the machine will enter
sleep mode. The MX FUEL™ icon will go off and
the trigger and LEDs are un-operational.
Setting Speed/Direction
4. Press and hold the Arm button for 1 second to
reactivate the machine.
5. Press and hold the ARM button for 1 second to
unarm (turn off ) the machine. The MX FUEL™
icon will go off .
Arming the Machine
The MX FUEL™ machines must be armed prior to
use. Even with the battery pack inserted, the trig-
ger and machine functions will not operate until the
machine is armed.
To arm the machine:
2
1
Operating the Machine
Low speed - Push down to
select 1.
High speed - Push up to
select 2.
Reverse - Push to the left.
Forward - Push to the right.
1. Make sure there is oil in the reservoir and correct
size dies are installed. Select the desired thread-
ing size on the pipe scale and set auto-opening
adjuster, if necessary.
2. Lift the cutter, die head, and reamer to open posi-
tion to install the pipe.
3.
Wireless mode is active and ready
to be configured via the ONE-KEY™
app.
Machine is actively communicating
with the ONE-KEY™ app.
Machine is in security lockout and
can be unlocked by the owner via
the ONE-KEY™ app.
To learn more about the ONE-KEY™ functionality
for this machine, please refer to the quick reference
included with this machine or go to
milwaukeetool.com.au/innovation/onekey/
To download the ONE-KEY™ app, visit the App
Store or Google Play from your smart device.
Do not wear gloves. Gloves may be entangled
by the rotating pipe or machine parts leading to
personal injury. Wear gloves only when
handling hot parts and not when the machine is
in operation.
Keep sleeves and jackets buttoned while
operating the tool. Do not reach across the tool
or pipe. Clothing can be caught by the pipe or
the tool resulting in entanglement.
Keep hands away from rotating pipe and
fittings. Stop the machine before wiping pipe
threads or screwing on fittings. Allow the
machine to come to a complete stop before
touching the pipe. This practice will reduce the
risk of entanglement in rotating parts.
Do not use the machine for other purposes
such as drilling holes or turning winches. Other
To reduce the risk of injury,
always wear proper eye
protection marked to comply with
AS/NZS 1337.1.
uses or modifying this machine for other
applications may increase the risk of serious
injury.
Do not use this machine without the debris tray
or filter.
Do not use this machine if the foot switch is
broken or missing. The foot switch provides
safe control of the machine, such as emergency
shutoff in case of entanglement.
Only one person must control the work process
tool operation, and foot switch. Additional
people involved in the process may result in
unintended operation and personal injury.
Turn the hammer chucks clockwise all the way.
4. Insert pipe into machine from the rear.
Neutral - Select centre
position "O".
