Maintenance Manual > Workflow > Ink Related Parts > Replacement of the Cap Assy
Model CJV30/TPC Issued 2008.08.04 Revised 2008.09.17 F/W ver. 1.20 Remark
1.1

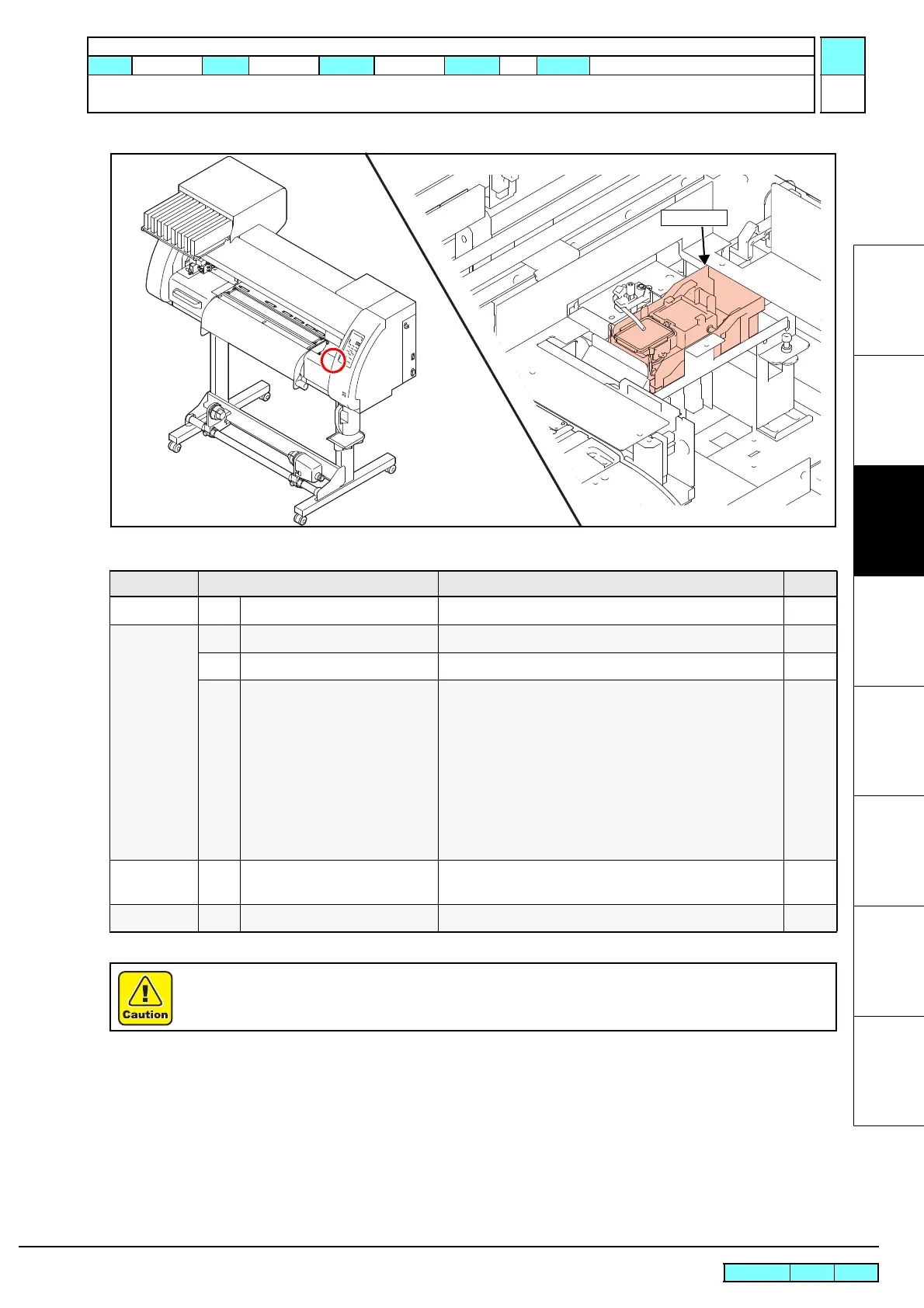

3.1.2 Replacement of the Cap Assy
List of replacement procedures
Item Work operation Description Ref.
Covers
1.
Removal of covers, etc. Remove the station cover U, W ink guard and wiring cover. 6.1.1
Cap Assy
2.
Removal of the cap assy. Remove the cap assy while pushing the PC pipes to the side. 6.2.6
3.
Mounting of the cap assy. Attach the cap assy while pushing it toward you. 6.2.6
4.
Adjustment of the capping Carry out “CAPPING” (by using the key) [# ADJUST].
CAPPING POS: 3 mm to the right from the uppermost
position of the cap slider.
AirPullPOS.: The point exactly where the head comes
into contact with the cap (left end)
FlushingPOS: Position of the head and the left end of
the cap, which sets the clearance
between them at 1 mm.
WiperPOS(X): The point where the center of the wiper
is aligned with the center of the head
4.2.5
Check
5.
Cleaning operation Check whether each assembly and adjustment has been carried
out properly by conducting [WIPER CLEANING] operation.
Covers
6.
Mounting of the covers. Mount the covers that have been removed. 6.1.1
Be sure to wear protective glasses and working gloves during the operation.
Ink may get into your eyes depending on the working condition, or hand skin may get rough if you touch
the ink.
