Mindray Anesus Zeus Service Manual

Part II General Information
Structure and Assembly/Disassembly 182
5.2.5 Equipment body

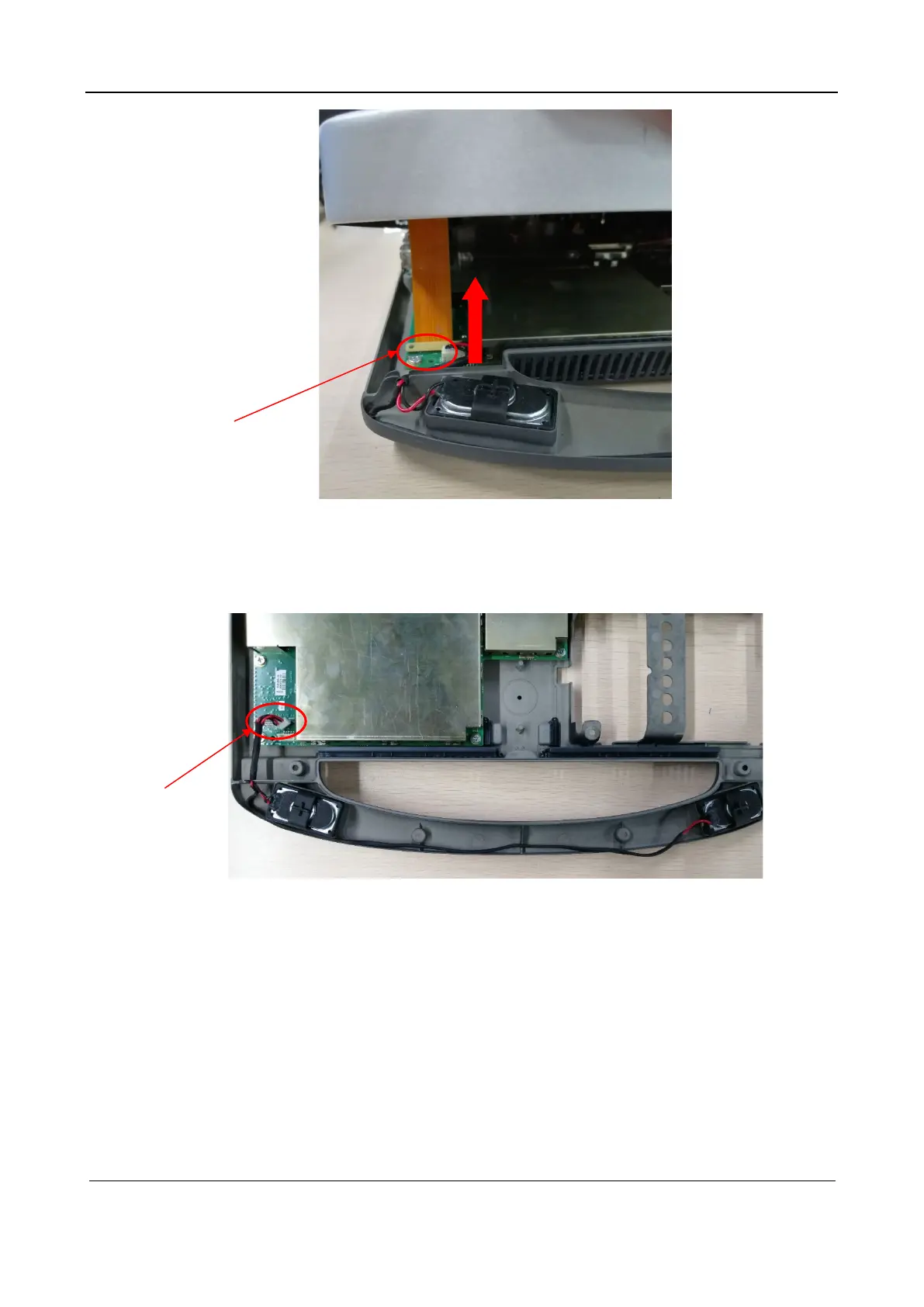

1. Speaker
Put the detached equipment body on a table and remove the speaker cable to detach the speaker.
2. 4D/TEE/CW board
Use a screwdriver to remove the three M3X14 cross recessed panhead screws, and lift the
4D/TEE/CW board upwards vertically.
FPC flat cable between
the main board and the
control panel
Speaker cable

Mindray Anesus Zeus Specifications

General

Brand	Mindray
Model	Anesus Zeus
Category	Diagnostic Equipment
Language	English
