5-36 Image Optimization

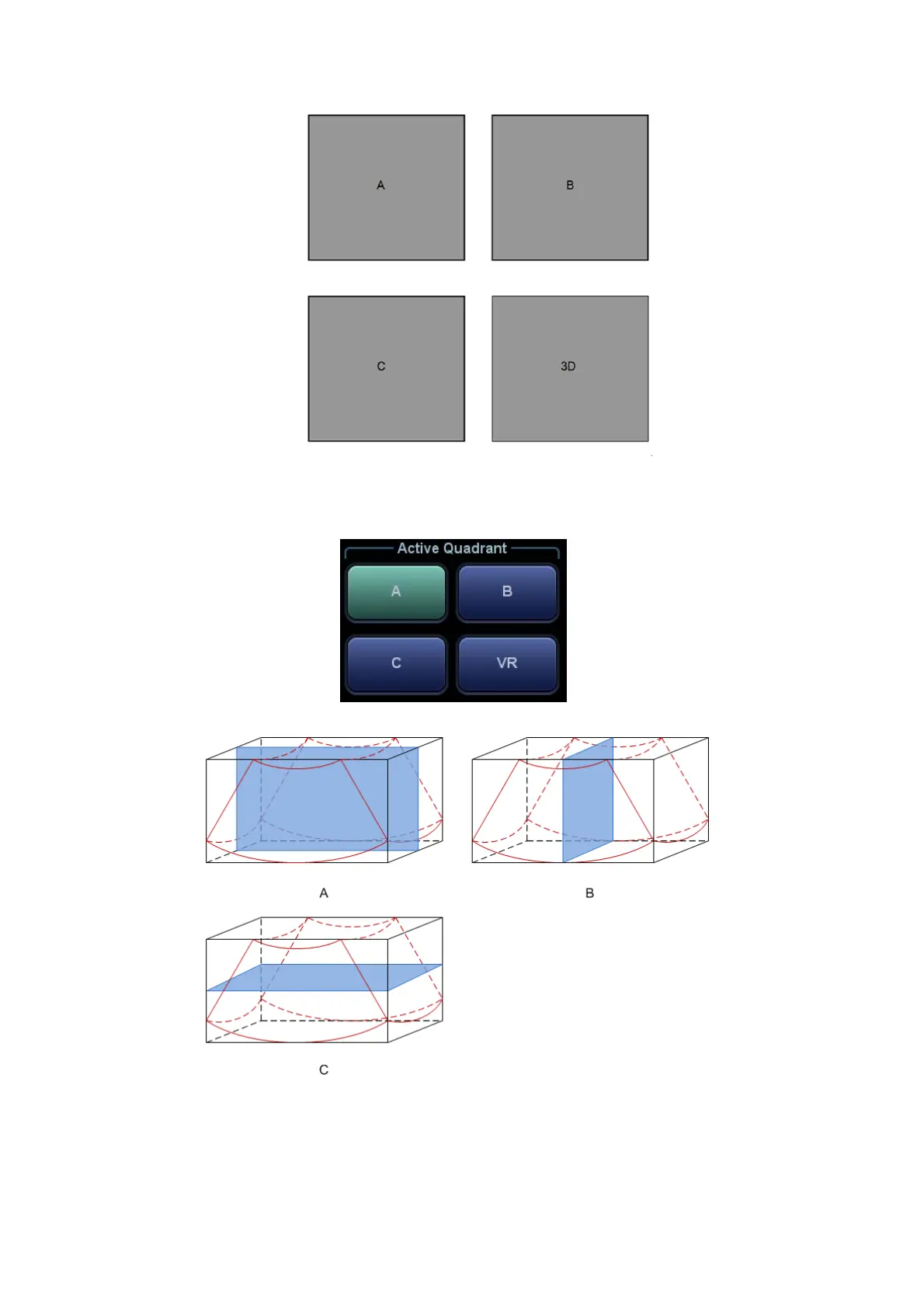

On the touch screen, the current window’s icon is highlighted, as shown below. Window A is the
currently activated window.
A, B and C sectional images correspond to the following sections of the 3D image.
Section A: corresponds to the 2D image in B mode. Section A is the sagittal section in fetal
face-up posture, as shown in Figure A above.
Section B: is the horizontal section in fetal face-up posture, as shown in Figure B above.
Section C: is the coronal section in fetal face-up posture, as shown in Figure C above.
A window
B window
C window
3D window (VR)
