DICOM/HL7 11-15
3. After finishing the presets, perform image scanning. Each time <End Exam> is pressed on the
control panel, the system will send the image to the default DICOM storage server for storage
and send storage commitment to the storage commitment server.
If images are successfully sent to the storage server, the storage commitment server will
return information about the successful image storage. In the iStation screen, you will see a
tick “√” marked in the list below
.
Tip:
Storage commitment is confined to the whole exam. Not each image sending can be indicated.
NOTE:
Multi-frame storage is not allowed if “Allow Multiframe” is not selected ([Setup] →
[DICOM/HL7] → [Set DICOM Service] → “Storage”). For example, even if there is a
multi-frame file in the exam to be sent, only single-frame image storage will be
performed. After the storage is complete, there is no “√” marked in the list below
in
the iStation screen.

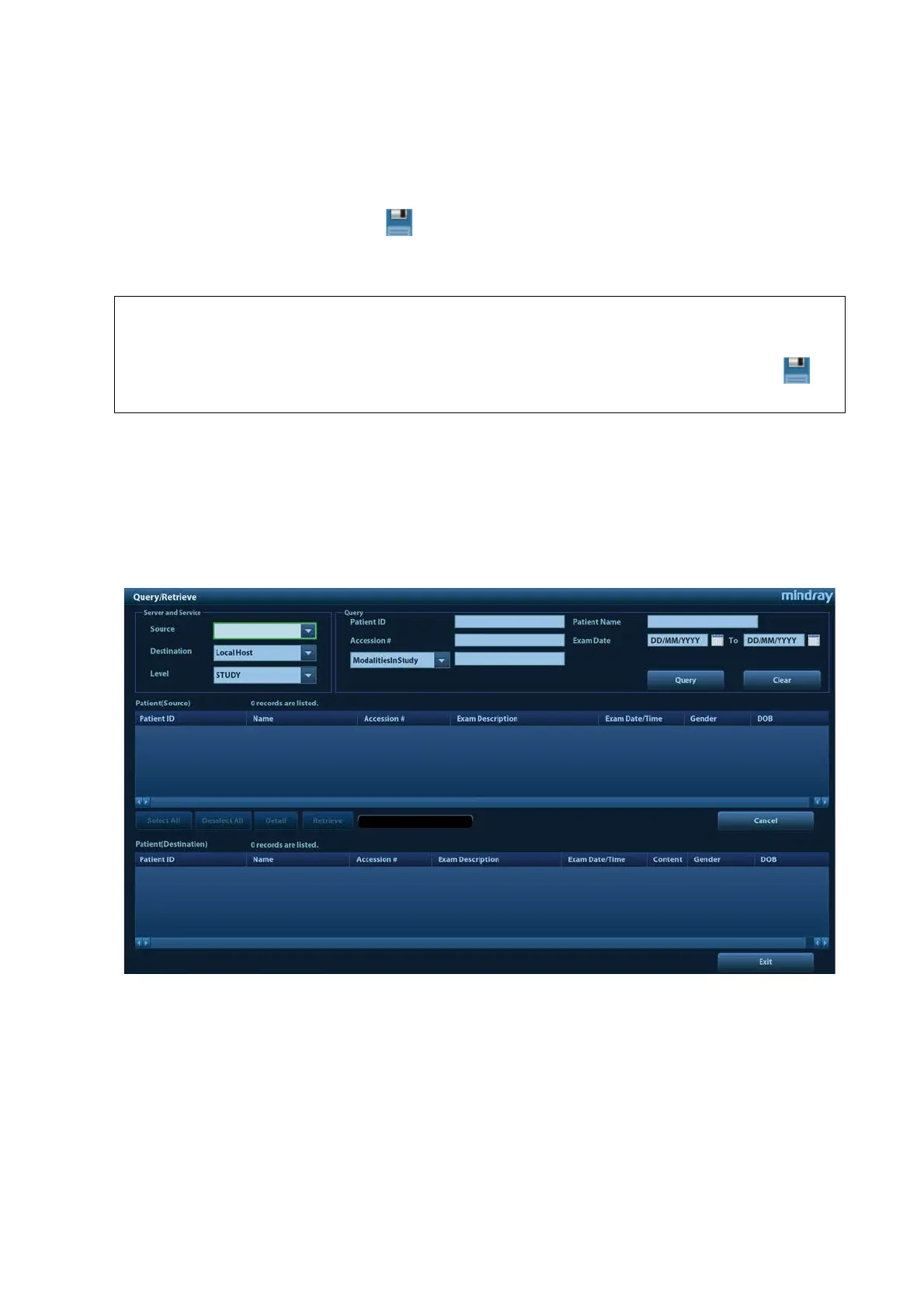

11.3.6 Query/Retrieve
The query/retrieve function is used to query and retrieve patient exam records in a designated server.
After setting the DICOM query/retrieve server, you can perform the query/retrieve function in the
iStation screen.
1. Open the iStation screen: press <iStation> on the control panel.
2. Click [Query/Retrieve] to open the screen.
1. Select the server in “Server and Service” area (source, destination, and level).
Select Level from the drop-down list:
Study: search by exams;
Series: search by file types, such as US or SR.
2. Enter the query information, such as Patient ID, Patient Name, Accession #, Exam Date, or
other patient properties from the drop-down list.
Click [Clear] to empty the entered query information.
