13-28 Probes and Biopsy

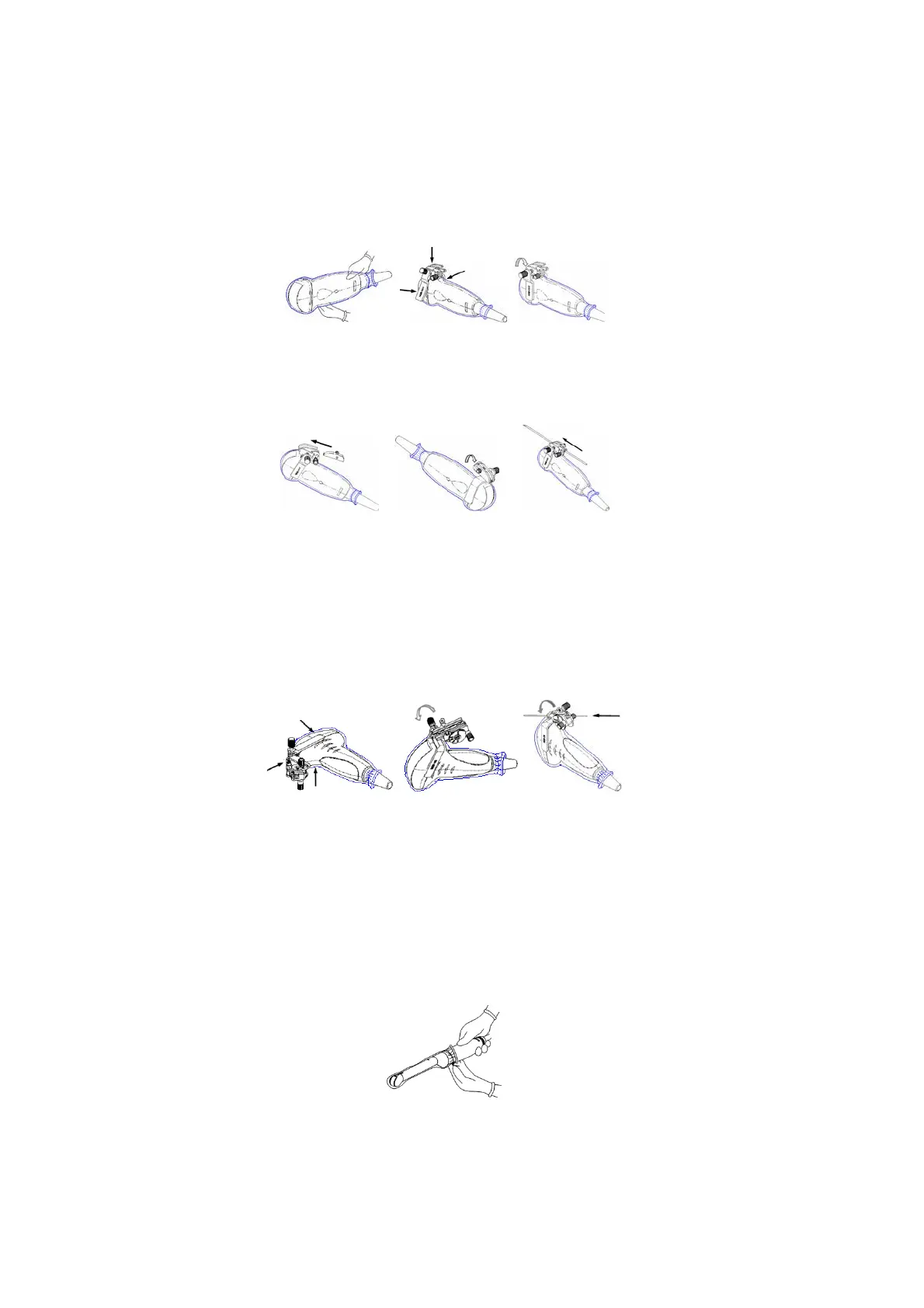

NGB-018
(1) Put the sterile probe sheath on.
(2) Select a suitable needle-guided bracket and match the groove to the tab of the transducer.
Mount the bracket onto the transducer. The needle-guided brackets may be different from
each other, but the methods are the same.
(3) Screw the pinch nut of the needle-guided bracket to ensure that the needle-guided
bracket is properly installed on the transducer.
(4) Select a suitable guiding block and push it into the groove above the angle block.
(5) Screw the block's nut to secure the block.
(6) Insert a biopsy needle with the same specification as that of the guiding block into the
guiding block hole.
NGB-022
(1) Put on the sterile transducer sheath.
(2) Hold the transducer by one hand, select the proper needle-guided bracket, and hold it with
the other hand. Match the groove of the bracket with the tab of the transducer. Amount the
bracket onto the transducer.
(3) Screw the pinch nut of the needle-guided bracket to confirm that the needle-guided
bracket is properly installed on the transducer.
(4) Adjust the dial scale to the required needle type shift, and then screw the needle fixing nut
to lock the dial scale. (To adjust the dial scale you have to loose the needle fixing nut first.)
(5) Pull the lock pin and close the V-shaped cover to fix the lock pin in the groove of the
needle type adjusting base, so as to install the needle into the guiding hole.
NGB-025
1. Put on the sterile probe sheath.
2. Open the clamp. Insert the front clamp to the front groove.
To Next Page
