Overview

1.3.2Exploded view of the complete machine

1.3.2.1Exploded view of the complete machine

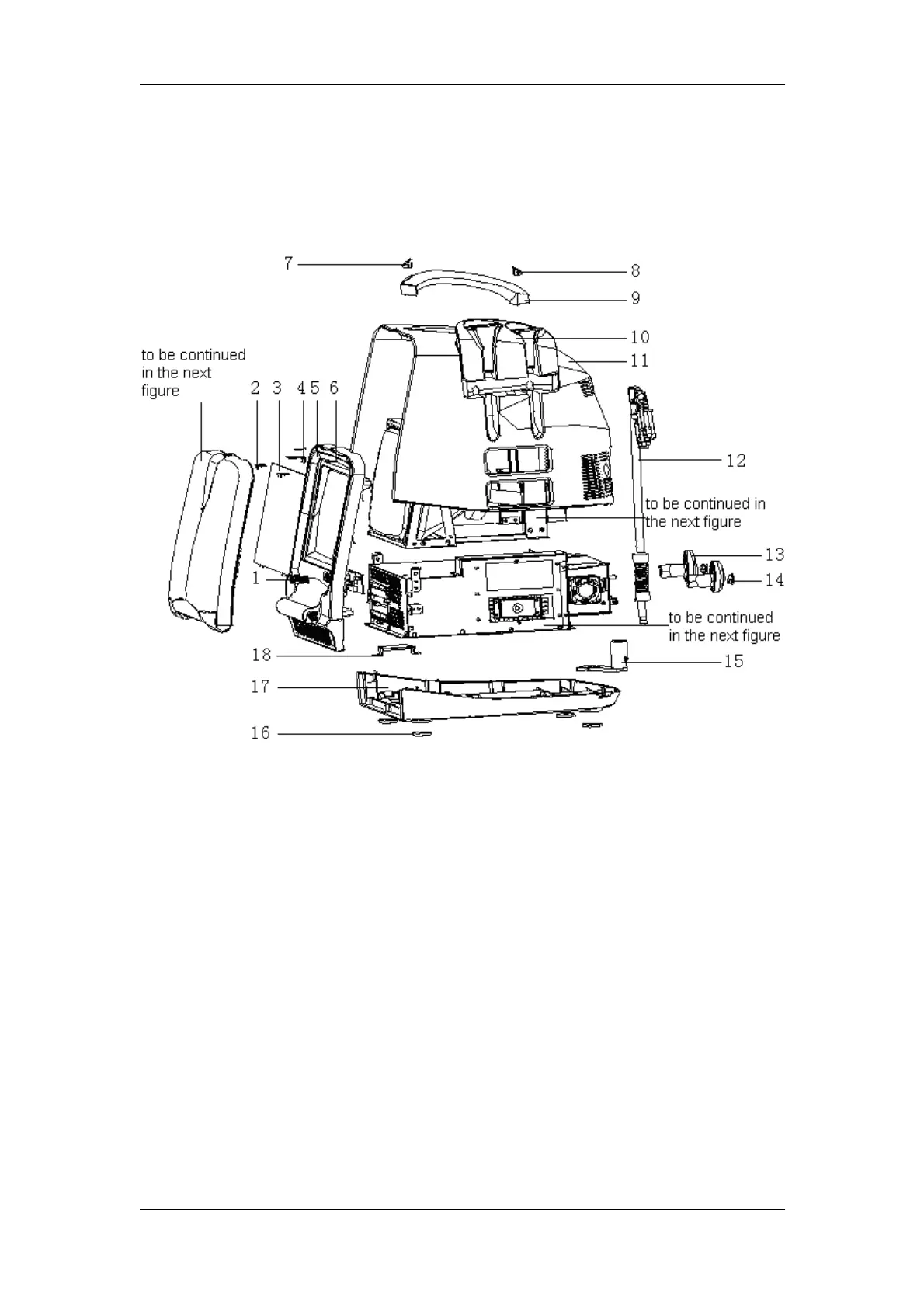

Figure 2-3 Exploded view of the complete machine

1.3.2.2Components of the complete machine

1 knobs of the monitor 2302-20-29084 2

2 screen filter fixing buckle 9901-20-23950 2

3 screen filter 2302-20-34425 1

4 keyboard hook 2302-20-29092 1

5 front cover 2302-20-34401 1

6 anti-collision pad of keyboard 2302-20-29091 2

7 rubber cap A of the handle 2302-20-34471 1

8 rubber cap B of the handle 2302-20-34472 1

9 handle 2302-20-34470 1

10 transducer holder 2302-20-29082 1

11 rear cover 2302-20-29079 1

12 transducer cable hook 2102-30-16949 1

13 cable winding rack 2302-20-29083 2

2-2 DP-3300/DP-3200 Service Manual（V1.1）
