Structure and Assembly/Disassembly of the Machine
Figure 2-10 Remove the rear cover
Uplift the tail of the rear cover forcibly;
Move the rear cover backwards to remove it.
1.4.2Disassembly of the cabinet tail board
1. Remove the rear cover;
2. Disconnect the fan connector of the tail board;
3. Remove 8 M3X6 screws fixing the tail board and 2 M3X6 screws fixing the main
board;
4. Disconnect the power wire connector, move the tail board backward to take it
out.

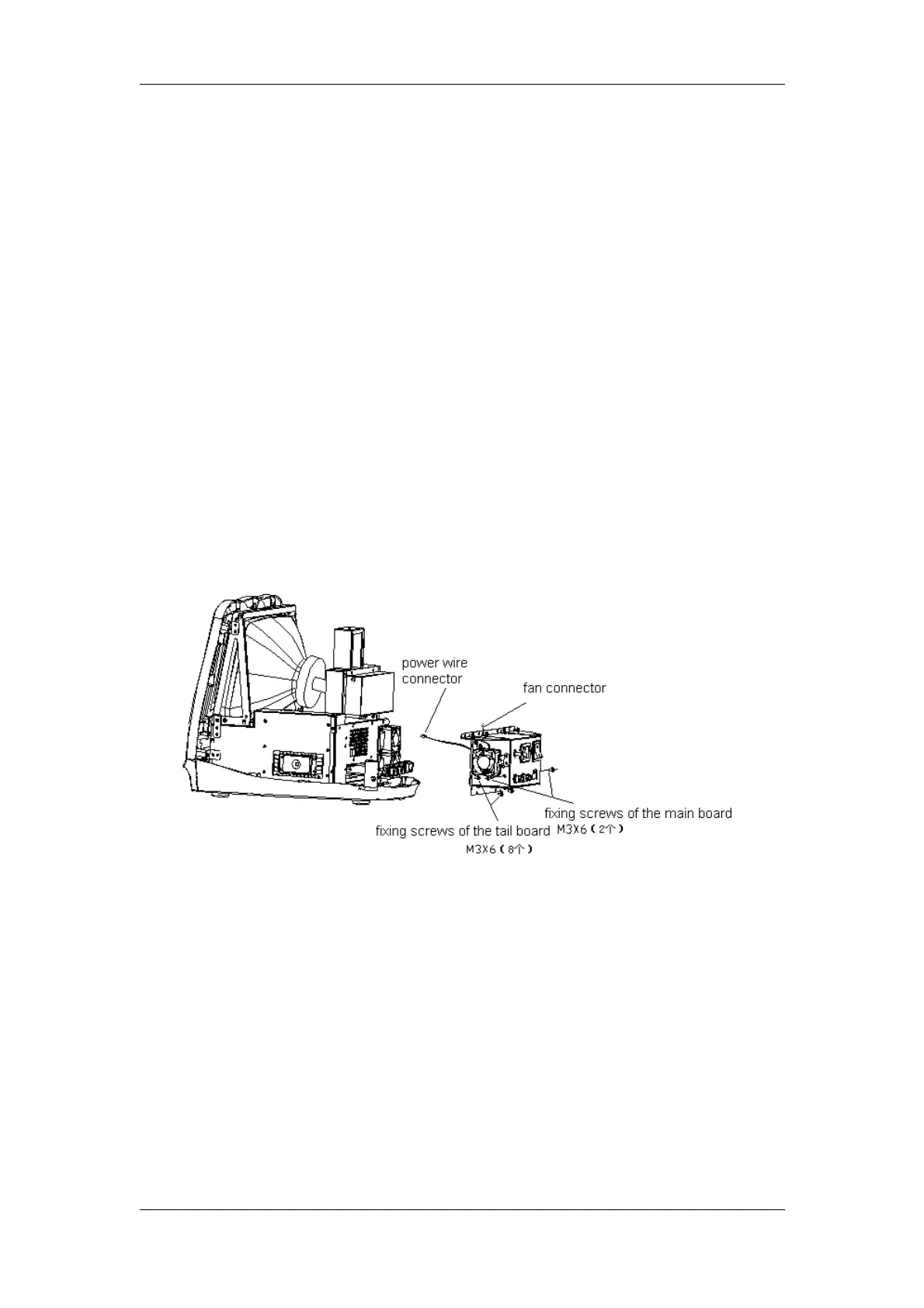

Figure 2-11 Disassembly of the cabinet tail board
1.4.3Disassembly of the cabinet rear cover
1. Remove the assembly of the cabinet tail board;
DP-3300/DP-3200 Service Manual（V1.1） 2-9
