Structure and Assembly/Disassembly of the Machine
18 power socket
2302-21-29147
1
19 power switch 2100-10-07943 1
20 main board connector
2302-20-29208
1
21 digital board 2302-30-34403 1
22 main board support
2302-20-29110
1
23 shield spring 2302-20-29245 2
24 transducer board shield cover
2302-20-29198
1
25 transducer board 2302-30-34407 1
26 transducer socket fixed plate
2302-20-29101
1
27 shield spring A 2102-20-16918 4
28 shield spring B
2102-20-17113
4
29 transducer socket fastener 2302-20-29199 2
1.4Disassembly
1.4.1Disassembly of the rear cover
1. Remove the transducer cable hook

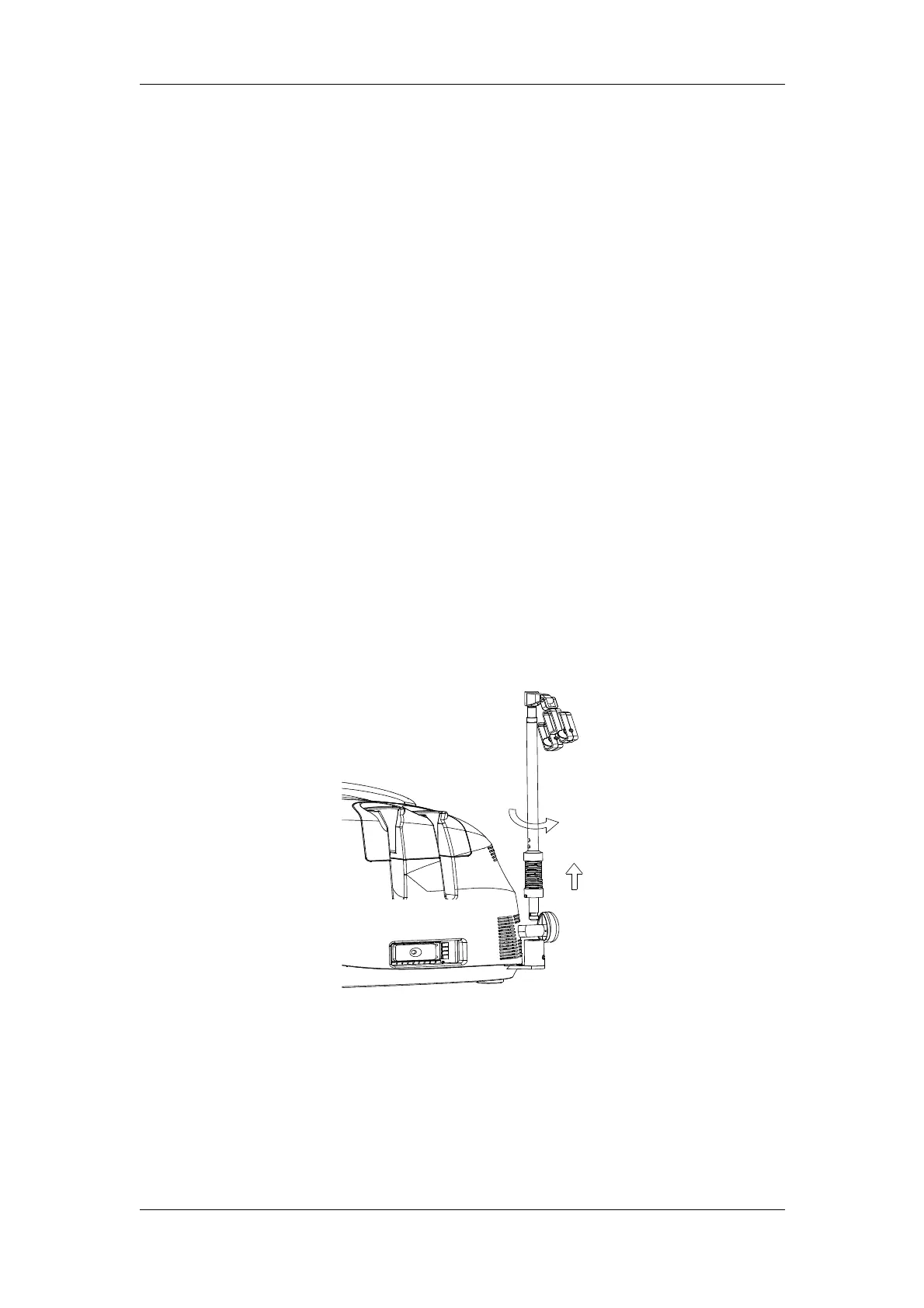

Figure 2-8 Disassembly of the rear cover
Turn the transducer cable hook clockwise to the end;
Take out the transducer cable hook upward.
2. Remove the handle and the winding rack
DP-3300/DP-3200 Service Manual(V1.1) 2-7
