Structure and Assembly/Disassembly of the Machine

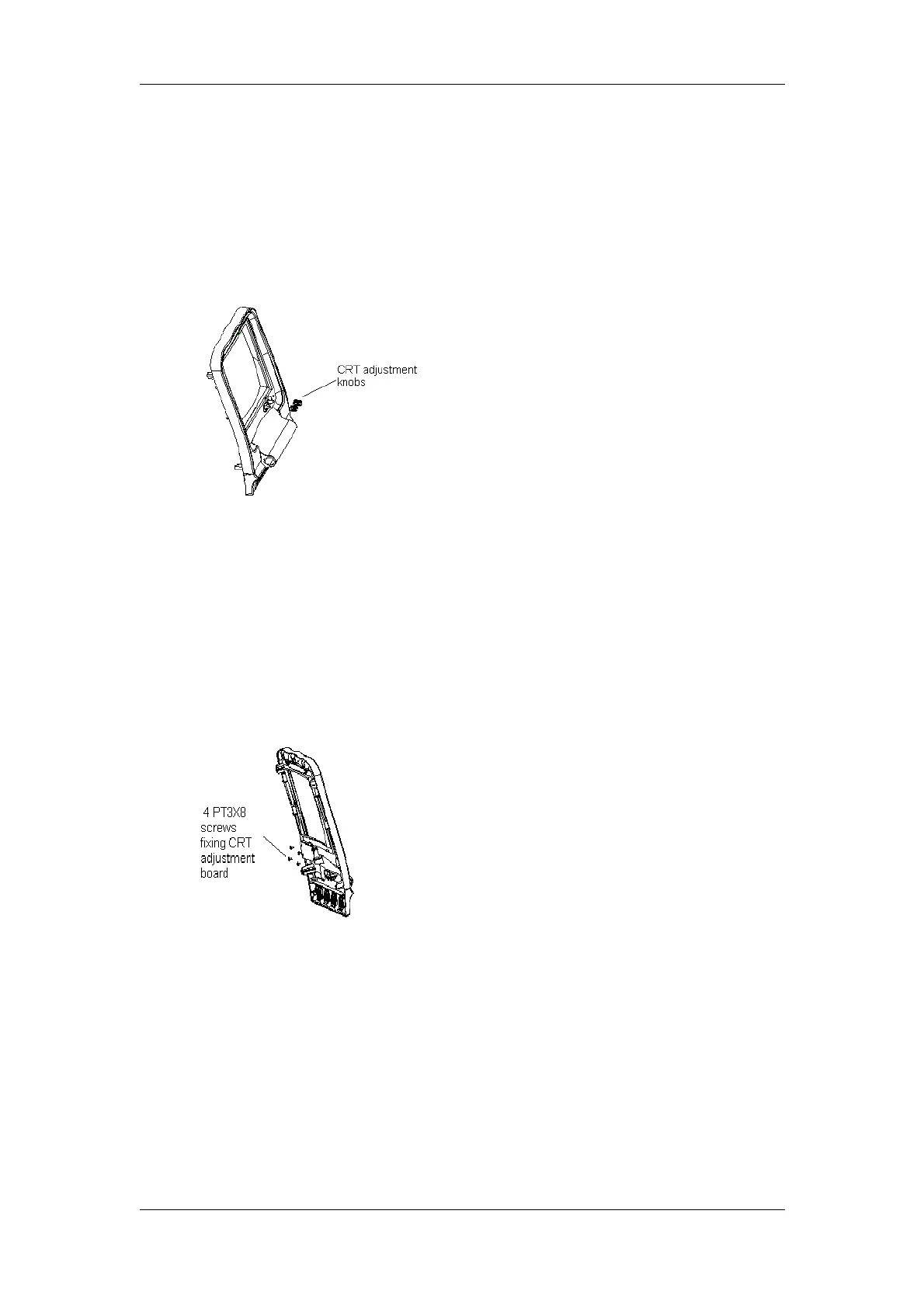

5. Remove CRT adjustment knobs and 4 PT3X8 screws fixing CRT adjustment
board, and then remove the CRT adjustment board;
DP-3300/DP-3200 Service Manual（V1.1） 2-19
