Part I Service Scenarios
Update 109
5.
Flat head screws with cross
recess (×3)
To fix the module to the main unit.
NOTE:
If you want to use U-Bank and Dual-Probe extend
module at the same time, please use theses screws to
fix the module.
Note:
Perform the plug and unplug of this module. To reduce the wastage of probe
module, the operation should be conducted under frozen status of the system.
If you use this module to connect a probe, the image quality may be degraded.
Only use the screws provided with the module, and do not mix different types
of screws.
After fixing the module using handle screws, fold the handles parallel to the
bottom of the main unit.

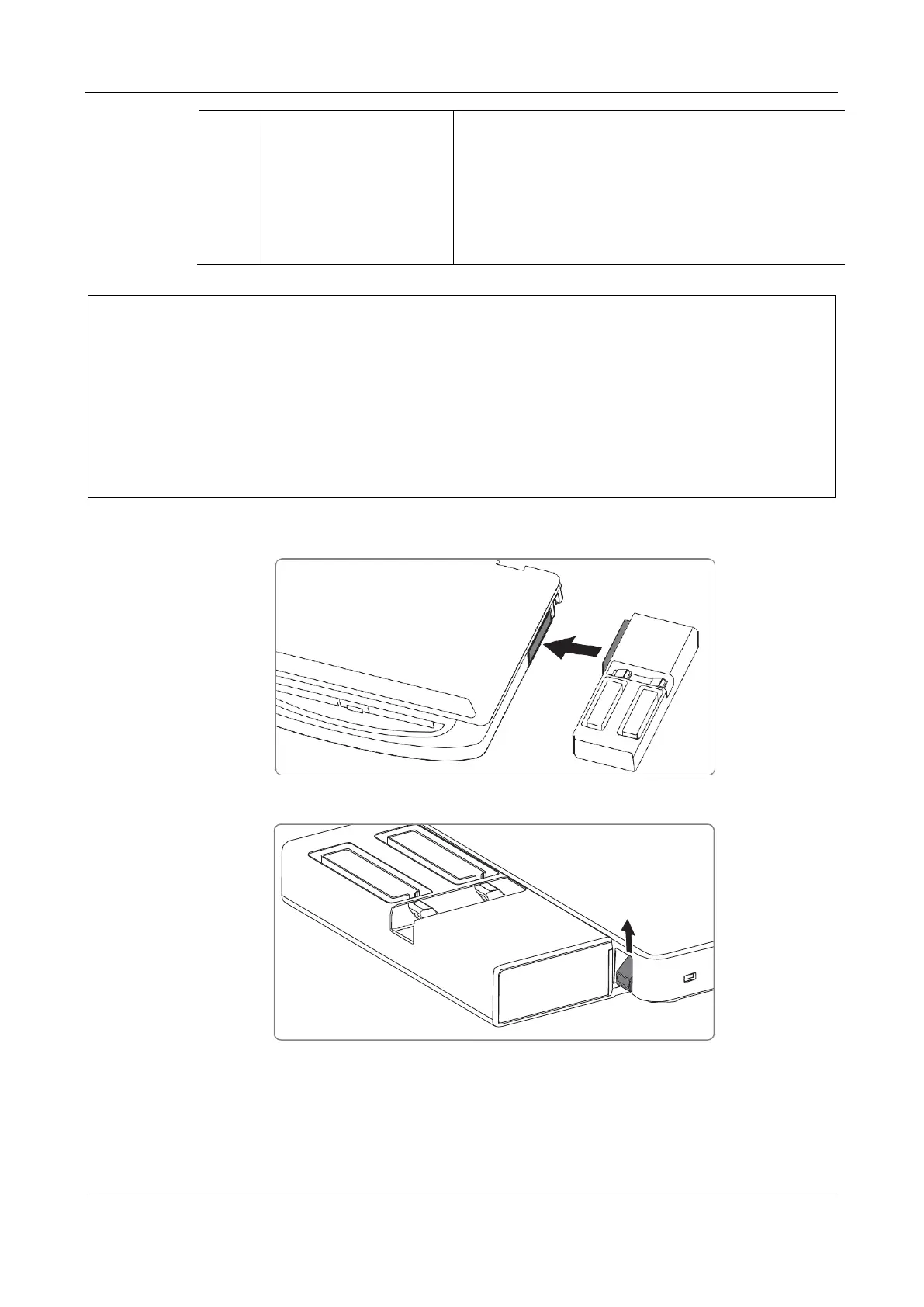

1. Insert the connector to the probe port of the main unit.
2. Toggle the locking lever of the main unit to the top position.
3. Use three screws with the same type only to fix the module to the main unit.
To Next Page
