Part II General Information

Structure and Assembly/Disassembly 175

5 Structure and Assembly/Disassembly

5.1 System Structure

5.1.1 Main Unit

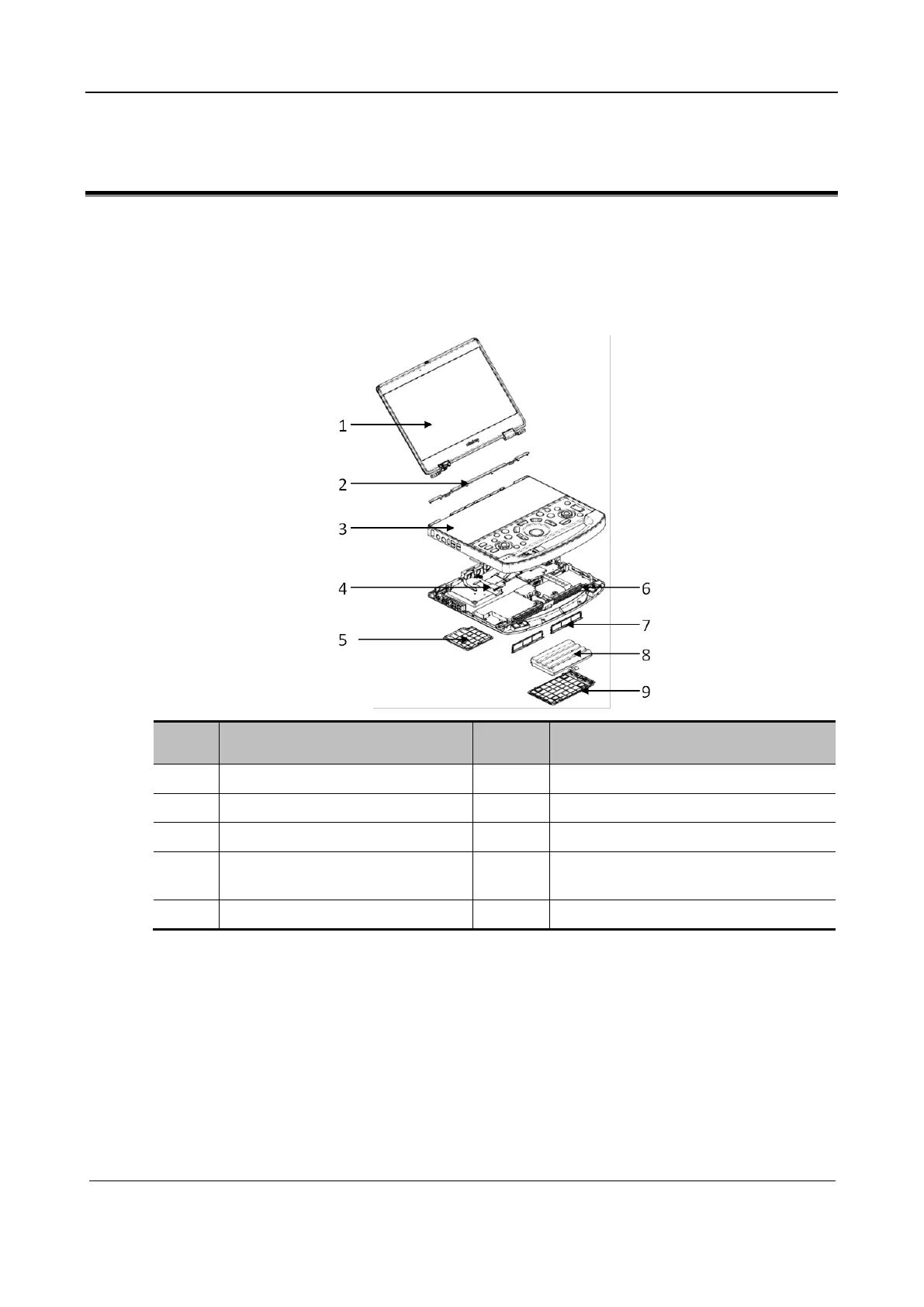

Figure 5-1 Explosive view of the main unit

No. Name No. Name

1 LCD 6 Equipment body

2 Spindle cover 7 Dustproof Net

3 Control panel 8 Li-ion battery

4 Control Panel to Main Board

Connecting Cable

9 Battery Chamber Cover

5 SSD cover plate

Default Chapter3
- Table of Contents3
Revision History6
Intellectual Property Statement7
Statement8
Warranty Statements9
Customer Service Department10
Conventions11
Safety12
- Meaning of Signal Words12
- Symbols12
- Warning Labels13
- General Symbols13
- Safety Precautions15
- Electric Safety16
- Mechanical Safety16
- Personnel Safety17
- Others17
