Part II General Information

Structure and Assembly/Disassembly 206

5.3.9 Disassembling the Gas Spring

1. Remove the control panel. For details, see 5.3.8.

2. Remove the shell of the outer column.

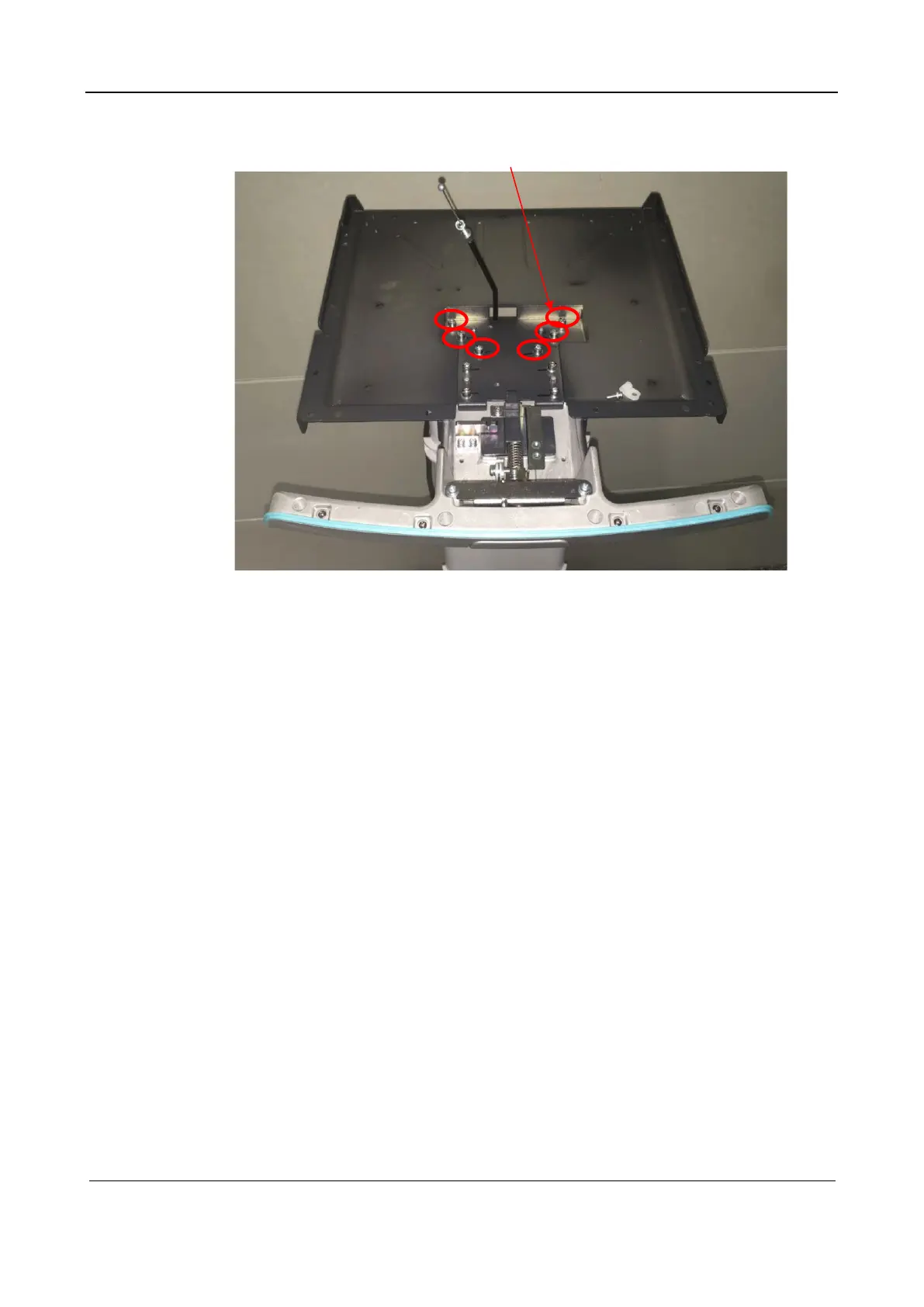

a Use an Allen wrench to remove the six M4X8 hex half-round head screws on the shell of the

outer column.

M5X16 hex socket

screw (6 pcs)
