Part II General Information
Structure and Assembly/Disassembly 208
c Remove the extender brackets.

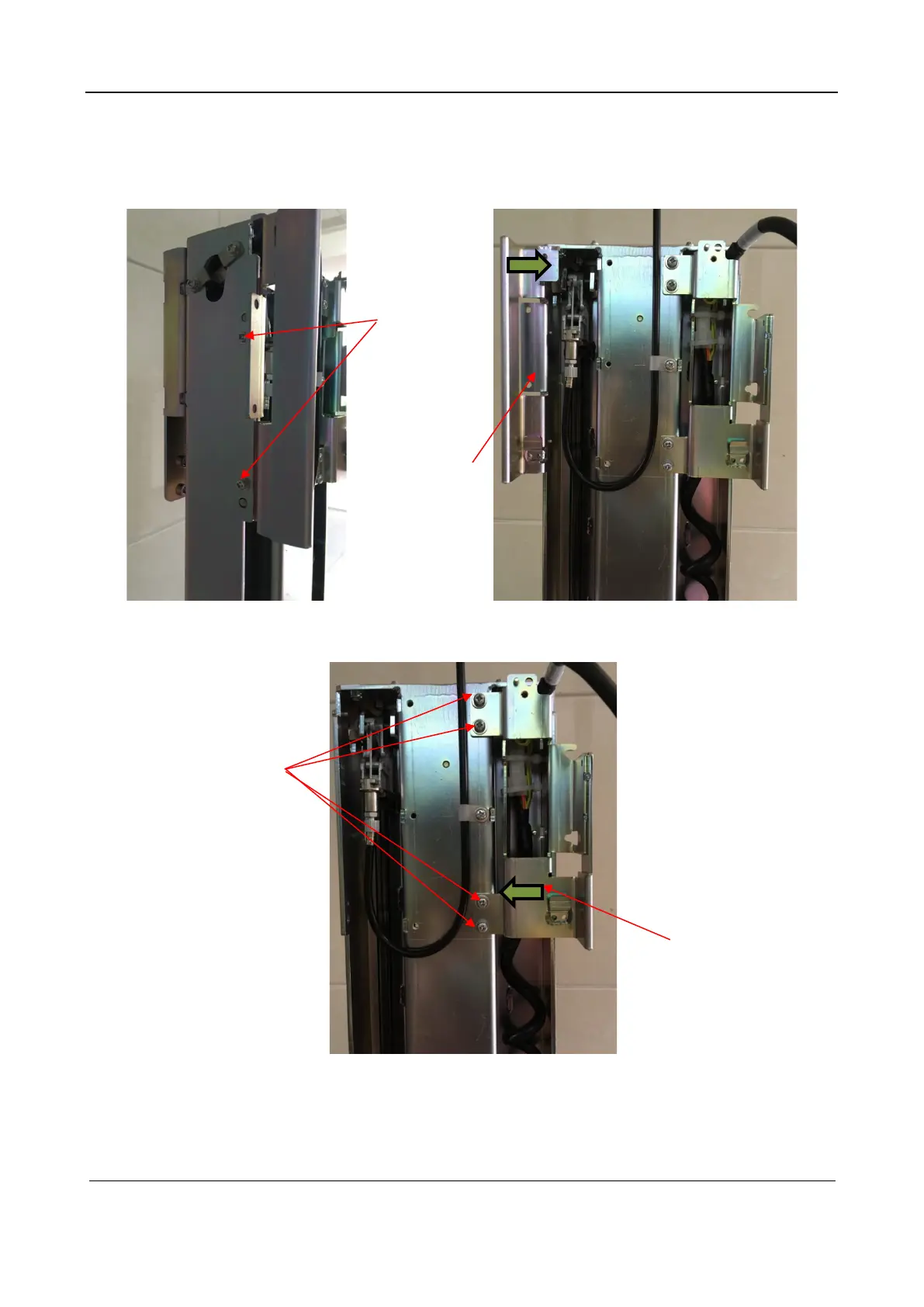

As shown in the following figure, first remove the two M3X8 cross recessed panhead screws
on the left side of the column for fastening the left extender bracket, and then push the left
extender bracket rightwards to take off it.
Remove the four M3X12 cross recessed panhead screws for fastening the right extender
bracket, and then push the right extender bracket leftwards to take off it.
d Remove the spring cable from the right extender bracket.
As shown in the following figure, cut the two cable ties, remove the M3X8 panhead screw
(ground screw), and then drag out the spring cable from the slot of the right extender bracket
based on the direction indicated in the figure.
Left extender
bracket
M3X8 cross
recessed panhead
screw
Right extender
bracket
M4X12 cross recessed
panhead screw
To Next Page
