Part II General Information
Structure and Assembly/Disassembly 217

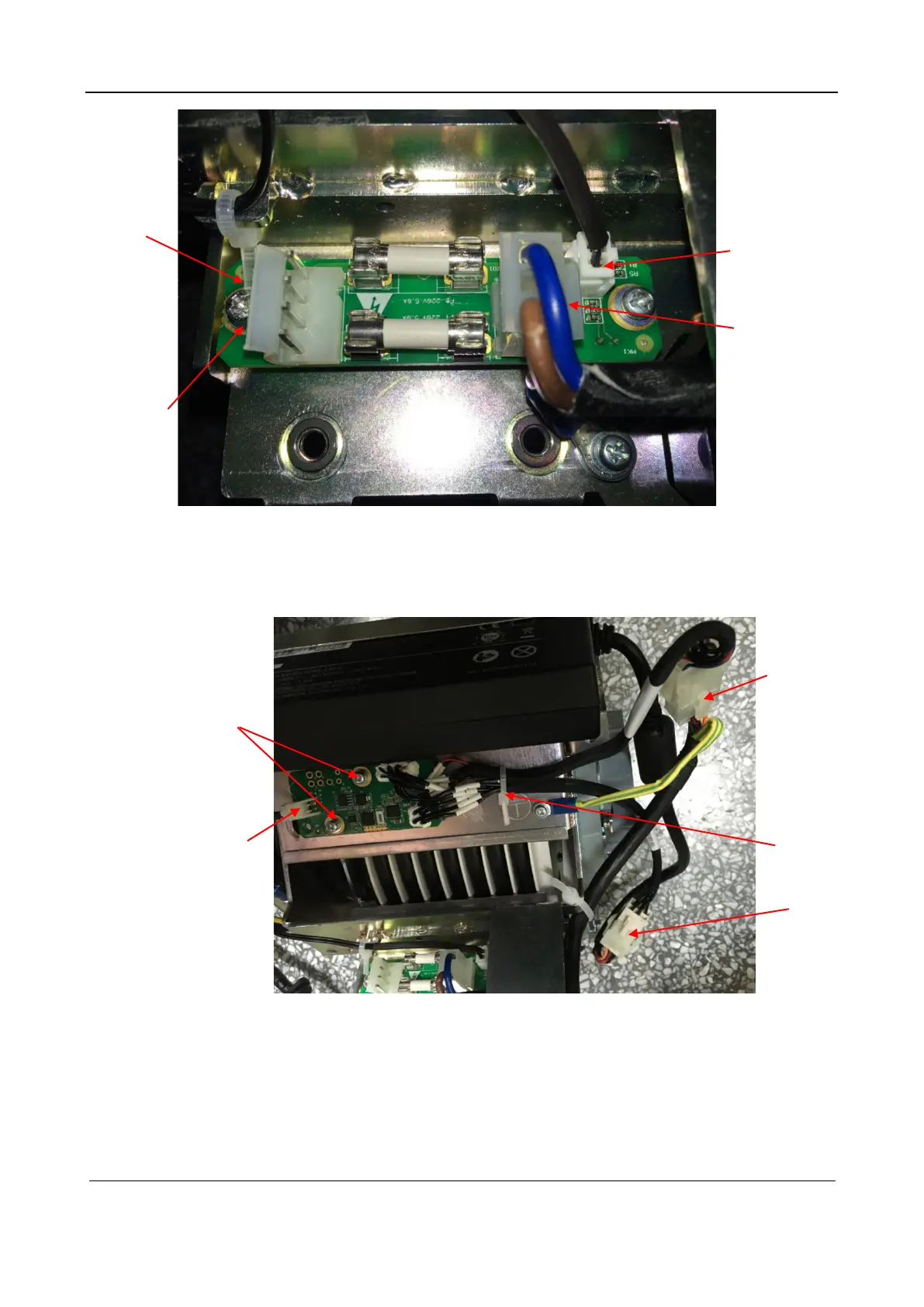

2. Remove the output control board.
Remove the 2-pin plug from the board, and then the two interconnection cable terminals (8-pin and
10-pin). Cut the cable tie using the cable cutter, remove the two M3X8 cross recessed panhead
screws for fixing the board, and take off the output control board.
5.3.12 Caster
Lock the four casters of the trolley and put down the trolley. Insert a custom hex wrench into the gap
between the caster and the base, remove the nut for fixing the caster, and take off the caster.
Protection and
indicator board
M3X8 cross
recessed panhead
screw (2 pcs)
2-pin plug
4-pin plug
8-pin plug
4-pin plug
Cable tie 2-pin plug
M3X8 cross
recessed panhead
screw (2 pcs)
